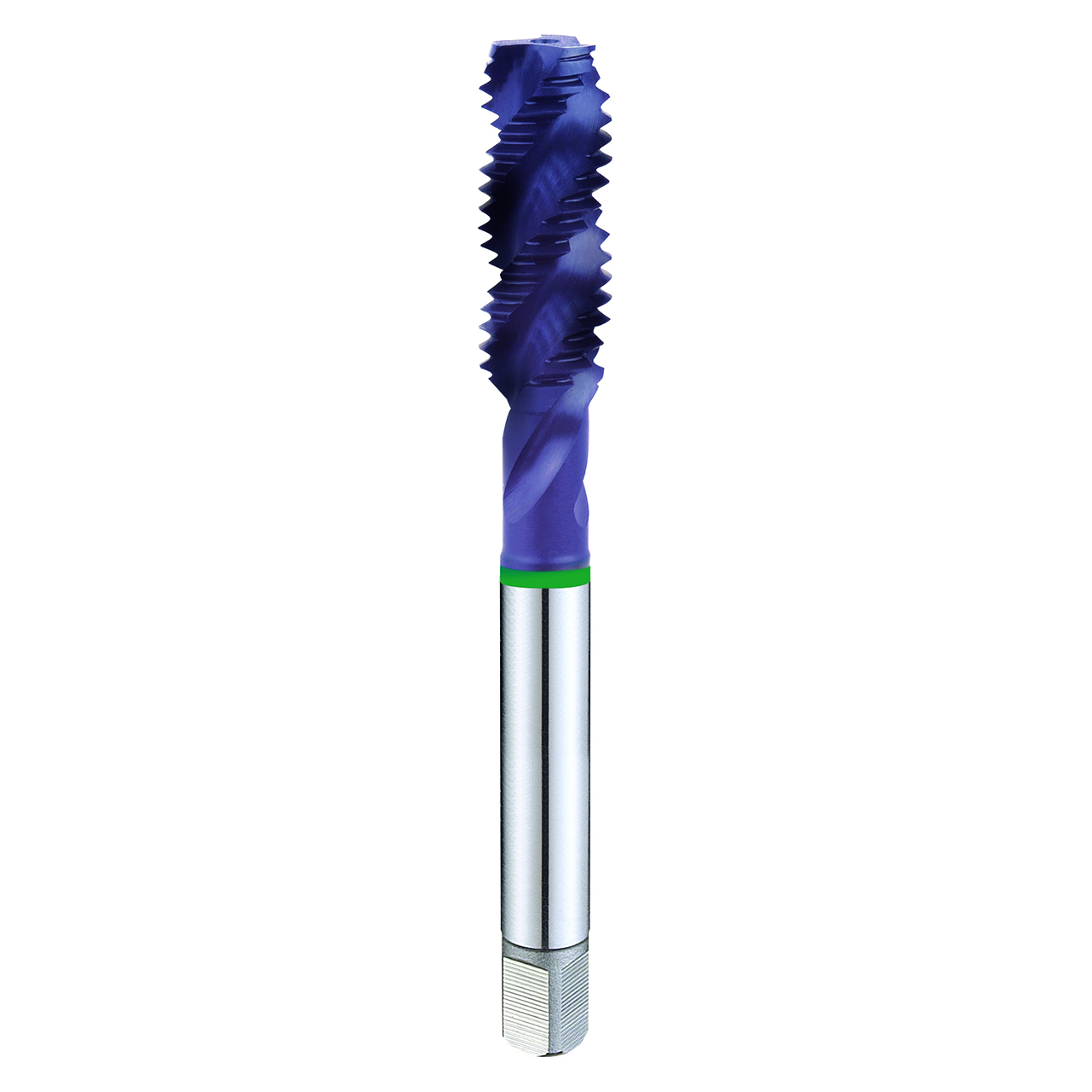

YG1 TCD657S | M18x2.5 Size 0.7087" Diameter x 0.5420" Shank x 4.0300" OAL 3 Flute Oxide Coated HSS-EX Spiral Flute Bottom Tap

$69.70
SKU:
15013003
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberTCD657S
Size & PitchM18x2.5
Diameter (Decimal Inch)0.7087"
Diameter (mm)18.00mm
Overall Length (Decimal Inch)4.0300"
Length/Diameter2.5xD
Chamfer TypeModified Bottoming
Overall Length (mm)102.36mm
Thread Length (Decimal Inch)0.7870"
Thread Length (mm)19.99mm
Square Length (Decimal Inch)0.6300"
Square Length (mm)16.00mm
Shank Diameter (Decimal Inch)0.5420"
Shank Diameter (mm)13.77mm
Square Size (Decimal Inch)0.4060"
Square Size (mm)10.31mm
Neck Diameter (Decimal Inch)0.5300"
Connection (mm)13.77 x 10.31mm
Connection (Decimal Inch)0.542 x 0.406"
Useable Length (Decimal Inch)2.2050"
Neck Diameter (mm)13.46mm
Drill Size (Decimal Inch)0.6192"
Drill Size (mm)15.73mm
Useable Length (mm)56.01mm
Thread SeriesM
Pitch LimitD7
Chamfer Length2P-3P
FinishOxide
Blank Standard302A
Helix Angle (Degree)45 Degree
Number of Flutes3
Tap TypeSPFL
Shank TypeSquare
Coolant ThroughNo
Ring ColorGreen
Trade NameCombo Tap INOX
SeriesTCD-S
MaterialHSS-EX
Product TypeSpiral Flute Bottom Tap
