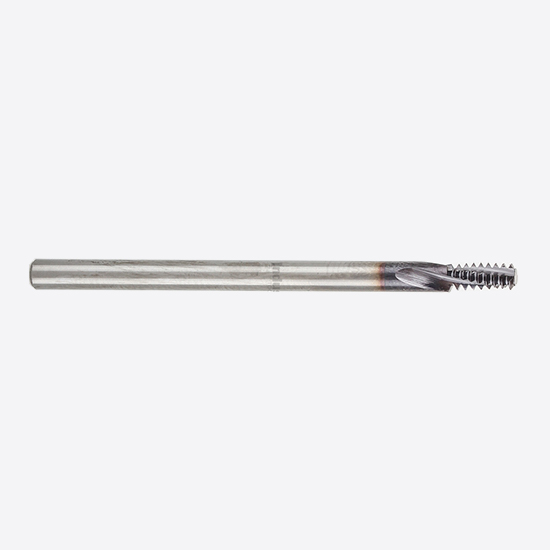

YG1 TE340 | #10-32 Helical Flute Solid Carbide Thread Mill 60 Degree TiAlN Coated

$136.11 $98.00
(You save $38.11)
Ships:
From Partner Facility
Brand:
YG1
Threads Per Inch:
32
Material:
Solid Carbide
Shank Diameter (Decimal Inch):
0.1250"
Number of Flutes:
3
Cutter Diameter (Decimal Inch):
0.1200"
Length of Cut (Decimal Inch):
0.3120"
Finish/Coating:
TiAlN
Through Coolant:
No
Ships:
From Partner Facility
SKU:
15000306
UPC:
650229429221
Weight:
0.07 LBS
Shipping:
Free Shipping
YG1 TE340 | #10-32 Helical Flute Solid Carbide Thread Mill 60 Degree TiAlN Coated

Features

  • Manufacturer Part # TE340
  • Weight: 0.07 lbs
  • Solid carbide thread mills with 60 Degree helical flute, TiAlN coated for unified internal threads - ANSI B 1.1
  • Plain straight shank and 15 Degree spiral angle
  • Specifications: size: 10-32, pitch: 32 TPI, cutter diameter: 0.12", shank diameter: 0.125", length of cut: 0.312", overall length: 2", flutes: 3
  • TiAlN coated for improved performance and tool life in harder materials or high temperature applications
