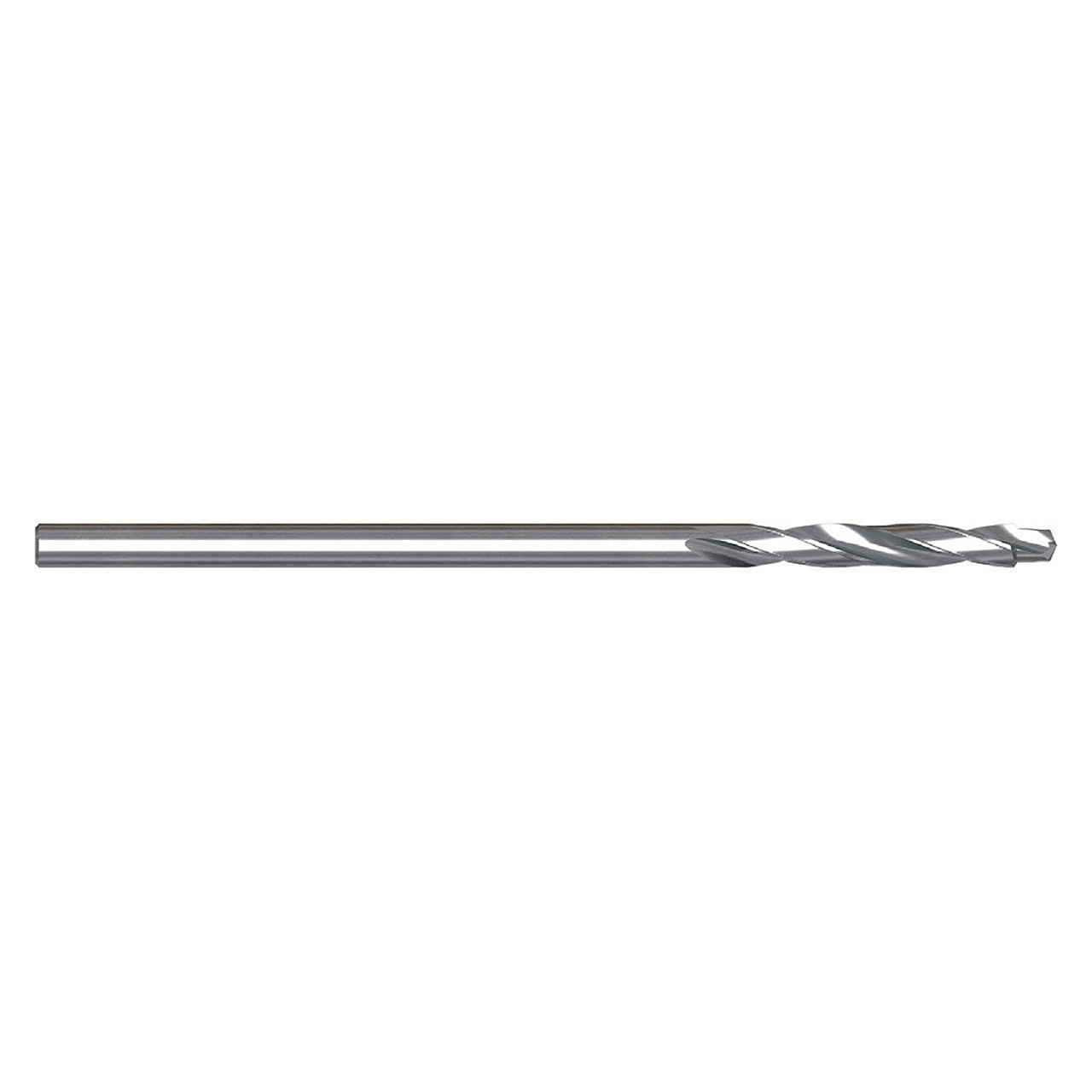

Optimized for drilling composite/metal stacks with pre-drilled pilot holes. Special geometry for superior performance, delamination-free drilling and burless operation YG-1 special CVD coating.
Features:
Product Specifications
| Manufacturer Part Number | UDM5A2AA0600 |
| Drill Diameter (Inch) | 13/55" |
| Drill Diameter (Decimal Inch) | 0.2362" |
| Drill Diameter (mm) | 6.00mm |
| Pilot Diameter (Inch) | 17/90" |
| Pilot Diameter (Decimal Inch) | 0.1890" |
| Pilot Diameter (mm) | 4.80mm |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Flute Length (Inch) | 1-23/40" |
| Flute Length (Decimal Inch) | 1.5748" |
| Flute Length (mm) | 40.00mm |
| Overall Length (Inch) | 5-48/53" |
| Overall Length (Decimal Inch) | 5.9055" |
| Overall Length (mm) | 150.00mm |
| Number of Flutes | 2 |
| Series | UDM5A2AA |
| Point Angle | 135 Degree |
| Shank Type | Plain |
| Application | CFRP-Carbon Fiber Reinforced Plastics/CFRP-Aluminum stacks/CFRP-Titanium Stacks/GFRP |
| Machine | Hand Held |
| Operation | Drilling |
