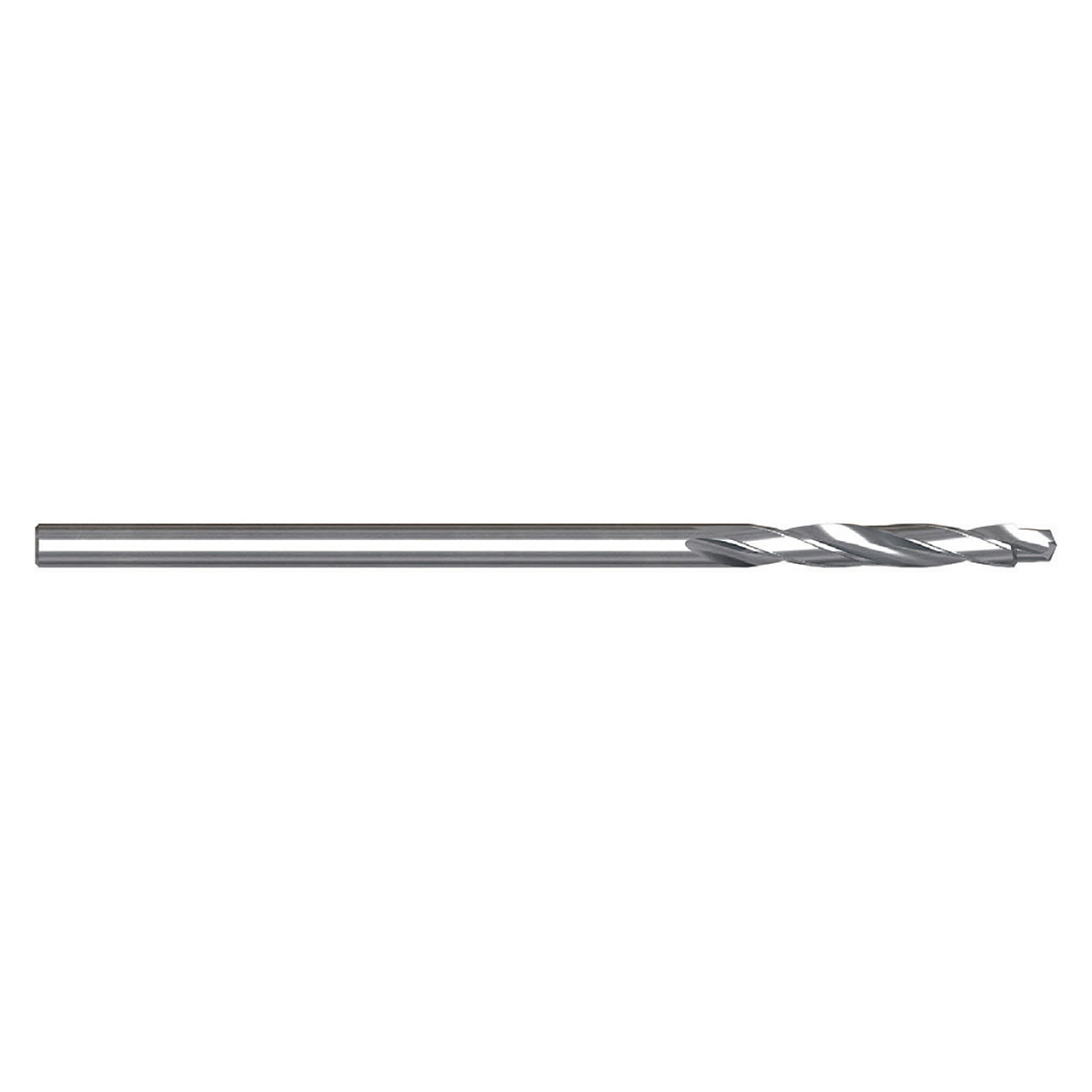

Optimized for drilling composite/metal stacks with pre-drilled pilot holes. Special geometry for superior performance, delamination-free drilling and burless operation YG-1 special CVD coating.
Features:
Product Specifications
| Manufacturer Part Number | UDM5A2AA0800 |
| Drill Diameter (Inch) | 23/73" |
| Drill Diameter (Decimal Inch) | 0.3150" |
| Drill Diameter (mm) | 8.00mm |
| Pilot Diameter (Inch) | 1/4" |
| Pilot Diameter (Decimal Inch) | 0.2520" |
| Pilot Diameter (mm) | 6.40mm |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (mm) | 8.00mm |
| Flute Length (Inch) | 1-31/32" |
| Flute Length (Decimal Inch) | 1.9685" |
| Flute Length (mm) | 50.00mm |
| Overall Length (Inch) | 5-48/53" |
| Overall Length (Decimal Inch) | 5.9055" |
| Overall Length (mm) | 150.00mm |
| Number of Flutes | 2 |
| Series | UDM5A2AA |
| Point Angle | 135 Degree |
| Shank Type | Plain |
| Application | CFRP-Carbon Fiber Reinforced Plastics/CFRP-Aluminum stacks/CFRP-Titanium Stacks/GFRP |
| Machine | Hand Held |
| Operation | Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
YG1
Reamer Diameter (Inch):
23/73"
Reamer Diameter (Decimal Inch):
0.3150"
Reamer Diameter (mm):
8.00mm
Flute Length (Inch):
1-31/32"
Flute Length (Decimal Inch):
1.9685"
Flute Length (mm):
50.00mm
Shank Type:
Plain
Material:
Micron Grain Carbide
interval quantity:
1
