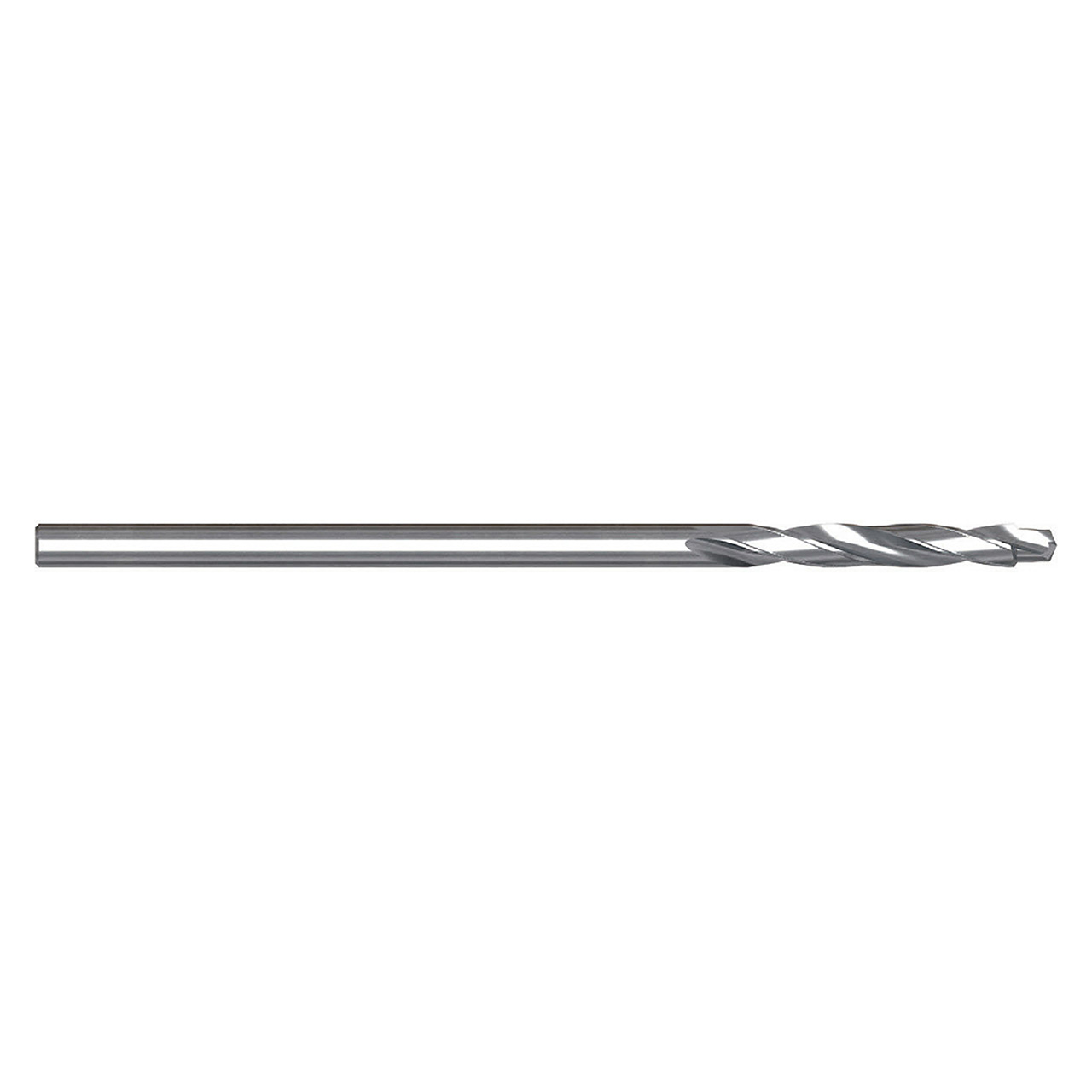

Optimized for drilling composite/metal stacks with pre-drilled pilot holes. Special geometry for superior performance, delamination-free drilling and burless operation YG-1 special CVD coating.
Features:
Product Specifications
| Manufacturer Part Number | UDM5A2AA1200 |
| Drill Diameter (Inch) | 43/91" |
| Drill Diameter (Decimal Inch) | 0.4724" |
| Drill Diameter (mm) | 12.00mm |
| Pilot Diameter (Inch) | 17/45" |
| Pilot Diameter (Decimal Inch) | 0.3780" |
| Pilot Diameter (mm) | 9.60mm |
| Shank Diameter (Inch) | 43/91" |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Shank Diameter (mm) | 12.00mm |
| Flute Length (Inch) | 1-31/32" |
| Flute Length (Decimal Inch) | 1.9685" |
| Flute Length (mm) | 50.00mm |
| Overall Length (Inch) | 5-48/53" |
| Overall Length (Decimal Inch) | 5.9055" |
| Overall Length (mm) | 150.00mm |
| Number of Flutes | 2 |
| Series | UDM5A2AA |
| Point Angle | 135 Degree |
| Shank Type | Plain |
| Application | CFRP-Carbon Fiber Reinforced Plastics/CFRP-Aluminum stacks/CFRP-Titanium Stacks/GFRP |
| Machine | Hand Held |
| Operation | Drilling |
