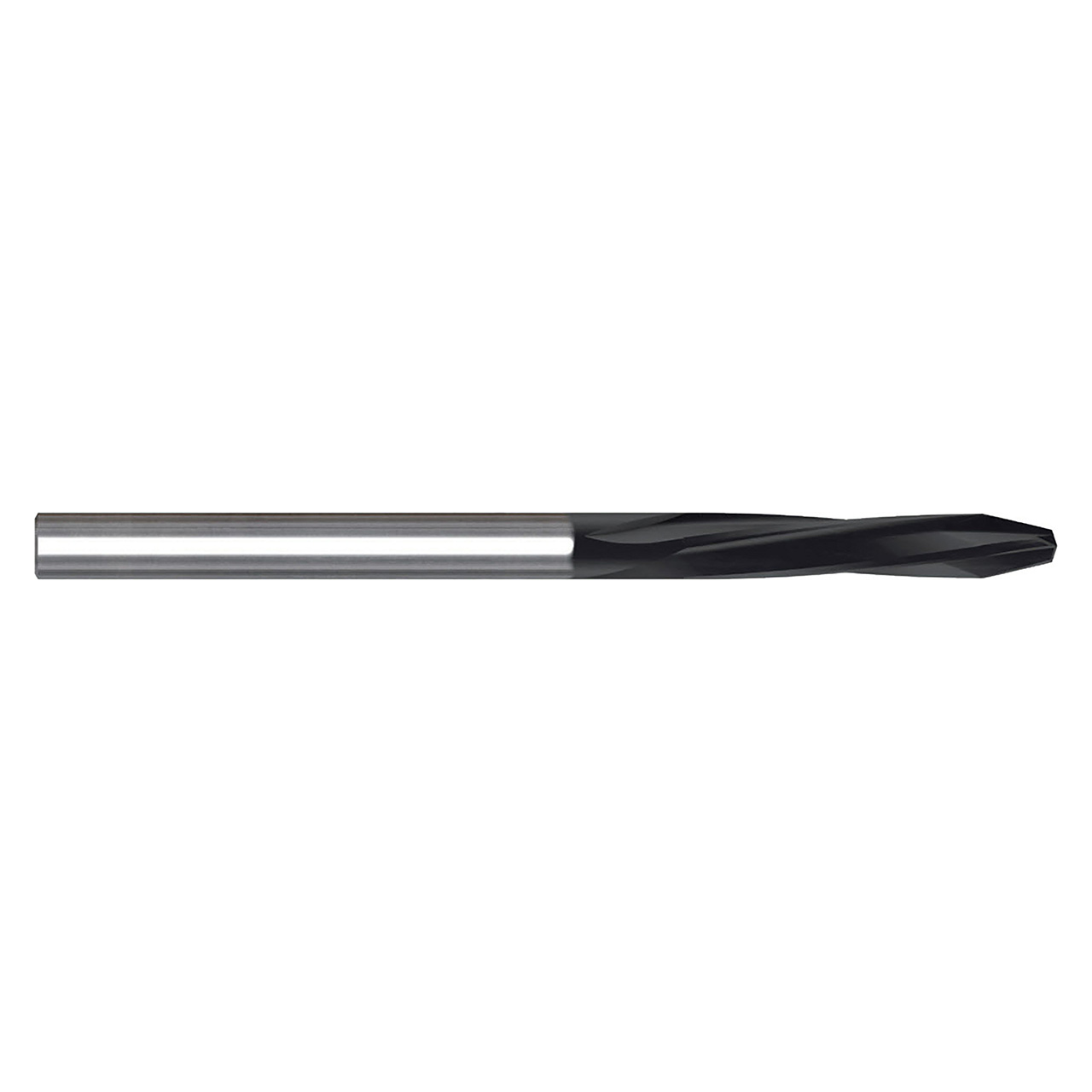

Drill ream process in one shot suitable for hand-held tools Low pressure when feeding with the tool. H6 shank tolerance for high precision tool holders. YG-1 special CVD coating for extended tool life and better abrasion resistance.
Features:
Product Specifications
| Manufacturer Part Number | UDM5P2AC0800 |
| Drill Diameter (Inch) | 23/73" |
| Drill Diameter (Decimal Inch) | 0.3150" |
| Drill Diameter (mm) | 8.00mm |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (mm) | 8.00mm |
| Flute Length (Inch) | 1-31/32" |
| Flute Length (Decimal Inch) | 1.9685" |
| Flute Length (mm) | 50.00mm |
| Overall Length (Inch) | 5-48/53" |
| Overall Length (Decimal Inch) | 5.9055" |
| Overall Length (mm) | 150.00mm |
| Number of Flutes | 4 |
| Series | UDM5P2AC |
| Point Angle | 118 Degree |
| Shank Type | Plain |
| Application | CFRP/GFRP |
| Machine | Hand Held |
| Operation | Drilling |
