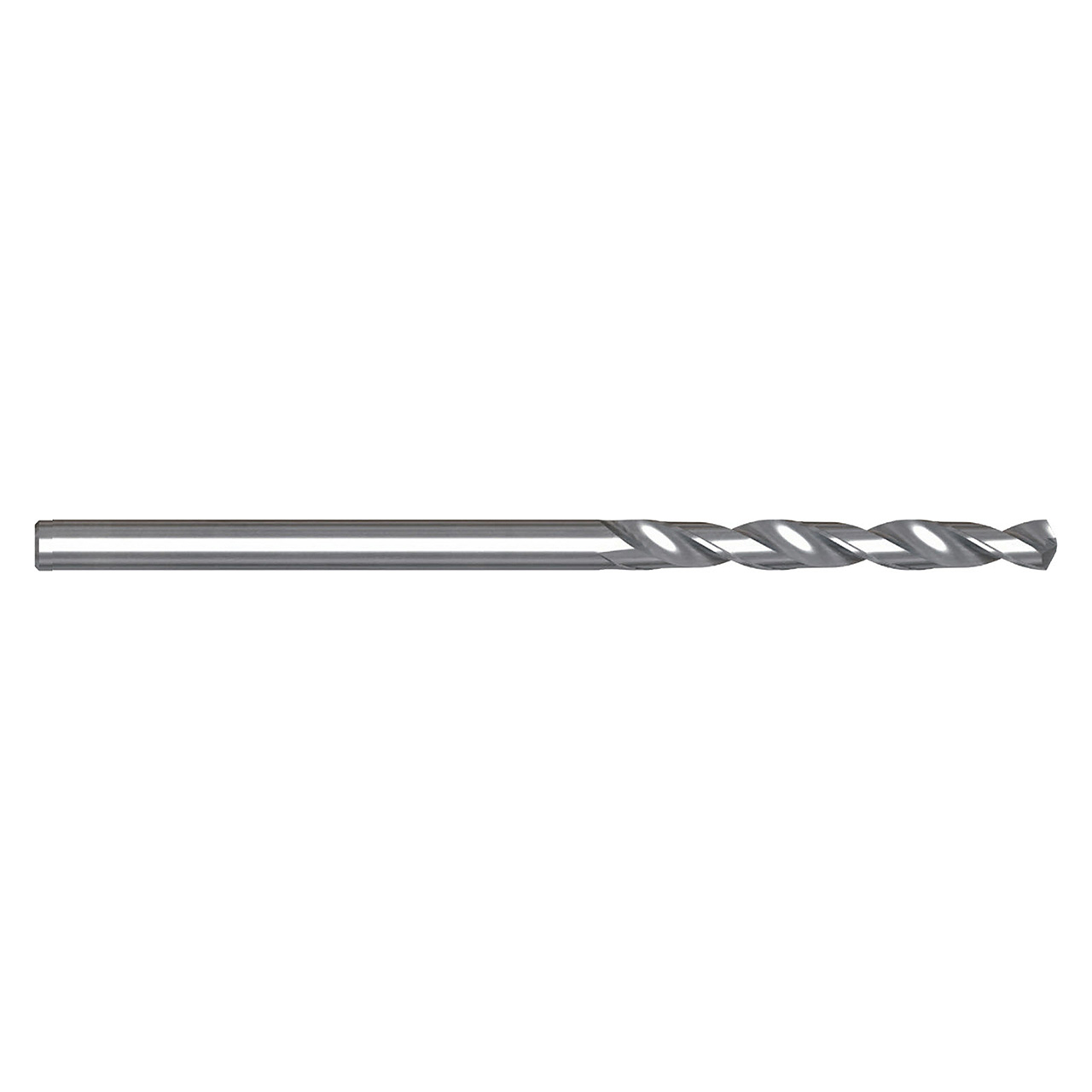

Special geometry for dry or MQL drilling of CFRP/AL stacks YG-1 special CVD coating.
Features:
Product Specifications
| Manufacturer Part Number | UDR5A1AB0375 |
| Drill Diameter (Inch) | 3/8" |
| Drill Diameter (Decimal Inch) | 0.3750" |
| Drill Diameter (mm) | 9.53mm |
| Shank Diameter (Inch) | 37/94" |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (mm) | 10.00mm |
| Flute Length (Inch) | 2-2/5" |
| Flute Length (Decimal Inch) | 2.4016" |
| Flute Length (mm) | 61.00mm |
| Overall Length (Inch) | 4-1/18" |
| Overall Length (Decimal Inch) | 4.0551" |
| Overall Length (mm) | 103.00mm |
| Number of Flutes | 2 |
| Series | UDR5A1AB |
| Point Angle | 125 Degree |
| Shank Type | Plain |
| Application | CFRP/AL/CFRP |
| Machine | CNC Ganty, Robot End-Effectors |
| Operation | Drilling |
