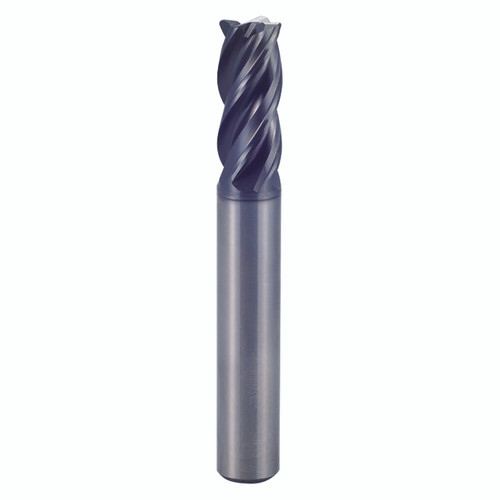

YG1 UGMF70998 | 0.5000" Diameter x 0.5000" Shank x 0.6250" LOC x 2.5000" OAL x 0.0900" Radius 4 Flute Y-Coated Carbide Corner Radius End Mill

$54.35
SKU:
25054802
Weight:
0.24 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberUGMF70998
Diameter (Inch)1/2"
Diameter (Decimal Inch)0.5000"
Diameter (mm)12.70mm
Shank Diameter (Inch)1/2"
Shank Diameter (Decimal Inch)0.5000"
Shank Diameter (mm)12.70mm
Length of Cut (Inch)5/8"
Length of Cut (Decimal Inch)0.6250"
Length of Cut (mm)15.88mm
Overall Length (Inch)2-1/2"
Overall Length (Decimal Inch)2.5000"
Overall Length (mm)63.50mm
Corner Radius (Inch)1/11"
Corner Radius (Decimal Inch)0.0900"
Corner Radius (mm)2.29mm
Number of Flutes4
Helix AngleVariable
SeriesUGMF70
Shank StylePlain
CoatingY-Coated
MaterialCarbide
Cut TypeCenter
Cutting DirectionRight
Length TypeStandard Length
ApplicationP, M, K, S
