Product Specifications

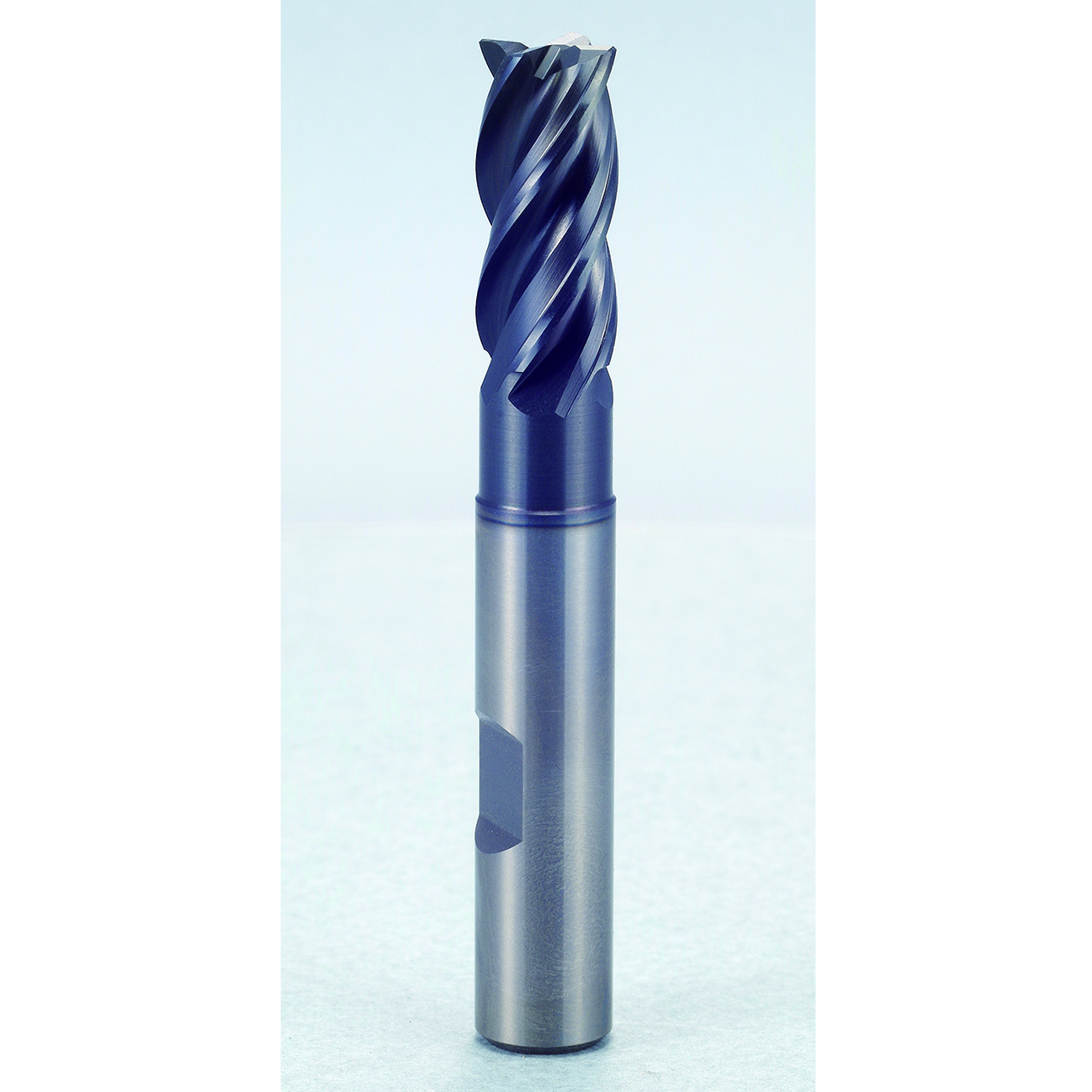

| Manufacturer Part Number | UGMF73908 |
| Diameter (Inch) | 5/8" |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Inch) | 6" |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (mm) | 152.40mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | UGMF73 |
| Shank Style | Flat |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Extended Length |
| Application | P, M, K, S |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Diameter (Decimal Inch):
0.6250"
Diameter (Inch):
5/8"
Diameter (mm):
15.88mm
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (Inch):
5/8"
Shank Diameter (mm):
15.88mm
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Overall Length (Decimal Inch):
6.0000"
Overall Length (Inch):
6"
Overall Length (mm):
152.40mm
Number of Flutes:
4
Shank Style:
Flat
Finish/Coating:
Y-Coating
Material:
Carbide
Cut Type:
Center
Cutting Direction:
Right
interval quantity:
1
