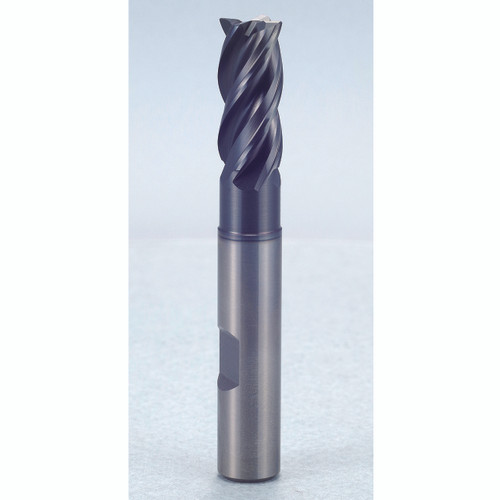

YG1 UGMF75906 | 0.5000" Diameter x 0.5000" Shank x 0.6250" LOC x 6.0000" OAL x 0.0300" Radius 4 Flute Y-Coated Carbide Corner Radius End Mill

$118.09
SKU:
25054075
Weight:
0.56 LBS
Shipping:
Free Shipping

Product Specifications
Manufacturer Part NumberUGMF75906
Diameter (Inch)1/2"
Diameter (Decimal Inch)0.5000"
Diameter (mm)12.70mm
Shank Diameter (Inch)1/2"
Shank Diameter (Decimal Inch)0.5000"
Shank Diameter (mm)12.70mm
Length of Cut (Inch)5/8"
Length of Cut (Decimal Inch)0.6250"
Length of Cut (mm)15.88mm
Overall Length (Inch)6"
Overall Length (Decimal Inch)6.0000"
Overall Length (mm)152.40mm
Corner Radius (Inch)2/67"
Corner Radius (Decimal Inch)0.0300"
Corner Radius (mm)0.76mm
Number of Flutes4
Helix AngleVariable
SeriesUGMF75
Shank StyleFlat
CoatingY-Coated
MaterialCarbide
Cut TypeCenter
Cutting DirectionRight
Length TypeExtended Length
ApplicationP, M, K, S
