Product Specifications

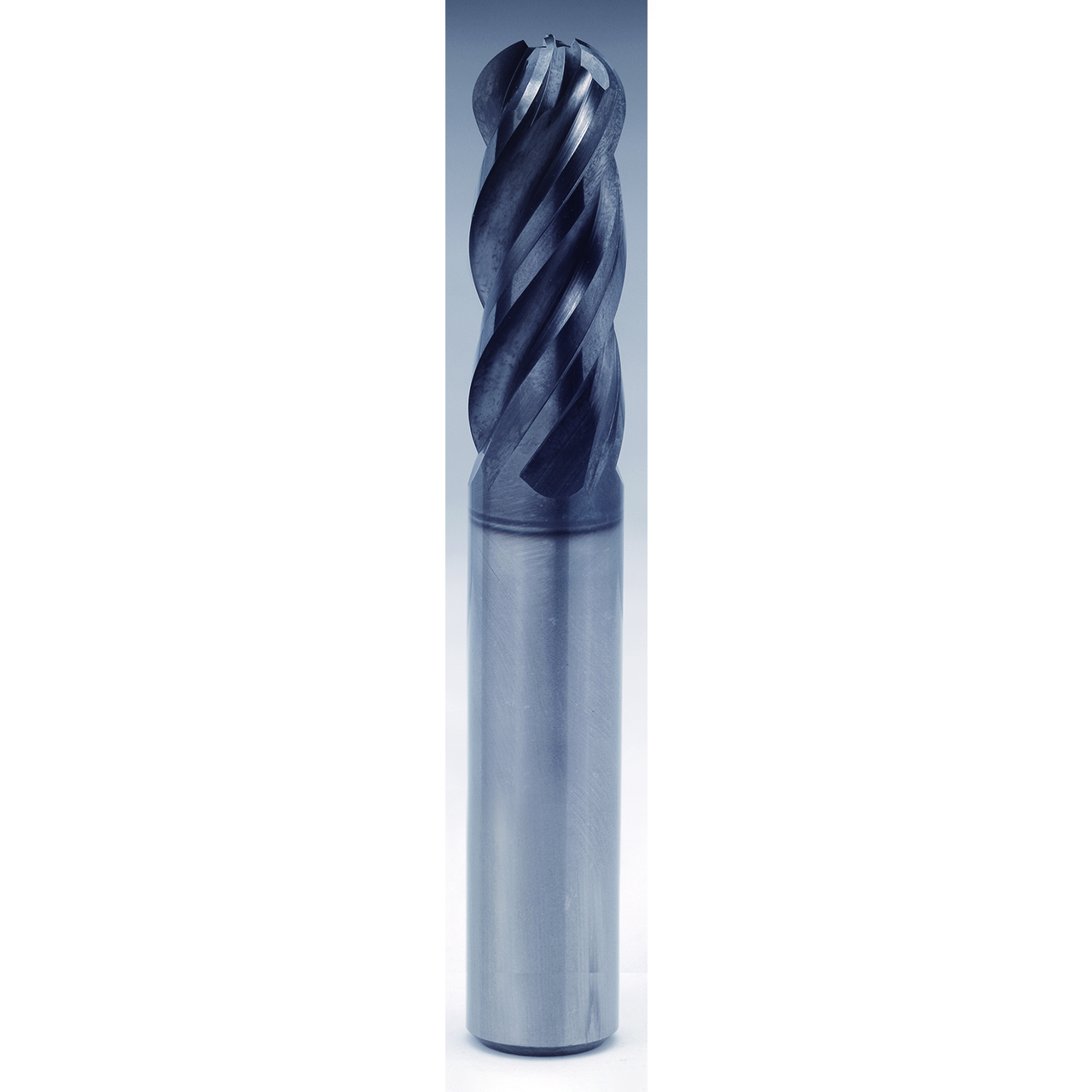

| Manufacturer Part Number | UGMG53920 |
| Diameter (Inch) | 7/16" |
| Diameter (Decimal Inch) | 0.4375" |
| Diameter (mm) | 11.11mm |
| Shank Diameter (Inch) | 7/16" |
| Shank Diameter (Decimal Inch) | 0.4375" |
| Shank Diameter (mm) | 11.11mm |
| Length of Cut (Inch) | 7/8" |
| Length of Cut (Decimal Inch) | 0.8750" |
| Length of Cut (mm) | 22.23mm |
| Overall Length (Inch) | 2-3/4" |
| Overall Length (Decimal Inch) | 2.7500" |
| Overall Length (mm) | 69.85mm |
| Ball Nose Radius (Inch) | 7/32" |
| Ball Nose Radius (Decimal Inch) | 0.2188" |
| Ball Nose Radius (mm) | 5.56mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | UGMG53 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, K, S |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
7/16"
Mill Diameter (Decimal Inch):
0.4375"
Mill Diameter (mm):
11.11mm
Number of Flutes:
4
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Material:
Carbide
Shank Type:
Plain
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7500"
Overall Length (mm):
69.85mm
Shank Diameter (Inch):
7/16"
Shank Diameter (Decimal Inch):
0.4375"
Shank Diameter (mm):
11.11mm
Finish/Coating:
Y-Coated
Cutting Direction:
Right
Helix Angle:
Variable
Application:
P, M, K, S
