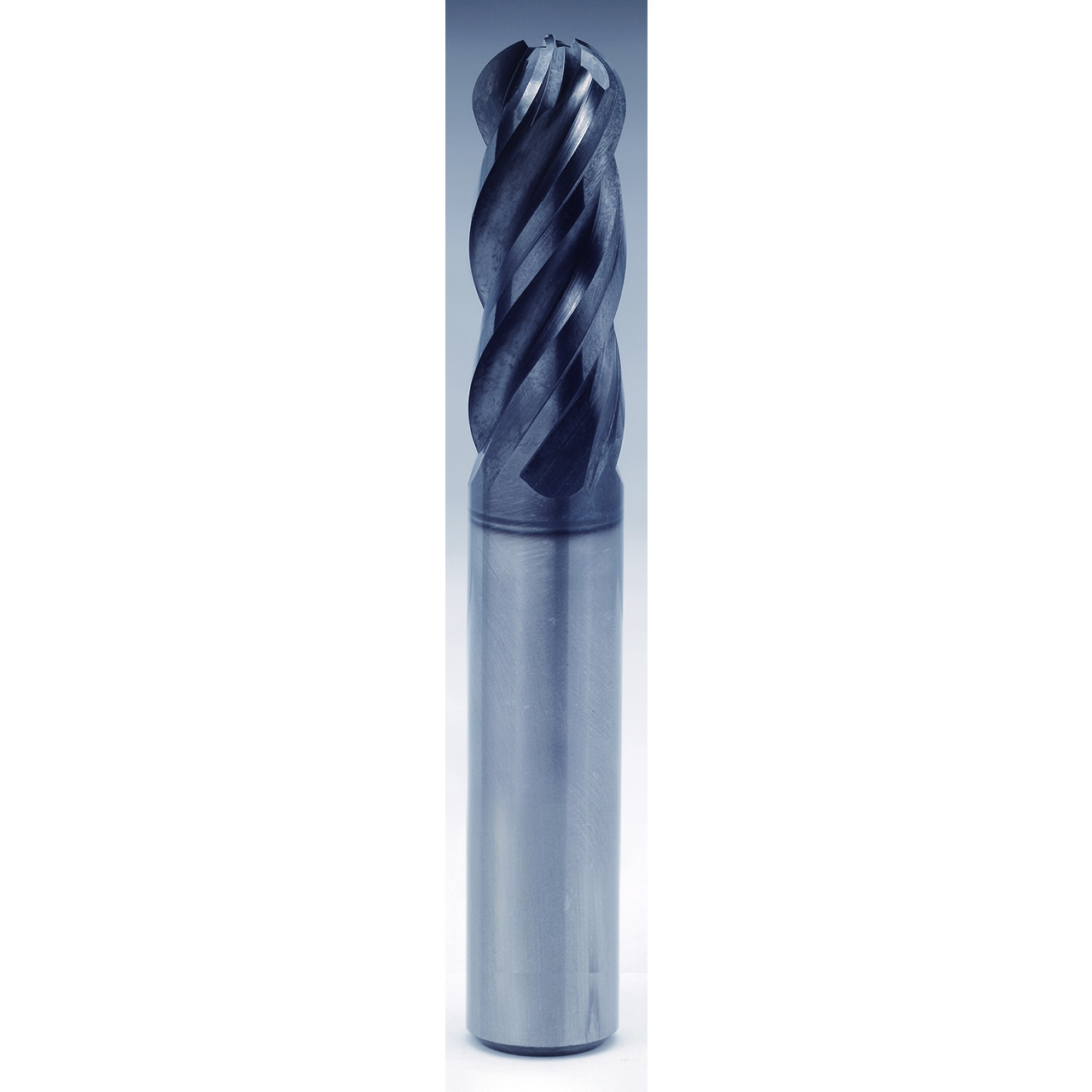

Product Specifications
| Manufacturer Part Number | UGMG53S906 |
| Diameter (Inch) | 3/16" |
| Diameter (Decimal Inch) | 0.1875" |
| Diameter (mm) | 4.76mm |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Ball Nose Radius (Inch) | 3/32" |
| Ball Nose Radius (Decimal Inch) | 0.0938" |
| Ball Nose Radius (mm) | 2.38mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | UGMG53 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, K, S |
