Product Specifications

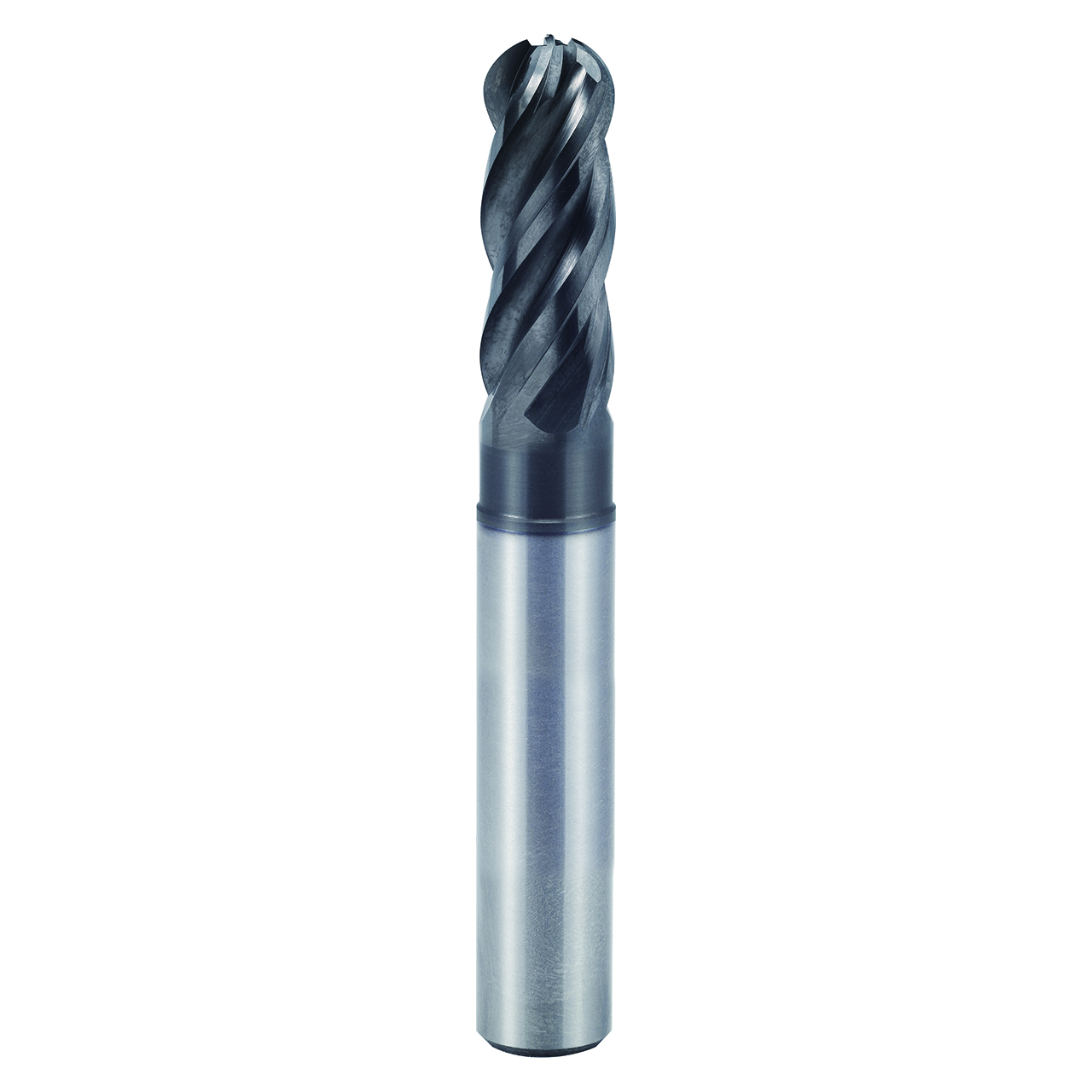

| Manufacturer Part Number | UGMH10016 |
| Diameter (Inch) | 1/4" |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 3/8" |
| Length of Cut (Decimal Inch) | 0.3750" |
| Length of Cut (mm) | 9.53mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Ball Nose Radius (Inch) | 1/8" |
| Ball Nose Radius (Decimal Inch) | 0.1250" |
| Ball Nose Radius (mm) | 3.18mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | UGMH10 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Extended Length |
| Application | P, M, K, S |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
4
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Material:
Carbide
Shank Type:
Plain
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
Y-Coated
Cutting Direction:
Right
Helix Angle:
Variable
Application:
P, M, K, S
