Product Specifications
| Manufacturer Part Number | VB040 |
| Body Diameter 1 (Inch) | 1-3/10" |
| Body Diameter 1 (Decimal Inch) | 1.2992" |
| Body Diameter 1 (mm) | 33.00mm |
| Body Diameter 2 (Inch) | 1-17/26" |
| Body Diameter 2 (Decimal Inch) | 1.6535" |
| Body Diameter 2 (mm) | 42.00mm |
| Connection Work Side (Decimal Inch) | 0.750" |
| Connection Work Side (Inch) | 3/4" |
| Connect Work Side (mm) | 19.05mm |
| Gage Length (Decimal Inch) | 3.150" |
| LPR (Inch) | 3-3/20" |
| LPR (mm) | 8.00mm |
| Overall Length (Inch) | 5-41/49" |
| Overall Length (Decimal Inch) | 5.8366" |
| Overall Length (mm) | 148.25mm |
| Body Length (Inch) | 2-2/5" |
| Body Length (Decimal Inch) | 2.3996" |
| Body Length (mm) | 60.95mm |
| Clamping Length (Inch) | 1-17/26" |
| Clamping Length (Decimal Inch) | 1.6535" |
| Clamping Length (mm) | 42.00mm |
| Connection Bore Depth (Inch) | 2-1/8" |
| Connection Bore Depth (Decimal Inch) | 2.1660" |
| Connection Bore Depth (mm) | 54.00mm |
| Thread Diameter Size | M16x1.00mm |
| Connection Retention Knob Thread Size | UNC5/8-11 |
| Radial Loction (Inch) | 9/13" |
| Radial Location (mm) | 17.60mm |
| Radial Location (Decimal Inch) | 0.6929" |
| RPM | 25000 RPM |
| Taper Accuracy | AT3 |
| Body Half Taper Angle (Degree) | 4.5 Degree |

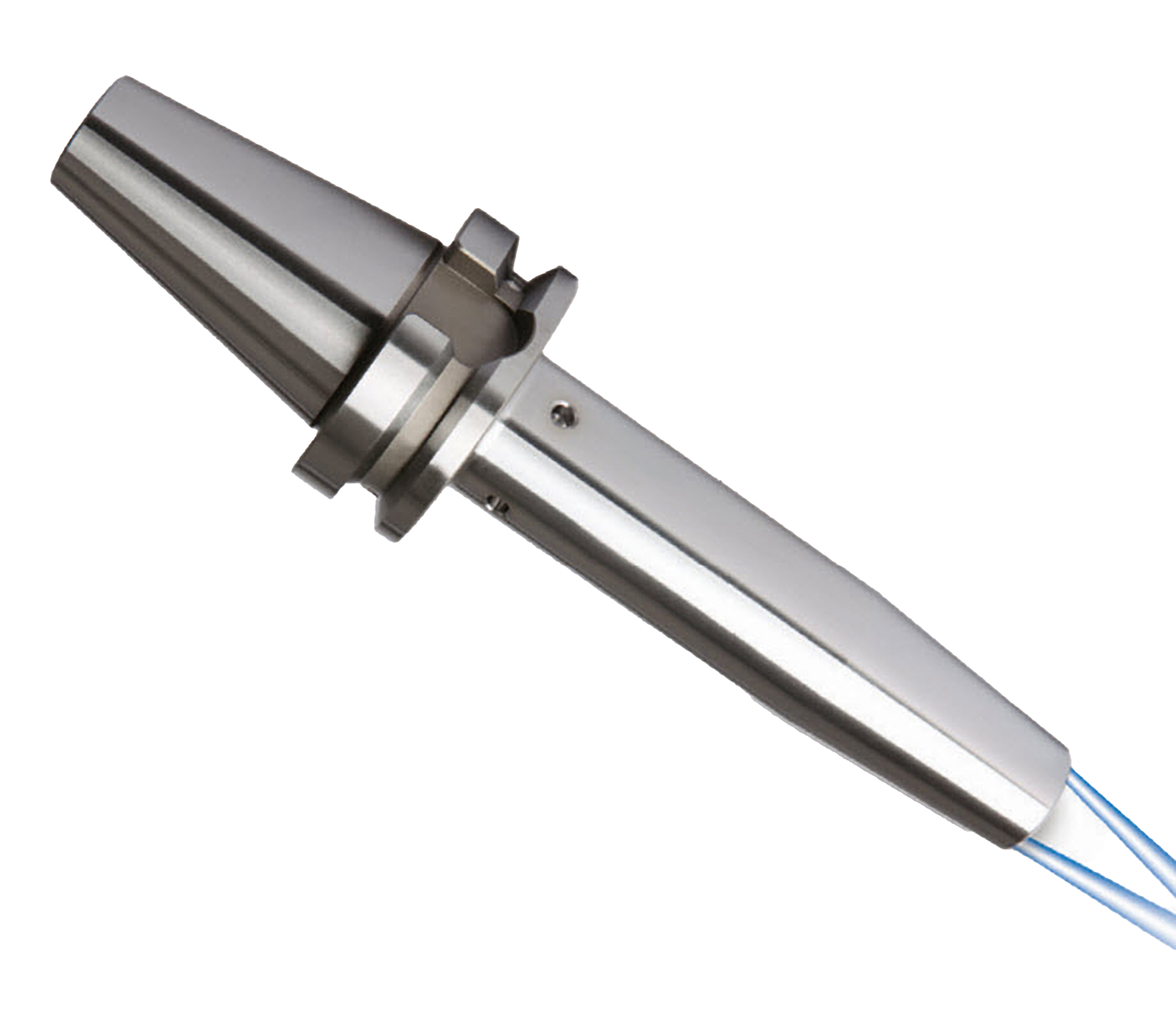

| Product Type | Shrink Fit Holder |
