Product Specifications
| Manufacturer Part Number | VE044 |
| Body Diameter 1 (Inch) | 1-52/71" |
| Body Diameter 1 (Decimal Inch) | 1.7323" |
| Body Diameter 1 (mm) | 44.00mm |
| Body Diameter 2 (Inch) | 2-2/23" |
| Body Diameter 2 (Decimal Inch) | 2.0866" |
| Body Diameter 2 (mm) | 53.00mm |
| Connection Work Side (Decimal Inch) | 1.000" |
| Connection Work Side (Inch) | 1" |
| Connect Work Side (mm) | 25.40mm |
| Gage Length (Decimal Inch) | 3.940" |
| LPR (Inch) | 3-15/16" |
| LPR (mm) | 1.00mm |
| Overall Length (Inch) | 6-43/84" |
| Overall Length (Decimal Inch) | 6.5118" |
| Overall Length (mm) | 165.40mm |
| Body Length (Inch) | 2-7/8" |
| Body Length (Decimal Inch) | 2.8740" |
| Body Length (mm) | 73.00mm |
| Clamping Length (Inch) | 1-8/9" |
| Clamping Length (Decimal Inch) | 1.8898" |
| Clamping Length (mm) | 48.00mm |
| Connection Bore Depth (Inch) | 2-25/69" |
| Connection Bore Depth (Decimal Inch) | 2.3222" |
| Connection Bore Depth (mm) | 60.00mm |
| Thread Diameter Size | M16x1.00mm |
| Connection Retention Knob Thread Size | M16x2.0 |
| Radial Loction (Inch) | 38/43" |
| Radial Location (mm) | 22.45mm |
| Radial Location (Decimal Inch) | 0.8839" |
| RPM | 25000 RPM |
| Taper Accuracy | AT3 |
| Body Half Taper Angle (Degree) | 4.5 Degree |

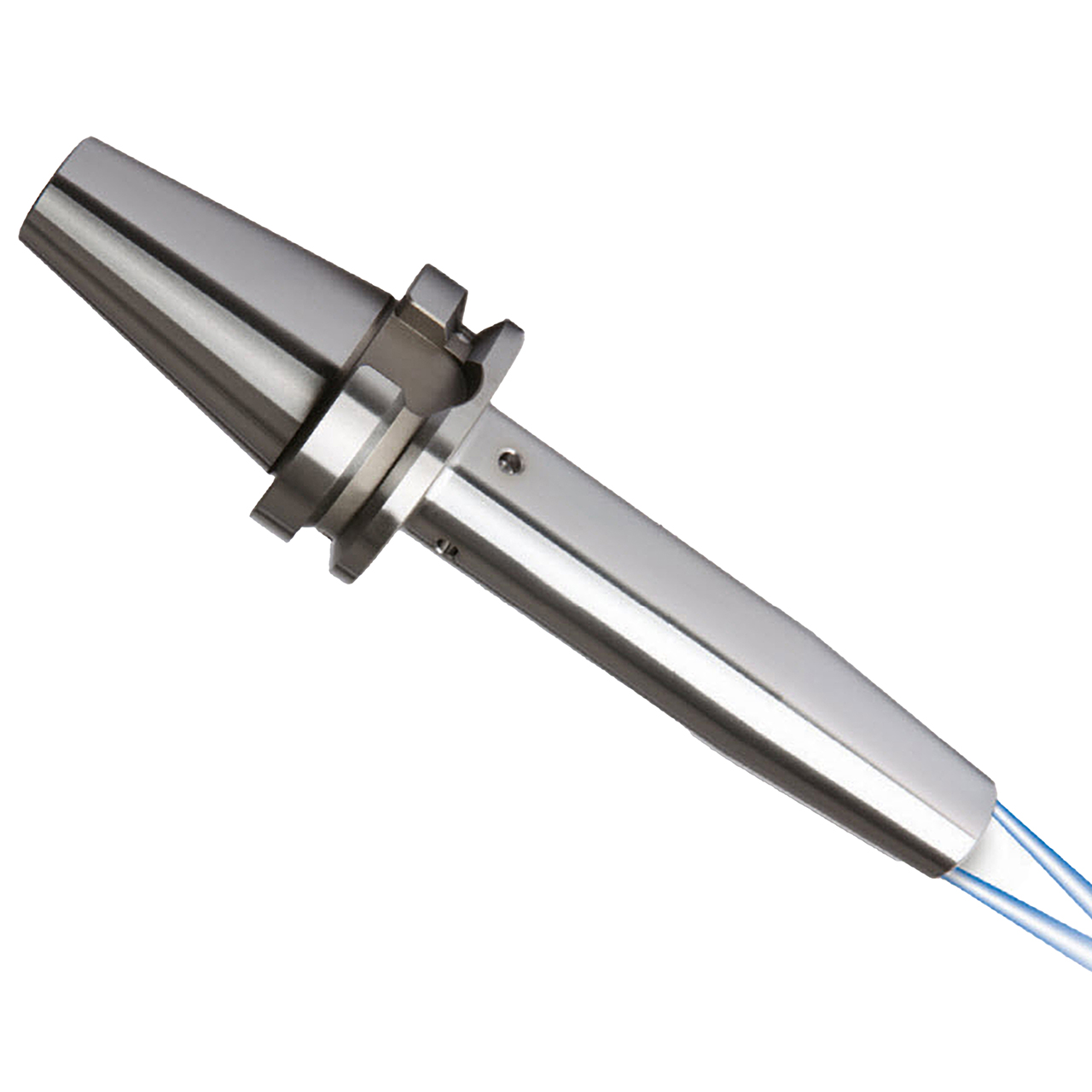

| Product Type | Shrink Fit Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Overall Length (Decimal Inch):
6.5118"
Overall Length (mm):
165.40mm
Body Length (Decimal Inch):
2.8740"
Body Length (mm):
73.00mm
Speed (RPM):
25000 RPM
interval quantity:
1
