Product Specifications
| Manufacturer Part Number | VG026 |
| Body Diameter 1 (Inch) | 17/18" |
| Body Diameter 1 (Decimal Inch) | 0.9449" |
| Body Diameter 1 (mm) | 24.00mm |
| Body Diameter 2 (Inch) | 1-11/61" |
| Body Diameter 2 (Decimal Inch) | 1.1803" |
| Body Diameter 2 (mm) | 29.98mm |
| Connection Work Side (Decimal Inch) | 0.375" |
| Connection Work Side (Inch) | 3/8" |
| Connect Work Side (mm) | 9.53mm |
| Gage Length (Decimal Inch) | 2.360" |
| LPR (Inch) | 2-25/69" |
| LPR (mm) | 6.00mm |
| Overall Length (Inch) | 4-15/56" |
| Overall Length (Decimal Inch) | 4.2677" |
| Overall Length (mm) | 108.40mm |
| Body Length (Inch) | 1-1/2" |
| Body Length (Decimal Inch) | 1.4961" |
| Body Length (mm) | 38.00mm |
| Clamping Length (Inch) | 1-6/25" |
| Clamping Length (Decimal Inch) | 1.2402" |
| Clamping Length (mm) | 31.50mm |
| Connection Bore Depth (Inch) | 1-62/87" |
| Connection Bore Depth (Decimal Inch) | 1.7226" |
| Connection Bore Depth (mm) | 43.50mm |
| Thread Diameter Size | M8x1.00mm |
| Connection Retention Knob Thread Size | M12x1.75 |
| Radial Loction (Inch) | 7/15" |
| Radial Location (mm) | 11.85mm |
| Radial Location (Decimal Inch) | 0.4665" |
| RPM | 25000 RPM |
| Taper Accuracy | AT3 |
| Body Half Taper Angle (Degree) | 4.5 Degree |

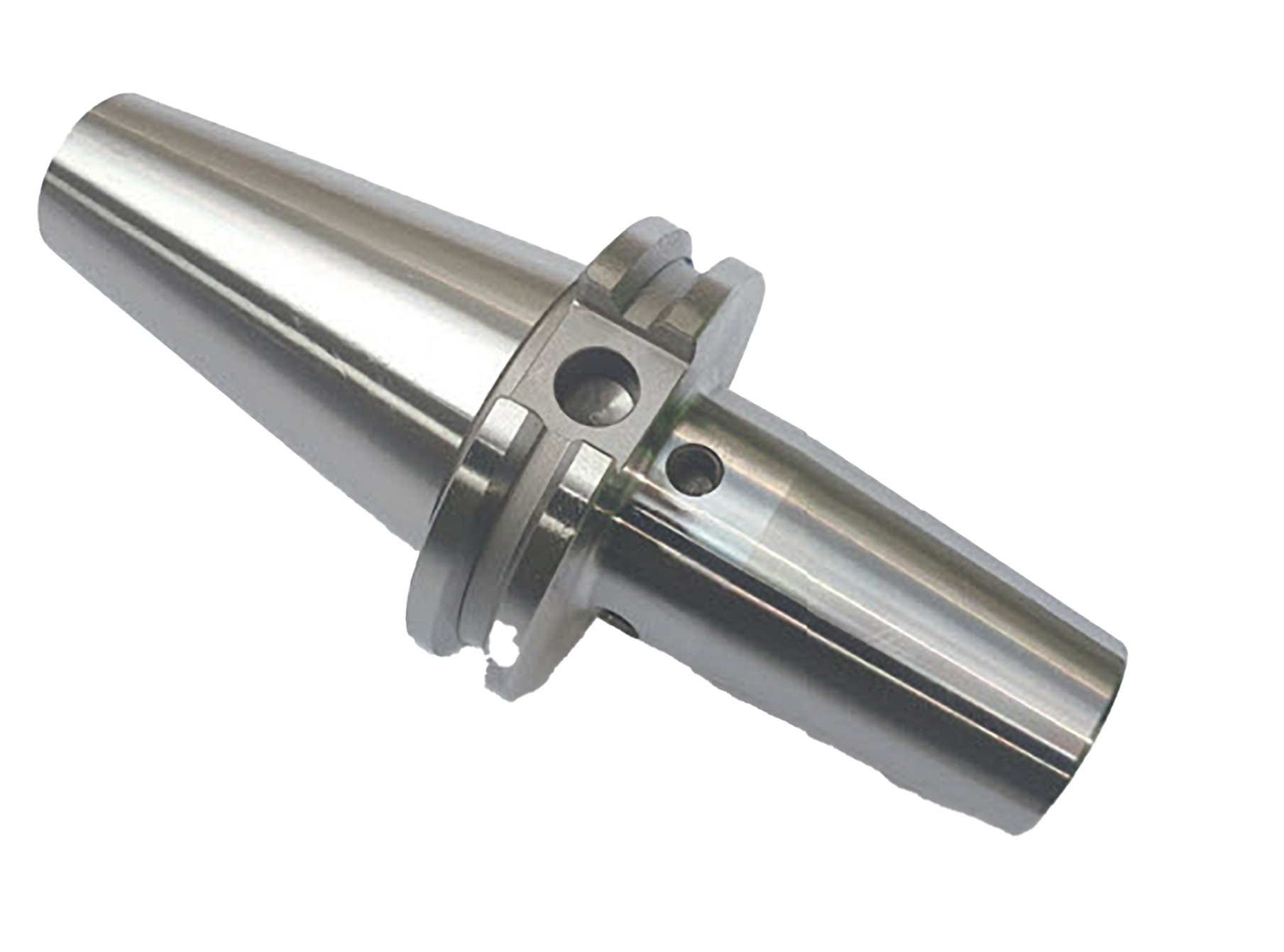

| Product Type | Shrink Fit Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Overall Length (Inch):
4-15/56"
Overall Length (Decimal Inch):
4.2677"
Overall Length (mm):
108.40mm
interval quantity:
1
