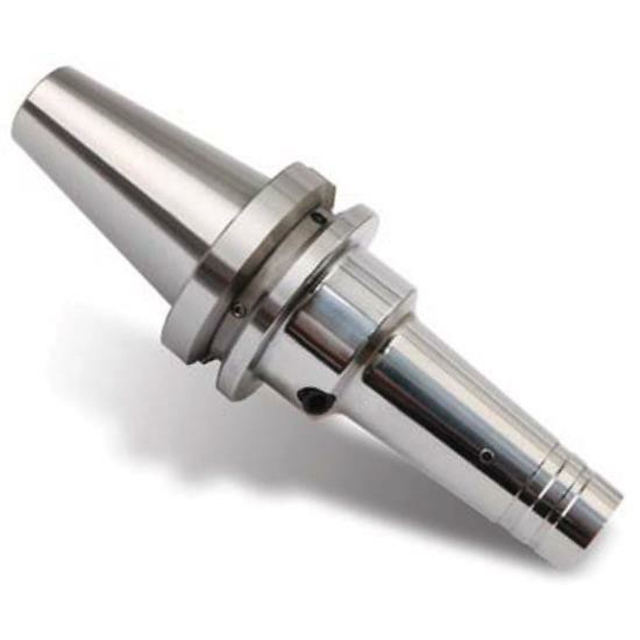

Product Specifications
| EDP Number | WB114HMC |
| Shoulder Diameter (Inch) | 1-15/16" |
| Shoulder Diameter (mm) | 49.5mm |
| Shoulder Diameter (Decimal Inch) | 1.9488" |
| Bore Diameter (Inch) | 1/2" |
| Bore Diameter (mm) | 12mm |
| Nose Diameter (mm) | 25mm |
| Bore Diameter (Decimal Inch) | 0.4724" |
| Nose Diameter (Inch) | 1" |
| Nose Diameter (Decimal Inch) | 0.9843" |
| Gage Length (Decimal Inch) | 5.9055" |
| Gage Length (Inch) | 5-7/8" |
| Gage Length (mm) | 150mm |
| Bore Depth (Decimal Inch) | 3.937" |
| Bore Depth (Inch) | 3-15/16" |
| Bore Depth (mm) | 100 |
| Maximum Tool Depth inch (l2) | 1.4567" |
| Maximum Tool Depth fraction (l2) | 1-7/16" |
| Maximum Tool Depth metric (L2) | 37mm |
| Grade | M10x1.0 |
| Taper Accuracy | AT3 |
| Grade Value | 2.5 |
| RPM | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD/B |
| Taper # | CAT40 |
