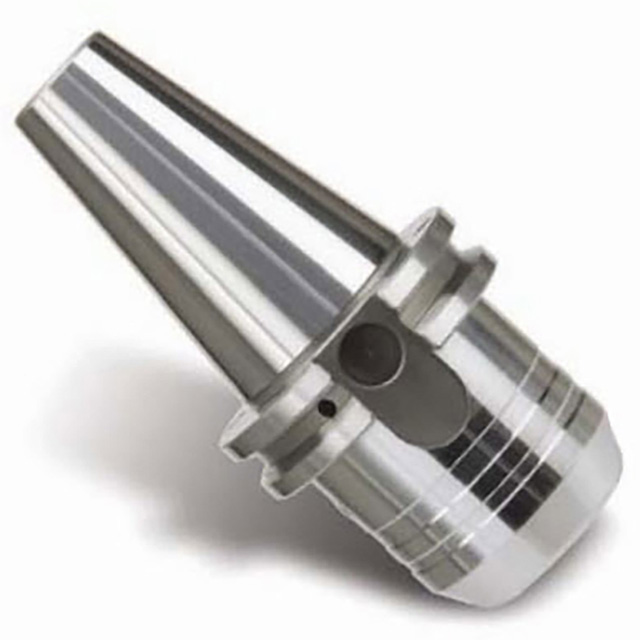

Product Specifications
| EDP Number | WK021SNR |
| Shoulder Diameter (Inch) | 1-3/4" |
| Shoulder Diameter (mm) | 44.5mm |
| Shoulder Diameter (Decimal Inch) | 1.752" |
| Bore Diameter (Inch) | 5/8" |
| Bore Diameter (mm) | 15.88mm |
| Nose Diameter (mm) | 34.59mm |
| Bore Diameter (Decimal Inch) | 0.625" |
| Nose Diameter (Inch) | 1-3/8" |
| Nose Diameter (Decimal Inch) | 1.362" |
| Gage Length (Decimal Inch) | 2.52" |
| Gage Length (Inch) | 2-1/2" |
| Gage Length (mm) | 64.01mm |
| Maximum Tool Depth inch (l2) | 1.654" |
| Maximum Tool Depth fraction (l2) | 1-5/8" |
| Maximum Tool Depth metric (L2) | 42.01mm |
| Grade | M10X1.0 |
| Taper Accuracy | AT3 |
| Grade Value | 2.5 |
| RPM | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD/B |
| Taper # | CAT40 |
