Product Specifications
| Manufacturer Part Number | ZBS2116 |
| Diameter (Inch) | 1-1/4" |
| Diameter (Decimal Inch) | 1.2500" |
| Diameter (mm) | 31.75mm |
| Shank Diameter (Inch) | 1-1/4" |
| Shank Diameter (Decimal Inch) | 1.2500" |
| Shank Diameter (mm) | 31.75mm |
| Length of Cut (Inch) | 2-1/4" |
| Length of Cut (Decimal Inch) | 2.2500" |
| Length of Cut (mm) | 57.15mm |
| LBS (Inch) | 19-7/16" |
| LBS (Decimal Inch) | 4.3750" |
| LBS (mm) | 111.13mm |
| Overall Length (Inch) | 7-3/4" |
| Overall Length (Decimal Inch) | 7.7500" |
| Overall Length (mm) | 196.85mm |
| Neck Diameter (Inch) | 1-1/16" |
| Neck Diameter (Decimal Inch) | 1.0625" |
| Neck Diameter (mm) | 26.99mm |
| Coating | Nickel-Based |
| Material | Alloy Steel |
| Cutting Direction | Right Hand |

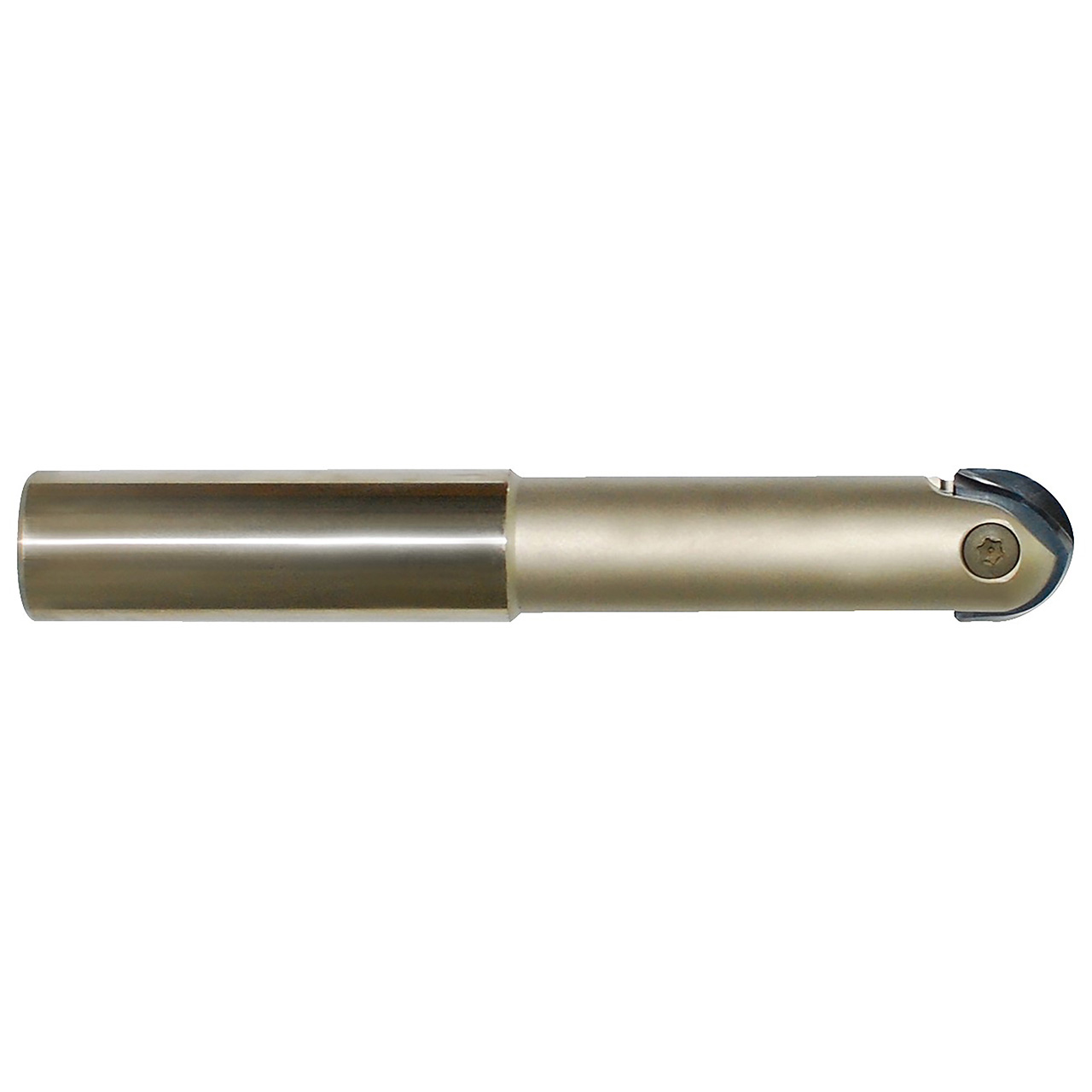

| Product Type | Milling Ball Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Material:
Alloy Steel
Finish/Coating:
Nickel-Based
