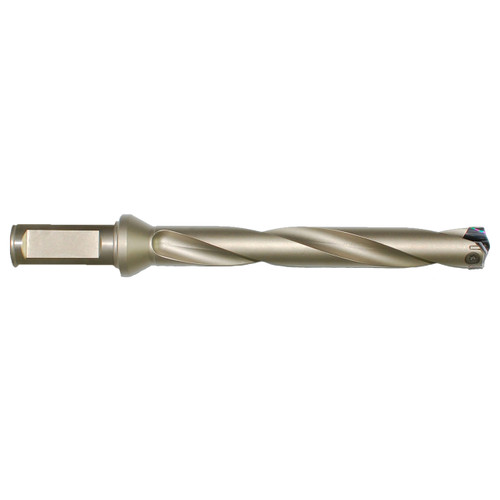

YG1 ZD0304 | 0.7480" Diameter x 2.1875" Shank x 2.2969" Maximum Drill Depth x 5.7031" OAL 2 Flute Nickel-Based Coated Alloy Steel Dream Drill Holder

$309.60 $208.98
(You save $100.62)
Brand:
YG1
Series:
ZD
Maximum Drill Depth (Inch):
2-19/64"
Maximum Drill Depth (Decimal Inch):
2.2969"
Maximum Drill Depth (mm):
58.34mm
Through Coolant:
Yes
interval quantity:
1
SKU:
10032254
UPC:
Weight:
1.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
YG1 ZD0304 | 0.7480" Diameter x 2.1875" Shank x 2.2969" Maximum Drill Depth x 5.7031" OAL 2 Flute Nickel-Based Coated Alloy Steel Dream Drill Holder

Product Specifications
# Manufacturer NumberZD0304
Diameter (Decimal Inch)0.7480"
Diameter (mm)19.00mm
Shank Diameter (mm)25.40mm
Shank Diameter (Inch)1"
Shank Diameter (Decimal Inch)1.0000"
Minimum Insert Diameter (Decimal Inch)0.7677"
Minimum Insert Diameter (mm)19.50mm
Maximum Insert Diameter (Decimal Inch)0.7812"
Maximum Insert Diameter (mm)19.84mm
Shank Length (Decimal Inch)2.1875"
Shank Length (mm)55.56mm
Flange Diameter (Decimal Inch)1.2500"
Flange Diameter (mm)31.75mm
Maximum Drill Depth (Decimal Inch)2.2969"
Maximum Drill Depth (mm)58.34mm
Overall Length (Decimal Inch)5.7031"
Overall Length (mm)144.86mm
Length Diameter3xD
Number of Flutes2
SeriesZD
Coolant ThroughYes
CoatingNickel-Based
MaterialAlloy Steel
Flute TypeSpiral
Product TypeDream Drill Holder

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
