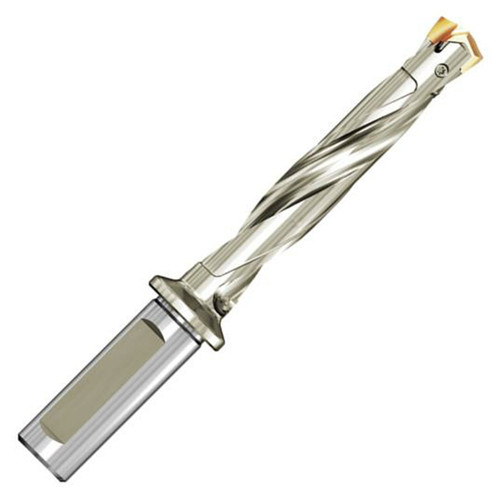

YG1 ZD15508063 | 0.6094" Diameter x 1.6250" Shank x 7.8125" OAL 2 Flute Nickle Coated Steel Replaceable-Tip Drill

$488.14 $329.49
(You save $158.65)
Brand:
YG1
Series:
ZD14008
Minimum Drill Diameter (Inch):
0.6094"
Minimum Drill Diameter (Decimal Inch):
39/64"
Minimum Drill Diameter (mm):
15.48mm
Maximum Drill Diameter (Inch):
0.6259"
Maximum Drill Diameter (Decimal Inch):
5/8"
Maximum Drill Diameter (mm):
15.90mm
Maximum Drill Depth (Inch):
5.0468"
Maximum Drill Depth (Decimal Inch):
5-3/64"
Maximum Drill Depth (mm):
128.19mm
Shank Diameter (Inch):
1.6250"
Shank Diameter (Decimal Inch):
5/8"
Shank Diameter (mm):
15.88mm
Insert Style:
S14
Insert Seat Size:
0.216
interval quantity:
1
SKU:
10254568
UPC:
Weight:
0.39 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Product Specifications
Minimum Insert Diameter (Decimal Inch)ZD15508063
Minimum Insert Diameter (Decimal Inch)0.6094"
Minimum Insert Diameter (Inch)39/64"
Minimum Insert Diameter (mm)15.48mm
Maximum Insert Diameter (Inch)5/8"
Maximum Insert Diameter (mm)15.90mm
Diameter (Decimal Inch)0.6094"
Diameter (Inch)39/64"
Diameter (mm)15.48mm
Shank Diameter (Decimal Inch)1.6250"
Shank Diameter (Inch)5/8"
Shank Diameter (mm)15.88mm
Shank Length (Decimal Inch)1.8750"
Shank Length (Inch)1-7/8"
Shank Length (mm)47.63mm
Flange Diameter (Decimal Inch)0.9063"
Flange Diameter (Inch)29/32"
Flange Diameter (mm)24.02mm
Maximum Drill Depth (Decimal Inch)5.0468"
Maximum Drill Depth (Inch)5-3/64"
Maximum Drill Depth (mm)128.19mm
Overall Length (Decimal Inch)7.8125"
Overall Length (Inch)7-13/16"
Overall Length (mm)198.44mm
Length/ Diameter8XD
SizeS14
Seat0.216
Number of Flutes2
Flute TypeSPFL
Coolant ThruYes
CoatingNickle
FormulaSteel
Cutting DirectionRight
Product TypeReplaceable-Tip Drill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
YG1
Series:
ZD14008
Minimum Drill Diameter (Inch):
0.6094"
Minimum Drill Diameter (Decimal Inch):
39/64"
Minimum Drill Diameter (mm):
15.48mm
Maximum Drill Diameter (Inch):
0.6259"
Maximum Drill Diameter (Decimal Inch):
5/8"
Maximum Drill Diameter (mm):
15.90mm
Maximum Drill Depth (Inch):
5.0468"
Maximum Drill Depth (Decimal Inch):
5-3/64"
Maximum Drill Depth (mm):
128.19mm
Shank Diameter (Inch):
1.6250"
Shank Diameter (Decimal Inch):
5/8"
Shank Diameter (mm):
15.88mm
Insert Style:
S14
Insert Seat Size:
0.216
interval quantity:
1
