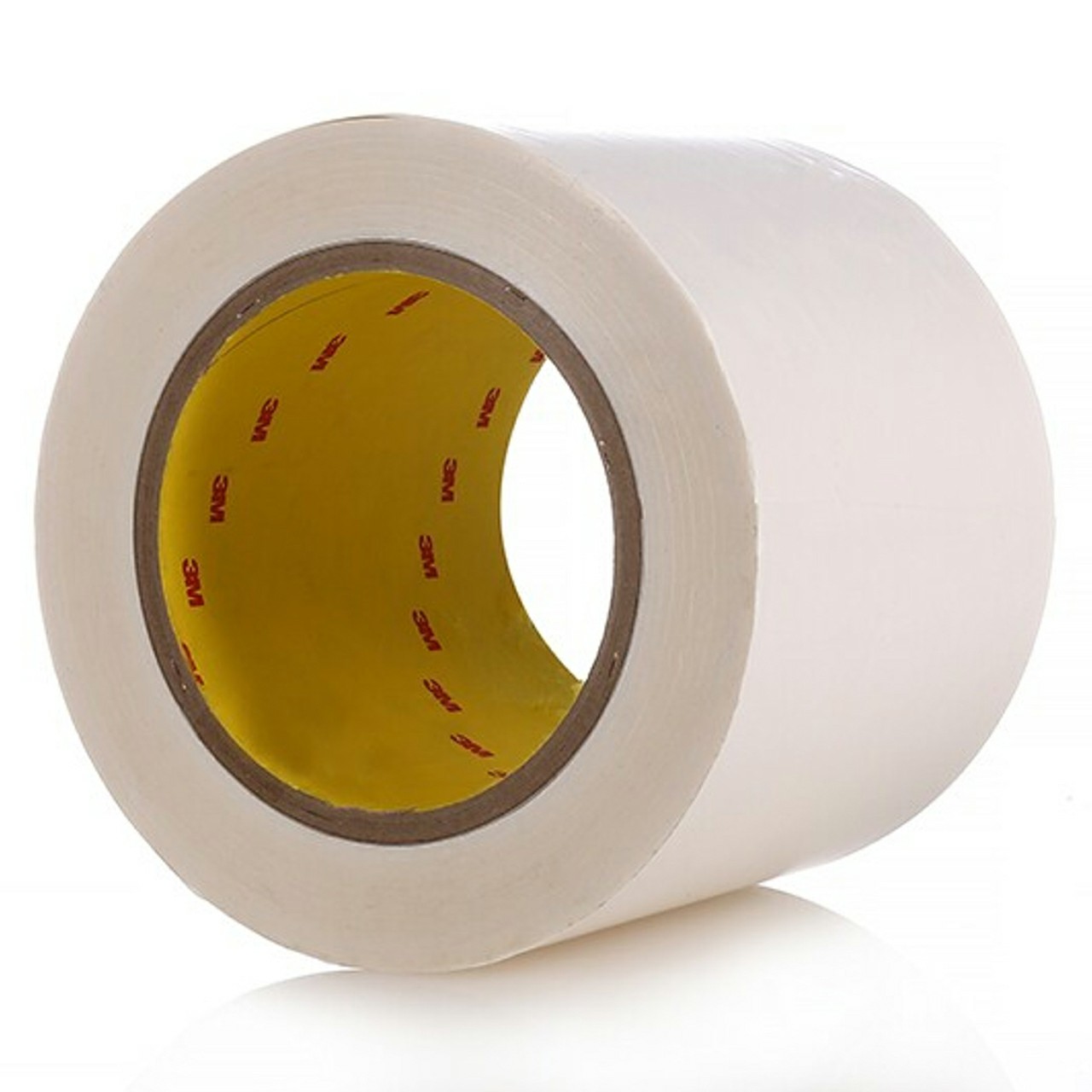

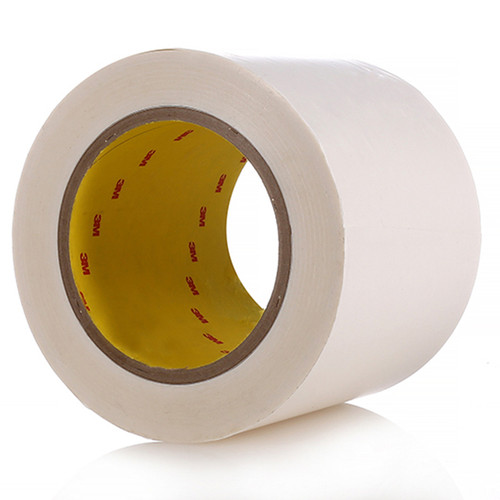

3M double coated tape 9009 is .8 mils of 300 high strength acrylic adhesive, .5 mil polyester carrier, .8 mils of 300 high strength acrylic adhesive on a 3.2 mil 55 lbs densified kraft paper liner
Thin double-coated tape for applications where minimal thinness is critical.
Features- 1.9 mil double coated tape with a PET polyester carrier on a 55 lbs densified kraft paper liner DK
- High adhesion to a wide variety of materials such as HSE LSE and metals. Good temperature resistance and good UV resistance. Good peel strength
- Good for joining and bonding in electronics and general industrial applications. Foam and gasket attachment
- Thin double coat for applications where thickness is critical
Product Specifications
| Manufacturer Part Number | 7000017816 |
| Adhesive Type | High Performance Adhesive 300 |
| Core Size (Decimal Inch) | 3.000" |
| Master Size Length (mm) | 164.60mm |
| Overall Length | 60.000yd |
| Overall Thickness | 2.100mil |
| Overall Width (Decimal Inch) | 54.000" |
| Primary Liner | 55# Densified Kraft Paper (DK) |
| Primary Liner Thickness (mm) | 0.08mm |
| Product Color | Transparent |
| Product Number | 9009 |
| Product Type | Splicing & Tabbing Tape |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
3M
Adhesive Type:
High Performance Adhesive 300
Core Size (Inch):
3"
Core Size (Decimal Inch):
3.0000"
Core Size (mm):
76.20mm
Master Size Length (Inch):
6-31/64"
Master Size Length (Decimal Inch):
6.4800"
Master Size Length (mm):
164.60mm
Color:
Transparent
Material:
Foam
Primary Liner Thickness (mm):
0.08mm
Overall Width (Inch):
54"
Overall Width (Decimal Inch):
54.0000"
Overall Width (cm):
137.00cm
Overall Length (yd):
60.000yd
Overall Length (mm):
54.86mm
Overall Thickness (mil):
2.100mil
