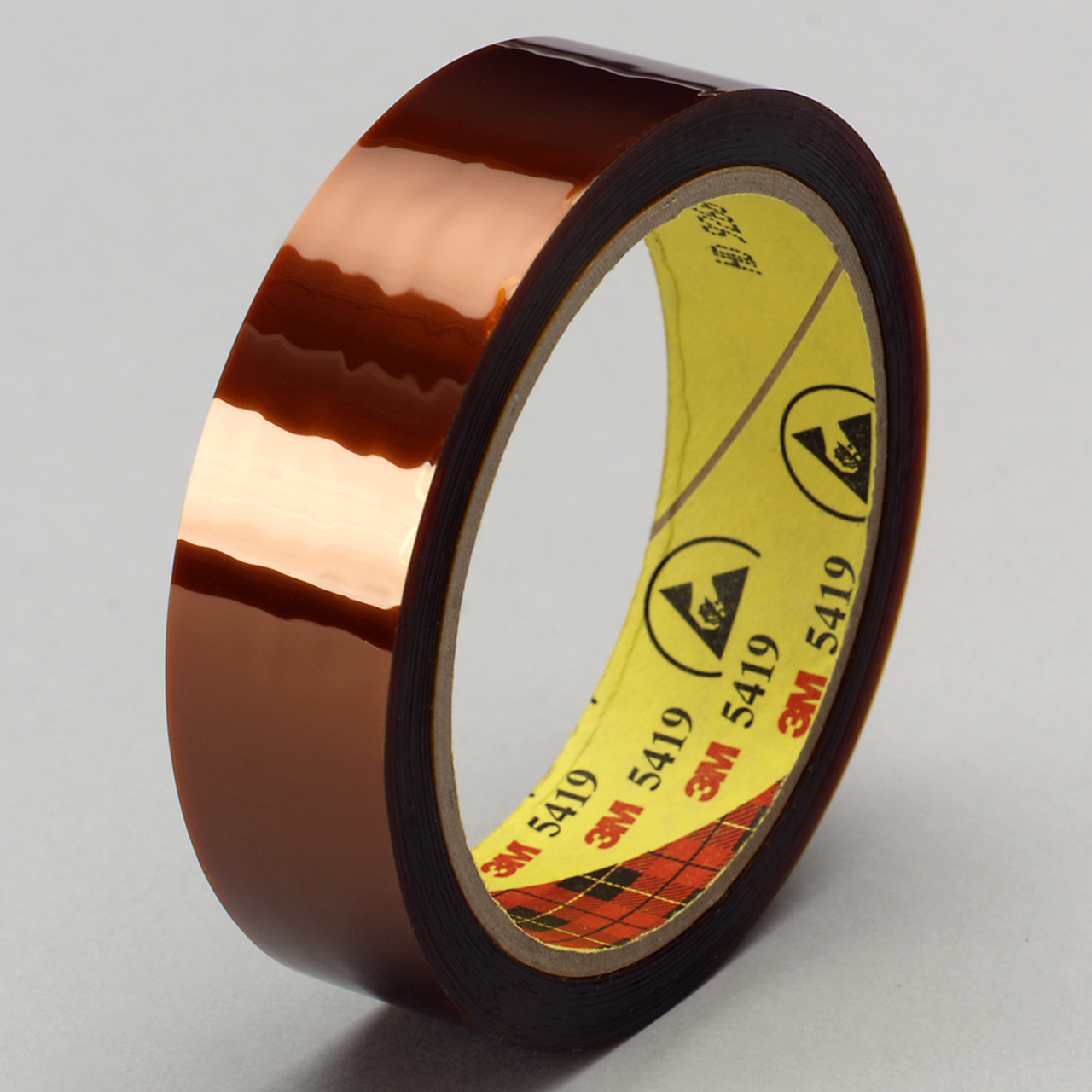

3M 7000036206 | 5419 36 yd x 0.750" Width x 2.7 mil Thickness Polyimide Film Tape

$68.00
Ships:
From Manufacturer
Brand:
3M
Length (yd):
36 yd
Width (Inch):
3/4"
Width (Decimal Inch):
0.7500"
Width (mm):
19.05mm
Color:
Gold
interval quantity:
12
Ships:
From Manufacturer
SKU:
96005428
UPC:
 00021200648656
Weight:
2.65 LBS
Minimum Purchase:
12 units
Shipping:
Free Shipping

3M low static polyimide film tape 5419 with DuPont Kapton polyimide film and silicone adhesive used for PCB solder masking and other high temperature applications. Low Static.

Employs a proprietary technology that results in extremely low electrostatic discharge at unwind and removal from the PWB. Conventional polyimide tapes can typically generate over 10,000 V during use which can damage board mounted electronic components. 3M tape 5419 overcomes this problem without any of the typical drawbacks of conventional "anti-static" or "static-free" tapes (e.g., variable adhesion and opaqueness). Standard Lead Time: 7 Calendar Days

Features
  • DuPont Kapton polyimide film does not soften at elevated temperatures, thus the film provides an excellent release surface at elevated temperatures
  • No rework required, enabling high productivity
  • Protects surfaces helping reduce replacement parts

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
3M
Length (yd):
36 yd
Width (Inch):
3/4"
Width (Decimal Inch):
0.7500"
Width (mm):
19.05mm
Color:
Gold
interval quantity:
12
Ships:
From Manufacturer
