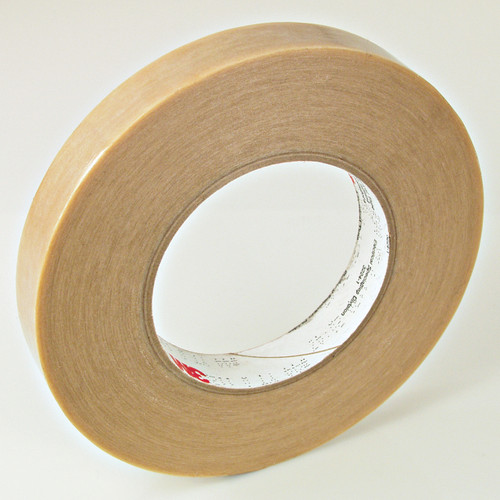

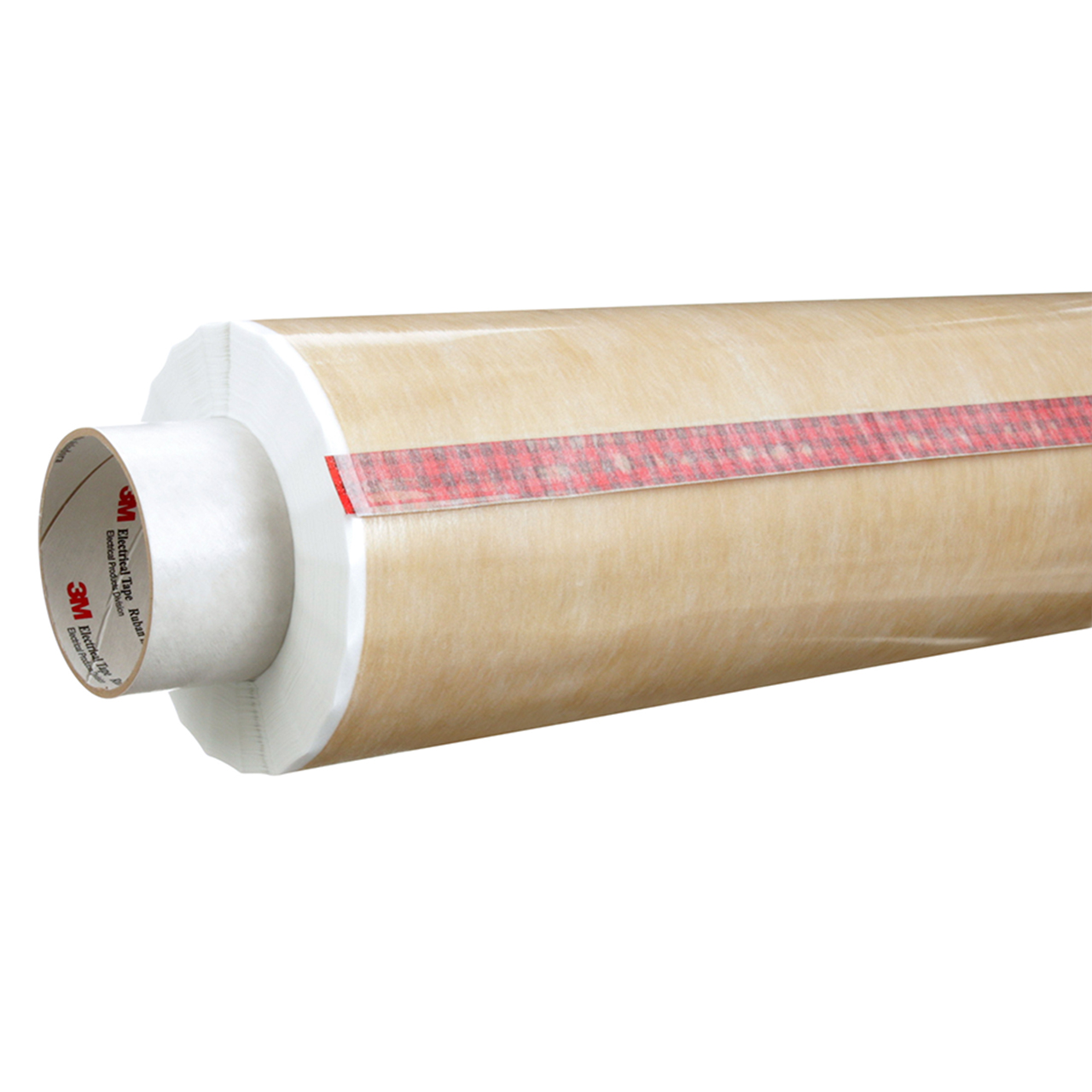

3M tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).
3M Composite Film Electrical Tape 44 features a combination of polyester web and polyester film coated with pressure sensitive rubber thermosetting adhesive. This tape is resistant to heat, oxidation, solvents and oils. The pressure-sensitive, thermosetting rubber adhesive offers strong adherence and helps make this tape excellent for stick wound coils and transformers. It also protects start wires, leads, terminal strips, insulation paper, and end turns. This tape requires no heat, preparation or moisture before application. When you need an electrical tape that's tough, puncture-resistant, and has outstanding electrical properties, use the 3M composite film electrical tape 44.
Features- Common Use: For use in applications such as stick-wound coil/transformer and in bobbin-wound coils for banding, anchoring and insulating
- Tough Durability: Puncture-resistant and offers great electrical properties
- No Additional Tools Needed: No heat, moisture or other preparation is needed to apply adhesive
- Temperature Range: Continuous operation not exceeding 130 °C (266 °F) per UL and CSA listings
- Compliance: UL510A Standard, Category OANZ2, File No. E17385; CSA Certified, Standard C22.2 No. 66, File No. 093411, Class 9052-30
- Stability: 5-year shelf life (from date of manufacture)
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
