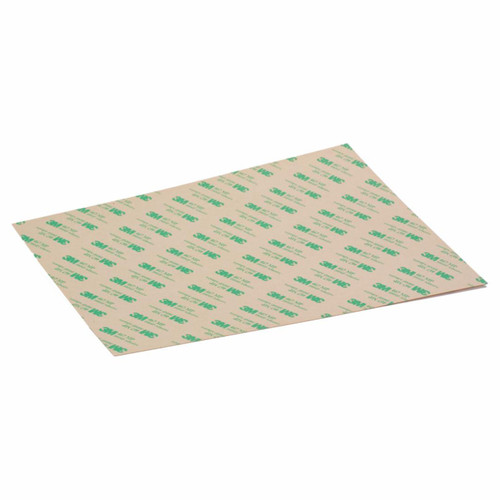

3M Membrane Switch Spacer 7956WDL features a 2 mil white PET film carrier with a metallized vapor coat for added opacity, ideal for graphics. 3M High Performance Acrylic Adhesive 200MP delivers excellent shear strength during repeated switch actuation and forms clean edges for precise slitting and die-cutting. A PCK paper liner resists humidity and adds stability for improved sheet processing.
Product Specifications
| Manufacturer Part Number | 7000049163 |
| Back Side Adhesive Thickness(mil) | 2.0mil |
| Overall Length (Decimal Inch) | 36.000" |
| Overall Length (mm) | 914.00mm |
| Overall Width (Decimal Inch) | 24.000" |
| Overall Width (mm) | 610.00mm |
| Primary Liner Thickness (mil) | 4.2 mil |
| Primary Liner Thickness (mm) | 0.11mm |
| Total Tape Thickness without Liner (mil) | 6.0 mil |
| Total Tape Thickness without Liner (mm) | 0.15mm |
| Face Side Adhesive Thickness (mil) | 2.0mil |
| Face Side Adhesive Thickness (mm) | 0.05mm |
| Number of Adhesive Sides | Double-sided |
| Primary Liner Color | Tan |
| Product Color | White |
| Product Type | Switch Spacer Tape |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
3M
Width (Inch):
24"
Width (Decimal Inch):
24.0157"
Width (mm):
610.00mm
Thickness (Decimal Inch):
0.0059"
Thickness (mm):
0.15mm
Color:
White
interval quantity:
1
