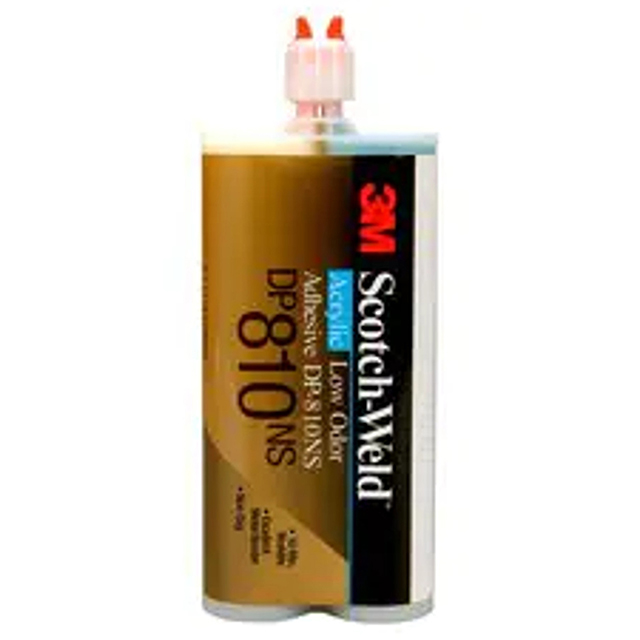

3M Scotch-Weld low odor acrylic adhesive DP810NS is a non-sag, toughened two-part, room-temperature curing acrylic adhesive specially formulated to bond oily metals, plasticsand other surfaces. With lower odor and non-flammable properties, 3M Scotch-Weld Acrylic Adhesive DP810NS contributes to a safer work environment compared to typical acrylic adhesives.
When using a Duo-Pak (DP) size adhesive, rely on 3M dispensing equipment for convenient and accurate metering, mixing and dispensing.
Delivers Non-sag Formulation so Adhesive Stays Where AppliedThis unique acrylic gives you the strong shear and peel strength along with good impact resistance for durability to meet your demanding end-use applications. Making work safer, faster and more efficient, that's just a few of the benefits of 3M Scotch-Weld low odor acrylic adhesive DP810NS. It bonds on a variety of substrates ranging from metals, composite and many plastics including nylon. The non-sag formula creates rigid adhesion. The acrylic adhesive cures to a tan or black color.
Recommended Applications- Sporting goods (metal to metal, metal to plastic bonding)
- Appliance manufacturing (metal to metal, metal to glass)
- Electronic casing assembly
With a mix ratio is 1:1, 3M Scotch-Weld low odor acrylic adhesive DP810NS provides a 10 minute work life to allow time to adjust fit prior to setting. The adhesive reaches handling strength in approximately 20 minutes and is fully cured in 8-24 hours (at 72°F/22°C). (Note: excess adhesive exposed to air around the bond lines may remain tacky up to 48 hrs.) 3M Scotch-Weld low odor acrylic adhesive DP810NS is approved under UL 746C, polymeric materials use in electrical equipment.
Easy Adhesion with AcrylicAcrylic adhesives, often referred to as epoxy adhesives or epoxy glue, are two-part adhesives that provide excellent bond strength and durability, although slightly lower adhesion than 2 part epoxy in some situations. However, acrylic glues have several features that make them easier to use, including a much faster cure speed, higher tolerance for oily or unprepared bonding surfaces and the ability to bond a wide variety of materials, including nearly all plastics. Newer acrylic adhesive formulations are room temperature stable with a moderate shelf life.
Features:
- Low odor adhesive is ideal for any setting where harsh fumes or flammability are an issue
- Delivers non-sag formulation so adhesive stays where applied
- Provides high shear and peel strength and is toughened for impact resistance
- 10 minute work life and 20 minute handling strength
- Bonds oily metals with minimal surface prep
- Bonds most plastics, composites and metals
Manufacturer Part Number | 7000121240 |
Adhesion Strength | 320.0 oz/in |
Adhesive Type | Acrylic |
Color Family | Multi-color |
Container Size (Inch) | 5.28 Gallon |
Container Size (mm) | 20.0 Liter |
Full Cure Time | 8-24 Hours @ 72 F (22 C) |
Indoor/Outdoor | Both |
Open Time | 10 min @ 72 °F (22 °C) |
Physical Form | Flowable Liquid |
Product Color | Tan |
Product Form | Liter |
Product Number | 810NS |
Product Type | Acrylic |
Set Time | 10 Minutes |
Shear Strength | 4200.0 psi |
Specific Gravity | 1.07 |
Storage Temperature | <=40 Degree Fahrenheit |
Storage Temperature (Celsius) | 4 °C |
Substrate | Plastic (ABS, PVC, Acrylic) |
Substrate 1 | Metal |
Substrate 2 | Glass & Ceramics |
Viscosity | Non-sag |
Viscosity Range (cps) at Room Temperature | 90,000-95,000 |
Volume (Inch) | 5.0 gal |
Volume (mm) | 20.0 L |
