Description

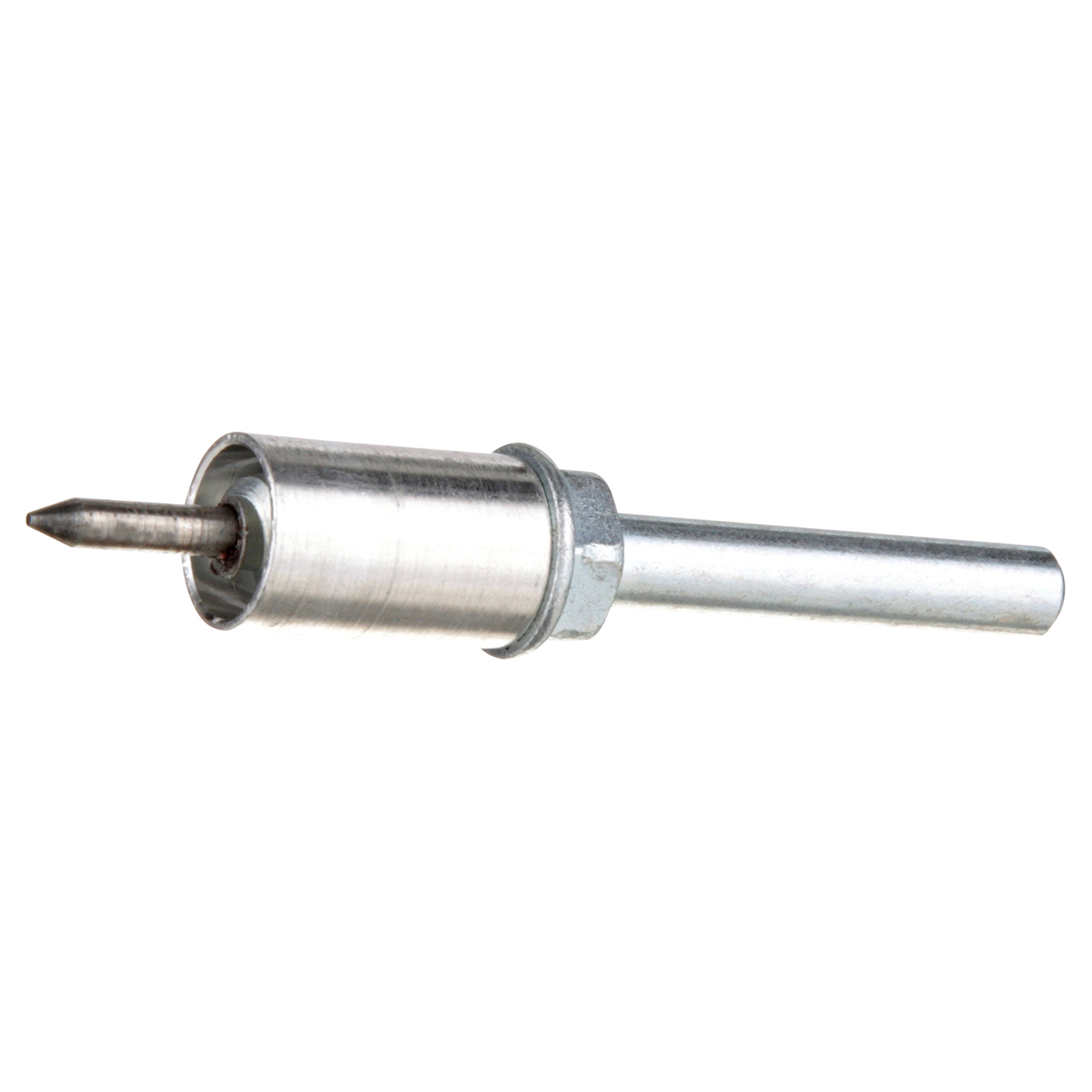

The 3M 7000121724 Quick Change P.A.R.T. Disc Mandrel is a specially designed mandrel for attaching Standard Abrasives Quick Change P.A.R.T. discs to rotary power tools. This Standard Abrasives Disc Mandrel is designed for repeatable surface prep and precise paint/anodized contact cleaning. It has a 1/4" (6.35 mm) shank and a 3.0" (76.2 mm) overall length for easy access in recessed or close-tolerance areas. The mandrel indexes the P.A.R.T. disc, allowing the disc's self-aligning center hole to clean the contact point without removing any adjacent anodized material. With the mandrel and rotary tools that accept a 5/8" collet assembly, you can perform rivet-hole prep, grounding-point cleaning, and paint removal with precise, measurable results. This 3M Disc Mandrel for Rotary Tool is quick-change compatible and designed to fit seamlessly into production or maintenance workflows that require consistent, localized removal.
Product Features and Benefits
Precision fit for P.A.R.T. Disc
The 3M Quick Change P.A.R.T. Disc Mandrel is designed specifically to secure Quick Change P.A.R.T. discs, allowing the disc's center to self-align and remove coating only from the workpiece hole.
1/4" shank, 3.0" overall length
A 0.25" (6.35 mm) shank with a 3.0" (76.2 mm) overall length and a 1.5" shank length provides reach into recesses while maintaining stability in the collet.
Designed for 5/8" collet rotary tools
The Standard Abrasives Disc Mandrel connects with rotary tools via a 5/8" collet assembly, allowing for secure, low-vibration operation in production environments.
Quick-change form and TS attachment
The 3M 7000121724 quick-change form factor with TS attachment makes disc swapping easier and reduces downtime during maintenance and preparation operations.
Durable pin and body dimensions
Pin diameter approx. 0.12" (3.04 mm) and robust construction offer repeatable seating and resistance to wear under normal use.
Product Specifications
| Manufacturer Part Number | 7000121724 |
| Legacy SKU | 66000002999 |
| Overall Length (Inch) | 3.0" |
| Overall Length (mm) | 76.2mm |
| Shank Length (Inch) | 1.5" |
| Shank Length (mm) | 38.1mm |
| Shank Size (Inch) | 0.25" |
| Shank Size (mm) | 6.35mm |
| Pin Diameter (Inch) | 0.12" |
| Pin Diameter (mm) | 3.04mm |
| Attachment Type | TS |
| Form Type | Quick Change |
| Product Type | Mandrel |
Frequently Asked Questions
What is a P.A.R.T. disc for surface preparation?
P.A.R.T. discs are paint/anodized removal tools designed to clean only the contact area while leaving the surrounding anodized surface intact.
Can this mandrel be used for electrical grounding contact cleaning tool applications?
Yes, the mandrel secures P.A.R.T. discs designed specifically for cleaning grounding contact points without enlarging the hole.
Is this a 5/8" shank rotary tool mandrel, or does it fit 5/8" collets?
The mandrel has a 1/4" shank and is designed to work with rotary tools that use a 5/8" collet assembly for the P.A.R.T. disc system.
Will this mandrel work for paint removal and anodized surface cleaning disc applications?
Yes, it's designed to securely hold paint removal and anodized-surface cleaning discs for precise material removal.
