Description

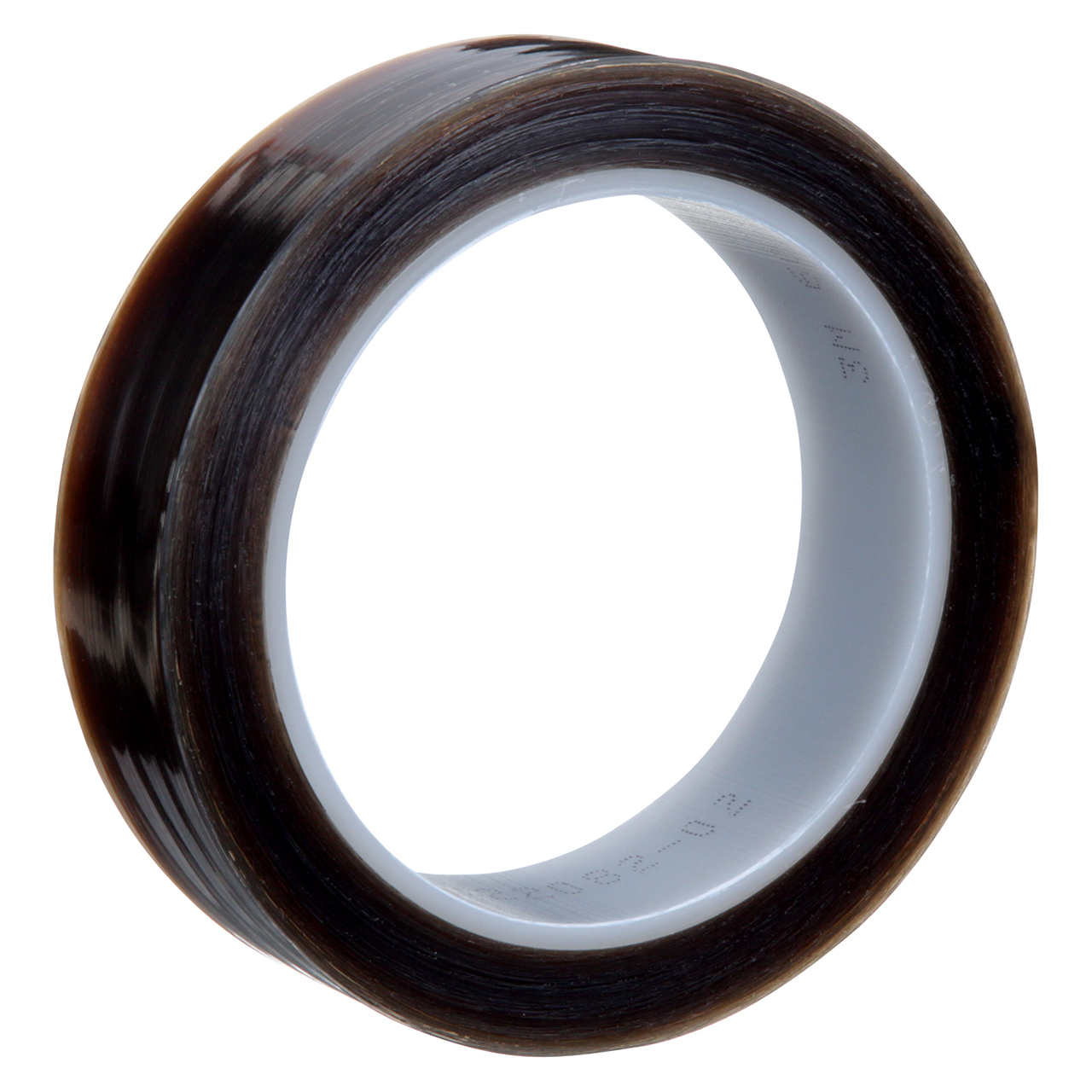

The 3M 7000132176 is a high-performance PTFE Film Electrical Tape 60 made for challenging, high-temperature electrical insulation applications. This PTFE film tape, available in 1" x 36 yd rolls, combines a thermosetting silicone adhesive with a thin, abrasion-resistant PTFE backing to provide stable dielectric performance where reliability is critical. The tape is UL510A certified and 600V rated, with continuous service up to 180°C (356°F), making it ideal for use in high-temperature coils, capacitors, and wire harnesses. The silicone adhesive is non-corrosive and does not require heat or moisture to activate; it can be applied directly for instant adhesion and long-term stability. The construction's total thickness of 8.0 mil provides the required dielectric strength and mechanical durability while remaining conformable on small diameters and complex geometries. In production or repair environments that require flame retardancy, high dielectric strength, and tight process control, use 3M Tape 60 PTFE Film 1" x 36 yd, High-temp. The product's five-year shelf stability allows for inventory planning and predictable maintenance cycles.
Product Features and Benefits
PTFE film backing for high dielectric strength
The PTFE film substrate delivers excellent dielectric properties and chemical resistance for demanding coil and capacitor insulation tasks.
Thermosetting silicone adhesive, non-corrosive
The Silicone Adhesive PTFE Tape adheres at room temperature, resists corrosion of the underlying metal, and maintains bond integrity over the specified temperature range.
High temperature rating
Continuous operating temperature up to 180°C (356°F) and UL recognition make it appropriate for sustained high-heat environments.
600V electrical rating and UL510A recognized
This 8.0 mil thick PTFE tape is is 600 volt rated and UL510A recognized (OARC2, File E17385), ensuring specification compliance in electrical assemblies.
8.0 mil total thickness for stability
The nominal 8.0 mil thickness balances conformability with mechanical strength and puncture resistance in assembly operations.
Easy application no activation required
This 3M PTFE Film Electrical Tape 60 is a pressure-sensitive adhesive that does not require solvents, moisture, or heat to activate, reducing process steps and cycle time.
Frequently Asked Questions
Is this tape a flame-retardant electrical tape suitable for coils?
Yes, it is flame retardant and specified for high-temperature coil insulation and related applications.
Does this product use a silicone adhesive PTFE tape system?
Yes, the tape uses a thermosetting, non-corrosive silicone adhesive on a PTFE film backing.
Is this material UL510A-rated PTFE tape for electrical use?
Yes, it is UL510A recognized (OARC2, File No. E17385) and meets the referenced commercial item description.
What is the effective thickness? Is this an 8.0 mil thick PTFE tape?
Yes, the tape’s nominal total thickness is 8.0 mil, providing the dielectric and mechanical properties required.
