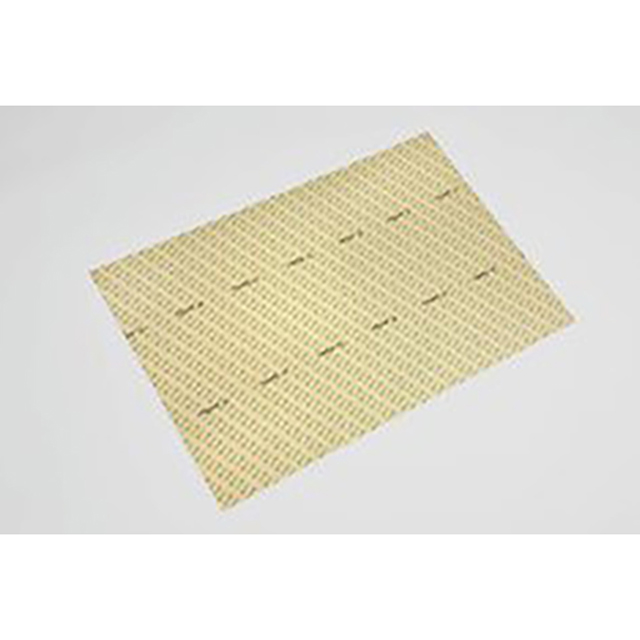

3M Double Coated Tape 9824 is a high initial tack double coated tape on a .5 mil clear polyester film (PET) carrier and with a 3.2 mil white 55-lb densified kraft (DK) paper liner. 3M High Tack Acrylic Adhesive 340 provides good adhesion to many metals, plastics and foams.
Product Specifications
| Manufacturer Part Number | 7010311948 |
| Back Side Adhesive Thickness(mil) | 1.3mil |
| Back Side Adhesive Thickness (mm) | 0.03mm |
| Core Size (Inch) | 3.000" |
| Core Size (mm) | 76.20mm |
| Overall Length (yd) | 250.0 yd |
| Overall Length (mm) | 228.60mm |
| Overall Thickness (mil) | 2.3mil |
| Overall Width (Decimal Inch) | 54.000" |
| Overall Width (cm) | 137.00cm |
| Primary Liner Thickness (mil) | 3.2 mil |
| Primary Liner Thickness (mm) | 0.08mm |
| Total Tape Thickness without Liner (mil) | 3.1 mil |
| Total Tape Thickness without Liner (mm) | 0.07mm |
| Face Side Adhesive Thickness (mil) | 1.3mil |
| Face Side Adhesive Thickness (mm) | 0.03mm |
| Primary Liner Color | White |
| Product Color | Transparent |
| Product Form | Roll |
| Product Type | Double Sided Tape |
Product Specifications
| Manufacturer Part Number | 7010311948 |
| Adhesive Type | Adhesive 340 |
| Core Size (Decimal Inch) | 3.000" |
| Master Size Length (mm) | 164.60mm |
| Overall Length | 250.000yd |
| Overall Thickness | 2.300mil |
| Overall Width (Decimal Inch) | 54.000" |
| Primary Liner | 55# Densified Kraft Paper (DK) |
| Primary Liner Thickness (mm) | 0.08mm |
| Product Color | Transparent |
| Product Number | 9824 |
| Product Type | Double Sided Tape |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
3M
Adhesive Type:
Adhesive 340
Core Size (Inch):
3"
Core Size (Decimal Inch):
3.0000"
Core Size (mm):
76.20mm
Master Size Length (Inch):
6-31/64"
Master Size Length (Decimal Inch):
6.4800"
Master Size Length (mm):
164.60mm
Color:
Transparent
Primary Liner Thickness (mm):
0.08mm
Overall Width (Inch):
54"
Overall Width (Decimal Inch):
54.0000"
Overall Width (cm):
137.00cm
Overall Length (yd):
250.000yd
Overall Length (mm):
228.60mm
Overall Thickness (mil):
2.300mil
interval quantity:
1
