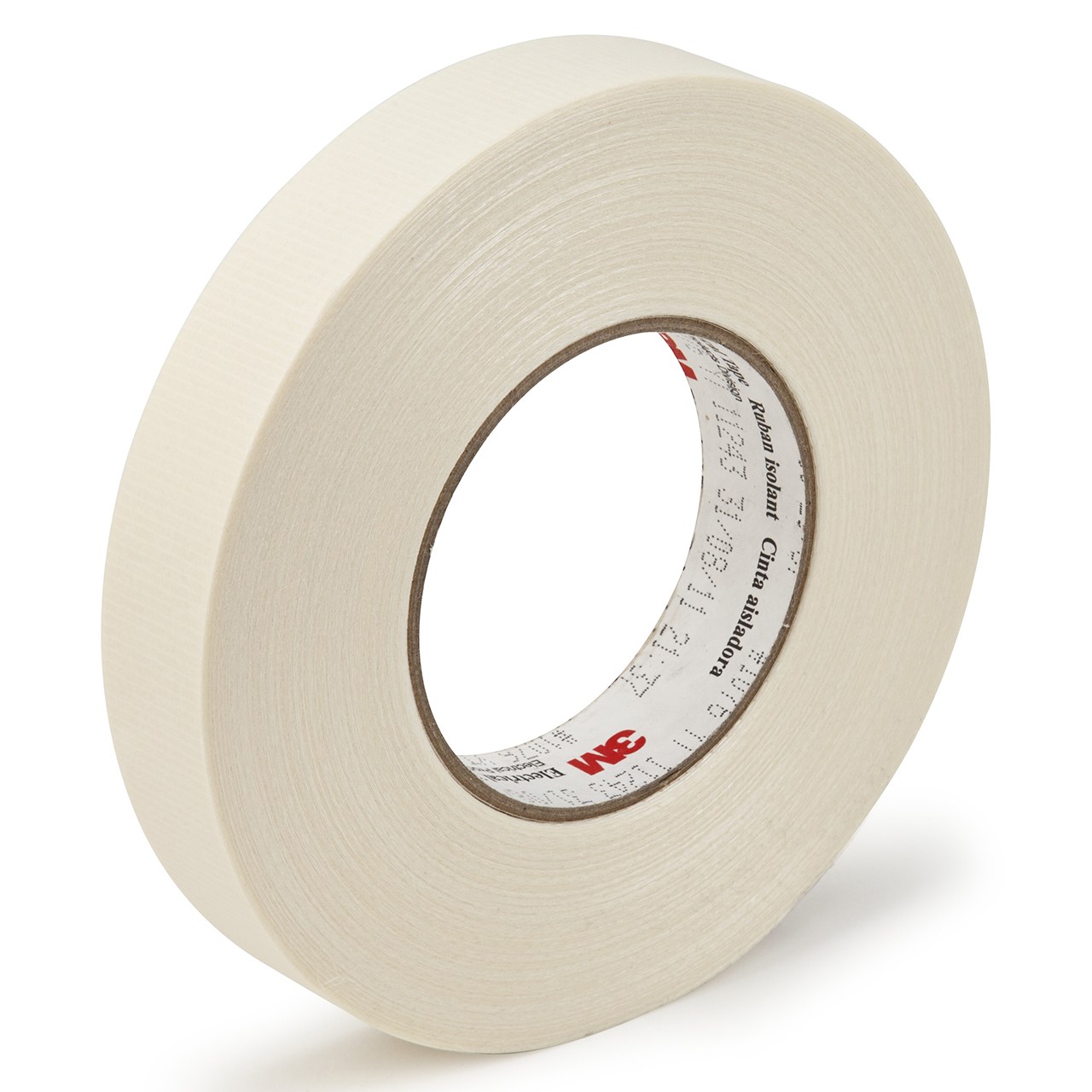

3M 7010350387 | 1076 5/8"X60YD 10.0 mil Thickness Electrical Tape

3M filament reinforced electrical tape 1076 is a 10 mil thick electrical filament tape. This tape is designed for oil filled distribution transformer applications and offers stable adherence even after long exposure to transformer fluids. The tape has electrical grade, paper backing that is reinforced with scrim glass filament and oil compatible, pressure sensitive, acrylic adhesive.

3M Tape 1076 has paper backing that offers complete saturation to reduce the potential of voids. The unique coating on this tape supports excellent bonding with diamond paper, insulation epoxy during the transformer baking process. It withstands a temperature range of 40 to 221 °F ( 40 to 105 °C) and it provides stiffness for excellent handling during coil winding operations. RoHS 2011/65/EU compliant‎.

• Electrical-grade paper backing and oil-compatible, pressure-sensitive, acrylic adhesive
• Woven, glass mat provides additional reinforcement and remains stable even after long exposure to transformer fluids
• Saturable backing provides air entrapment resistance that minimizes trapped air between the adhesive layers in the tape
• Withstands a temperature range of -40 to 221 °F (-40 to 105 °C)
• RoHS 2011/65/EU compliant‎
