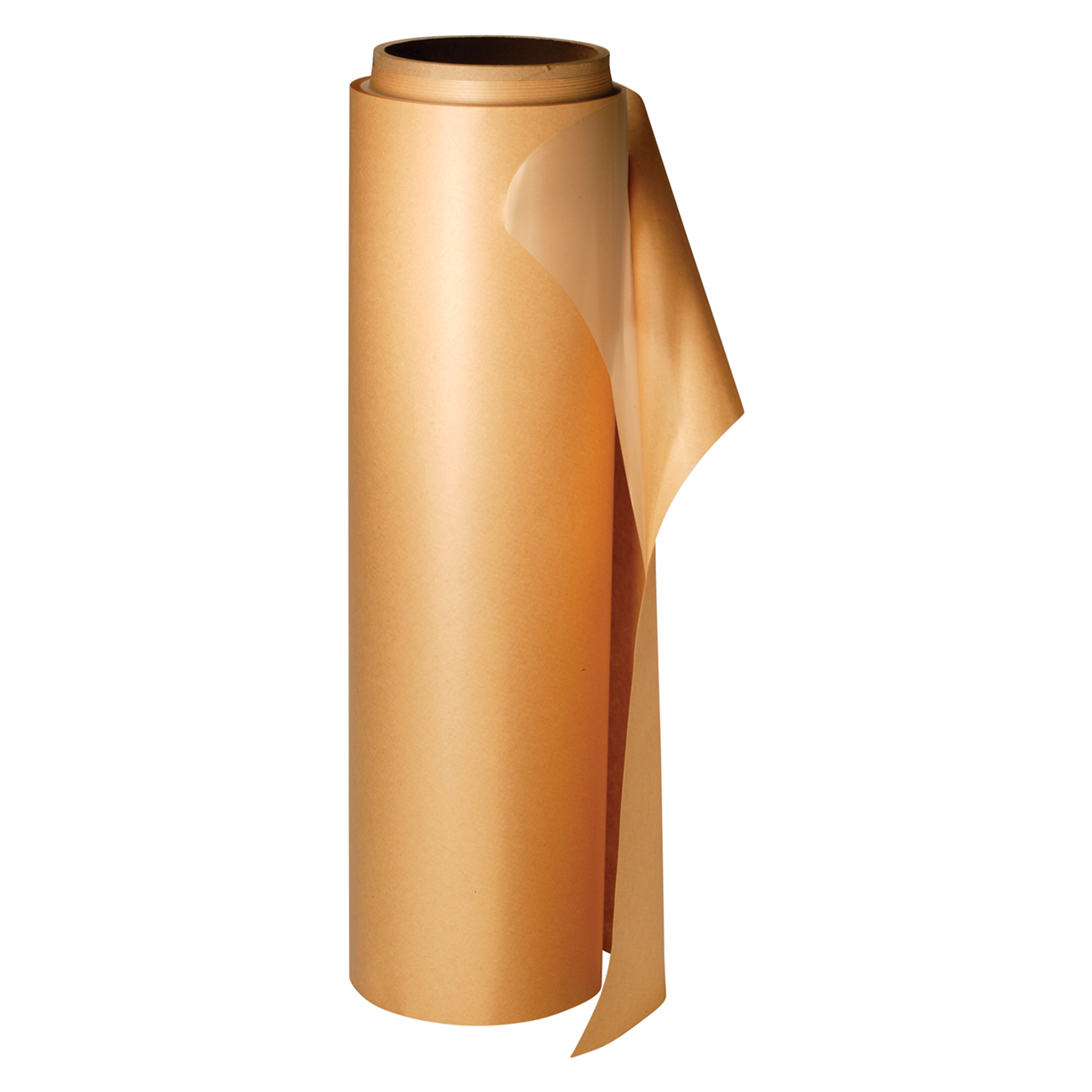

3M Thin Flexographic Mounting Tape 2205 is a 5 mil, double coated film tape with differential acrylic adhesives on a polyester film carrier with a polycoated kraft paper liner. This tape is specifically designed for the corrugated printing business to hold flexographic print plates to PVC saddles/carriers.
Features:
- 0.005 Inch (0.13 Mm) Double-Coated Tape Designed For The Corrugated Printing Business To Hold Flexographic Print Plates To Pvc Carriers/Saddles And Pet Carriers/Saddles
- Linered Side Of The Tape Has Crosshatched Pattern That Allows Air To Escape From Between The Tape And The Carrier
- Adhesive On Non-Linered Side Of The Tape Is Designed For Mounting Of Photopolymer Plates
- Excellent Holding Power On-Press With High Plate Side Adhesion
- Embossed Polycoated Kraft (Pck) Paper Liner
- Clean Plate Removal When Demounting Or Repositioning
Product Specifications
| Manufacturer Part Number | 7100011233 |
| Adhesive Type | Differential Acrylate |
| Overall Length (Decimal Inch) | 60.000yd |
| Overall Length (mm/cm) | 54.86mm |
| Overall Thickness (Decimal Inch) | 5.000mil |
| Overall Width (Decimal Inch) | 18.000" |
| Overall Width (mm/cm) | 457.20mm |
| Primary Liner | Paper |
| Primary Liner Thickness (mm) | 0.10mm |
| Product Color | Transparent |
| Product Number | 2205 |
| Product Type | Flexographic Plate Mounting Tape |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
3M
Adhesive Type:
Differential Acrylate
Color:
Transparent
Primary Liner Thickness (mm):
0.10mm
Overall Width (Inch):
18"
Overall Width (Decimal Inch):
18.0000"
Overall Width (mm):
457.20mm
Overall Length (yd):
60.000yd
Overall Length (mm):
54.86mm
Overall Thickness (mil):
5.000mil
