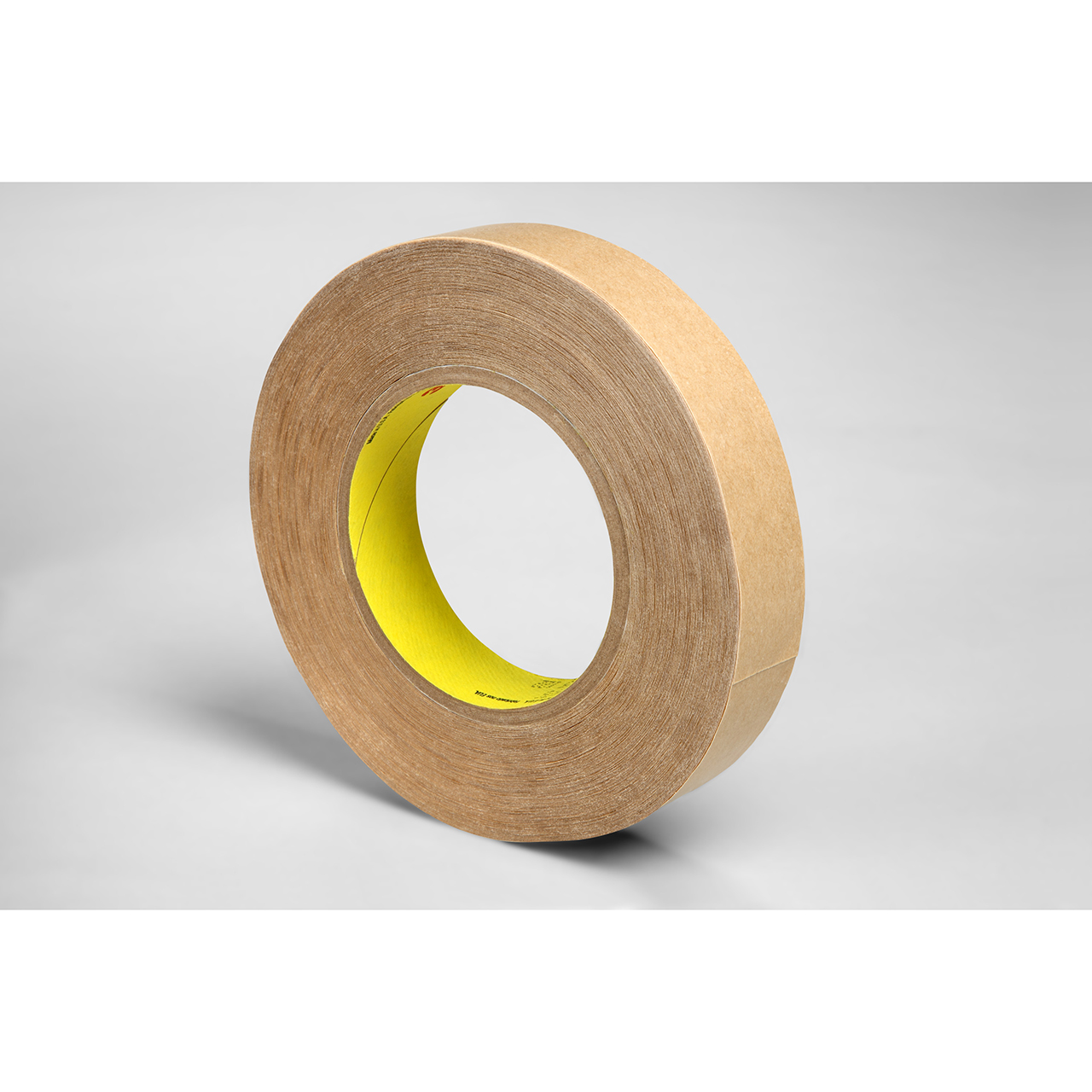

3M 7100115342 | 60.000yd Overall Length x 1.500" Width x 1.000mil Baking Thickness 9576 Splicing & Tabbing Tape - Transparent

3M double coated tape 9576 is a medium tack tape for general splicing and roll closing applications. This tape offers ultra-high peel strength and excellent shear strength for durability. It is conformable to irregular surfaces and offers excellent UV and heat resistance.

• 3M Double coated tape 9576 is a 4.0 mil double coated tape with a hand-tearable clear polypropylene carrier lined on both sides with 3M Adhesive 400. Once bonded, this tape provides excellent peel and shear strength-making it ideal for rigorous splicing applications and bonding plastics to metals. 3M double coated tape 9576 is mounted on a tan 60# densified kraft paper liner for ease in die-cutting applications.

• The medium-firm pressure sensitive acrylic adhesive system features an excellent balance of good initial adhesion (quick stick) and good shear holding power. The formulation gives a consistently strong bond across a range of temperatures, up to 165°F (75°C). A thin, tough, polypropylene carrier between the adhesive layers improves the handling and strength of the tape. By using a robust 60 lbs. densified kraft paper release liner, this tape provides reliable performance for industrial applications, such as die-cutting and automated dispensers.

• Web splicing
• Core starting
• General purpose bonding

• Medium tack double coated tape for roll-to-roll splicing, core starting and roll closing
• Excellent peel and shear strength to withstand rigorous splicing applications
• Bonds well to most substrates, including low surface energy plastics
• Excellent UV and heat resistance
• Conformable to irregular surfaces
• Double sided adhesion increases dimensional stability for easy handling
