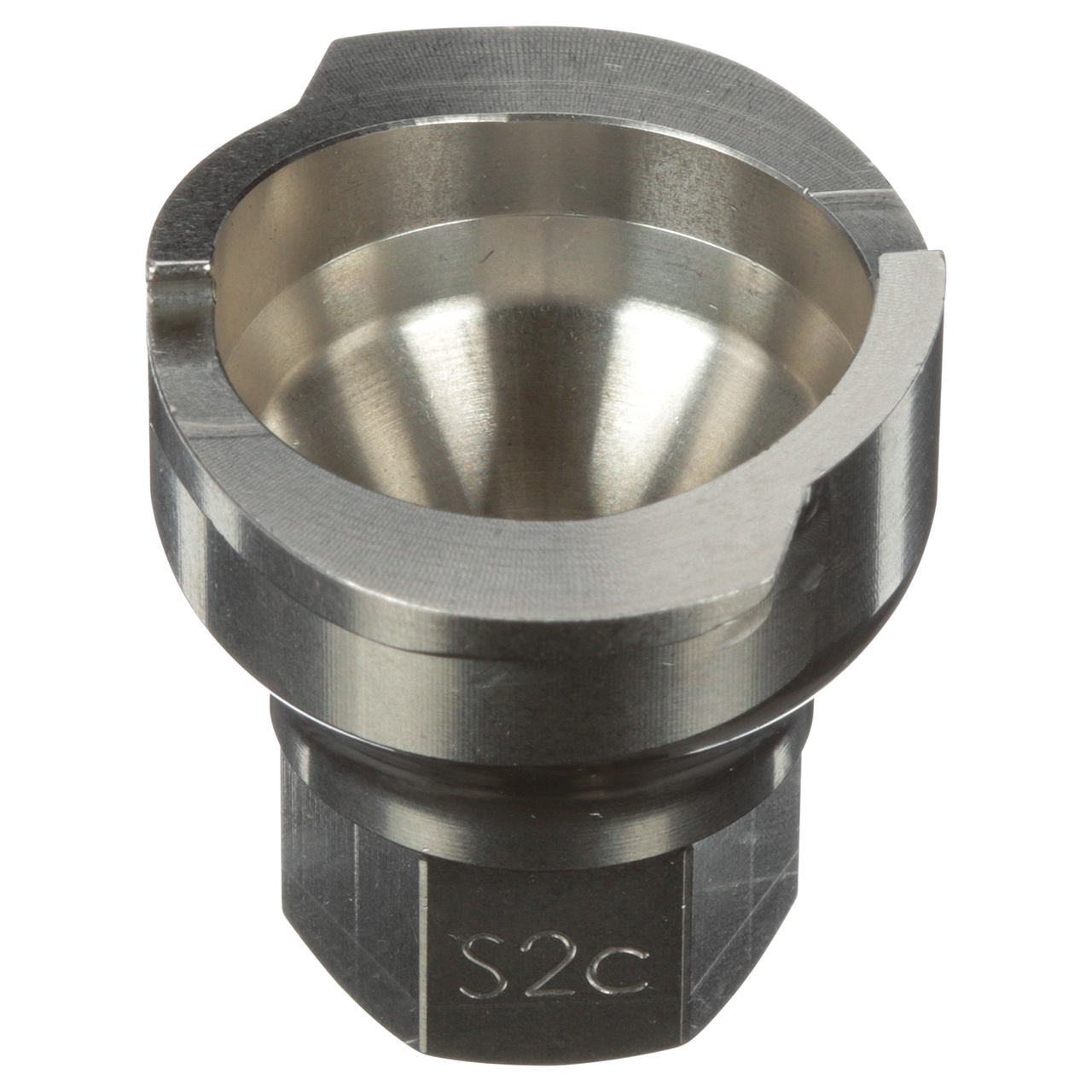

3M 7100135331 | 26503 PPS M16x1.5 Thread Adapter

3M PPS Series 2.0 Adapter provides four points of connection from lid-to-gun and converts typical spray guns into ones that work with the 3M PPS Series 2.0 Spray Cup System. Specifically designed adapters allow painters to use PPS with virtually any spray gun model. To use this adapter, remove the existing spray gun cup. Then simply thread the correct PPS Adapter into the spray gun.

The 3M PPS Series 2.0 Adapter converts a wide range of spray guns to be used with 3M PPS Series 2.0 the next generation of the highest performing disposable spray cup system. The adapter design provides four points of connection to the PPS Series 2.0 cup lid.  Stainless steel adapters are durable, resist solvents and are very easy to clean. 3M has designed a PPS Series 2.0 Adapter for your specific spray gun model.

3M PPS Series 2.0 features hard plastic cups, 1/4-turn lid locking system and flexible, collapsible liners.

The 3M PPS Series 2.0 Spray Cup System is the latest, best-performing disposable spray cup system. The system has been redesigned from the connection to the cup, has been improved in six ways offering a complete disposable spray cup solution for mixing/measuring, filtering, spraying and for temporary sealing and protection of sprayable coatings.

Every PPS Series 2.0 lid features a quarter-turn lid locking system to help reduce paint build-up and possible contamination. Additionally, each lid and liner kit contains a new hard cup which also features universal mixing ratios built into the cup, eliminating the need for separate inserts and helping ensure the most accurate mix possible.

3M PPS Series 2.0 makes it even easier to mix directly in the cup. If you're mixing on a scale, use the “max fill" notation on each cup to fit the maximum amount. Cups include a clear access window to help you see how much material is left while spraying. The window also allows you to hold the liner for easier, cleaner lid removal. This is especially useful during refills or tinting.

3M PPS Series 2.0 Lids feature a domed geometry that allows up to 3 oz (90ml) of material below the filter during on-demand spraying. This reduces sputter and other inconsistencies in spray performance. Lids also feature a wider spout for improved fluid flow. A built-in full-diameter filter delivers the highest quality filtration no assembly needed.

A new adapter design provides a four-point connection and a wider 360 degree platform to ensure a stable, reliable lid-to-spray-gun connection. Larger sealing plugs do more than just seal. For instance, you can turn the cup upside down and use the new sealing plug as a base for temporary sealing and protecting, helping keep the built-in filter wet and reducing the need for replacement lids.

Be sure to consult the paint or coatings manufacturer for the recommended filter mesh size.

Using the right size cup for every repair not only reduces your cost per lid and liner, it can reduce the likelihood of overmixing.

After spraying, the painter can use the sealing plug to seal and protect the paint or coating for later use or simply discard the lid and liner, leaving only the adapter and spray gun to clean. Discard the disposable lid and liner in accordance with local government requirements. Use a small amount of solvent for cleaning the spray gun and the PPS Adapter. Shops using PPS Series 2.0 often experience a 70% reduction in cleaning solvent usage. Most guns can be cleaned with less than 3 oz. of solvent.

Because PPS Series 2.0 is a closed system, you can spray in any orientation to a full 360 degree. This allows the painter to spray consistently at 90 degree to the part, no matter how the part is positioned. It makes material transfer more consistent, limits paint overspray and reduces paint consumption.

Because the painter uses a new disposable lid and liner for each mix, there is less risk of outside contamination. Using a fresh lid and liner with each paint job, rather than washing out reusable components, often improves overall productivity in prep and clean-up time by as much as 50%.

3M invented disposable cups for paint application and will continue to re-invent based on customer's feedback. What customers have said is that trust and confidence in their disposable paint cup system is king. The consistent performance of the 3M PPS System has earned the trust of experts in one of the most important parts of a repair or manufacturing process paint application. PPS Series 2.0 is the culmination of more than 15 years of painter feedback and a true next generation all-in-one disposable painting system that produces cleaner jobs, saves on paint consumption and reduces solvent usage by up to 70%.

Features:

• Adapter converts virtually any cup spray guns into ones that work with 3M PPS Series 2.0, next generation, highest performing disposable spray cup system
• Provides a four-point lid-to-spray-gun connection and a wider 360 degree platform for stability and reliability
• Stainless steel adapter offers exceptional durability and resistance to solvents
• Wider bowl design makes adapter easy to clean
• All-in-one disposable cup solution reduces chance of outside contamination, delivers consistent material transfer for improved quality and reduced paint consumption
• 3M PPS reduces cleaning solvent consumption by up to 70%
• 3M PPS helps painters improve quality, lower material cost, reduce solvent consumption and improve productivity with less mess and easier use than traditional metal/plastic paint cup systems
