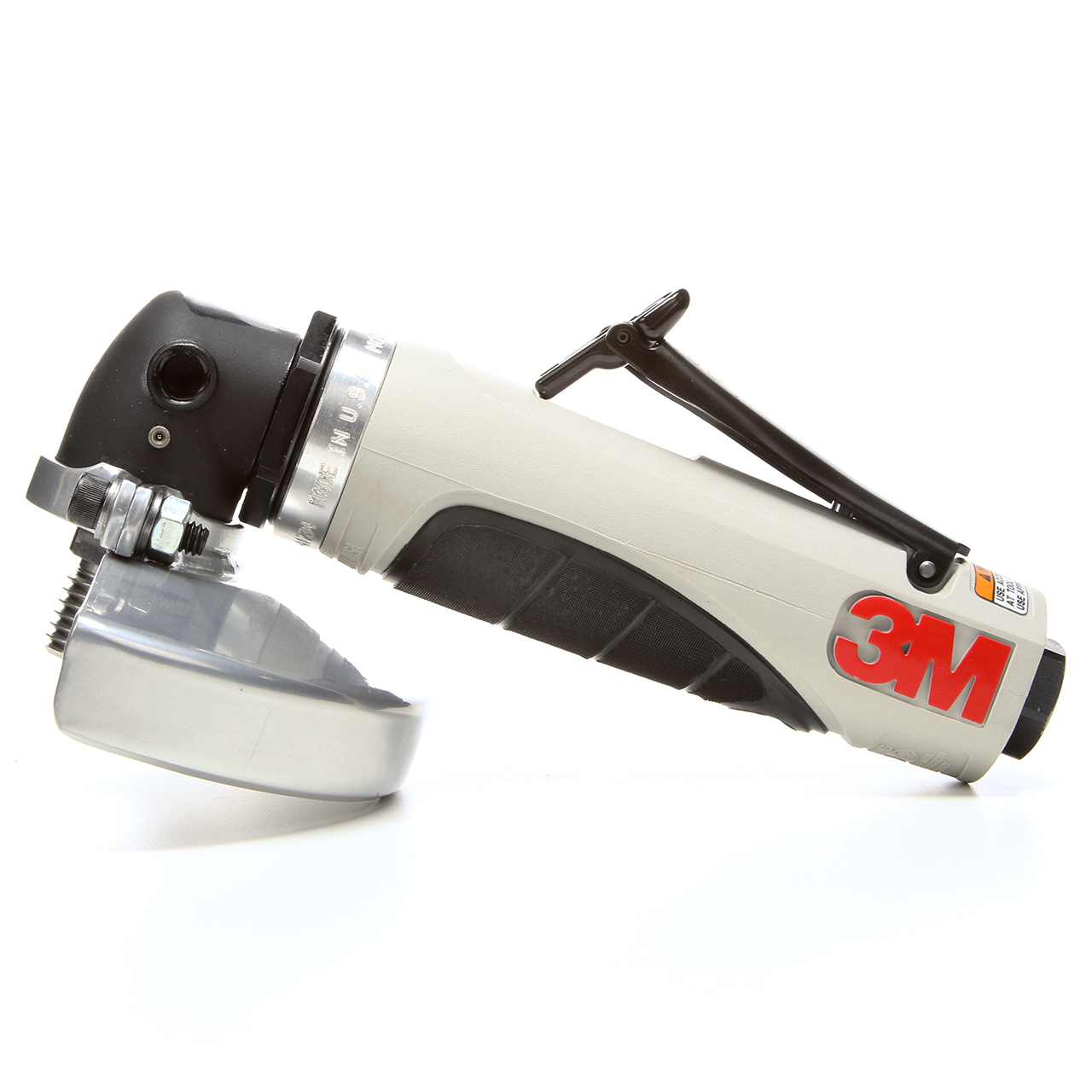

3M 7100142462 | 28403 4" Diameter x 3/8-24 EXT Thread x 12.5 in OAL 12000.0 RPM Angle Grinder

$967.27
Ships:
From Manufacturer
interval quantity:
1
Ships:
From Manufacturer
SKU:
90016436
UPC:
 00051141284033
Weight:
4.01 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Having the right tool system for the job is an essential part of any application. 3M engineered the 3M Grinders to power abrasives and accessories making your cutting, grinding, blending or finishing jobs fast, easy and efficient.

Balancing Power and Comfort

The 3M Grinders are pneumatically powered with a reliable. High output motors allow operators to apply significant pressure without interrupting tool performance, which results in the work getting done faster. 3M Gripping Material enables a firmer hold on the tool, minimizes vibration, insulates the operator from possible hot or cold touch temperatures. Altogether, these characteristics enhance operator comfort and control and make these lightweight, powerful tools a user-friendly option for tackling tough metalworking applications. A removable and repositionable side handle means operators can run the grinder right or left handed.

Grinder Variations

4" grinders with a 3/8 - 24" EXT thread are commonly used in ship-building and other applications that require smaller abrasives. They're great for weld leveling and blending, metal preparation and plasma cut clean-up. 4-1/2" grinders with a 5/8 - 11" EXT thread are great for metal fabrication applications including grinding, blending, weld leveling, metal prep and pipe notching. Both grinders are offered in standard or extended lengths. Typically, extended versions are ideal for hard-to-reach areas, the addition of a second grip places the operator's hand further from the grinding area for safer operation.

Use with Type 27 Abrasives

3M engineered the 3M Grinders to be used with Type 27 wheels or discs, which have a depressed center. A depressed center enables the flange to sink into the abrasive, so the abrasive may be used for grinding and cutting applications and not risk marring or gouging the workpiece. The accompanying steel guard on the grinder has an open face and can be re-positioned for greater visibility of the work area. Some Type 27 abrasives will have a threaded hub that mounts directly to the grinder, while other Type 27 abrasives require flanges to mount to the tool. For optimal safety, operators should always read and follow manual safety instructions and ensure the tool's operating speed does not exceed the maximum RPM imprinted on the tool.

Altogether, the 3M Grinders are powerful and reliable, designed to help you tackle your toughest metalworking applications.

Features:

  • Gripping Material helps reduce vibration and enhance operator comfort
  • Steel guard may be repositioned for better visibility
  • Side handle may be removed or repositioned to accommodate right-hand or left-hand use
  • Exhaust systems direct exhaust air away from workpiece and operator for reduced surface contamination and optimal operator comfort and safety

Product Specifications
Manufacturer Part Number7100142462
Legacy SKU60440243537
Overall Diameter (Inch)4.0"
Overall Diameter (mm)101.6mm
Overall Height (Imperial)4.63"
Overall Height (cm)11.75cm
Overall Length (Inch)12.5"
Overall Length (cm)31.75cm
Overall Width (Inch)7.44"
Overall Width (cm)18.9cm
Air Inlet Thread3/8" NPT
Maximum Speed12000.0 rpm
Motor HP (W)1 (744)
Tool Diameter (Inch)100.0"
Tool Diameter (mm)100.0mm
ApplicationSurface Finishing
Equipment TypeGrinder
Power SourcePneumatic
Power TypePneumatic
Product FormPower Tools
Product TypeRight Angle Grinder
Thread Size3/8-24 EXT

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
