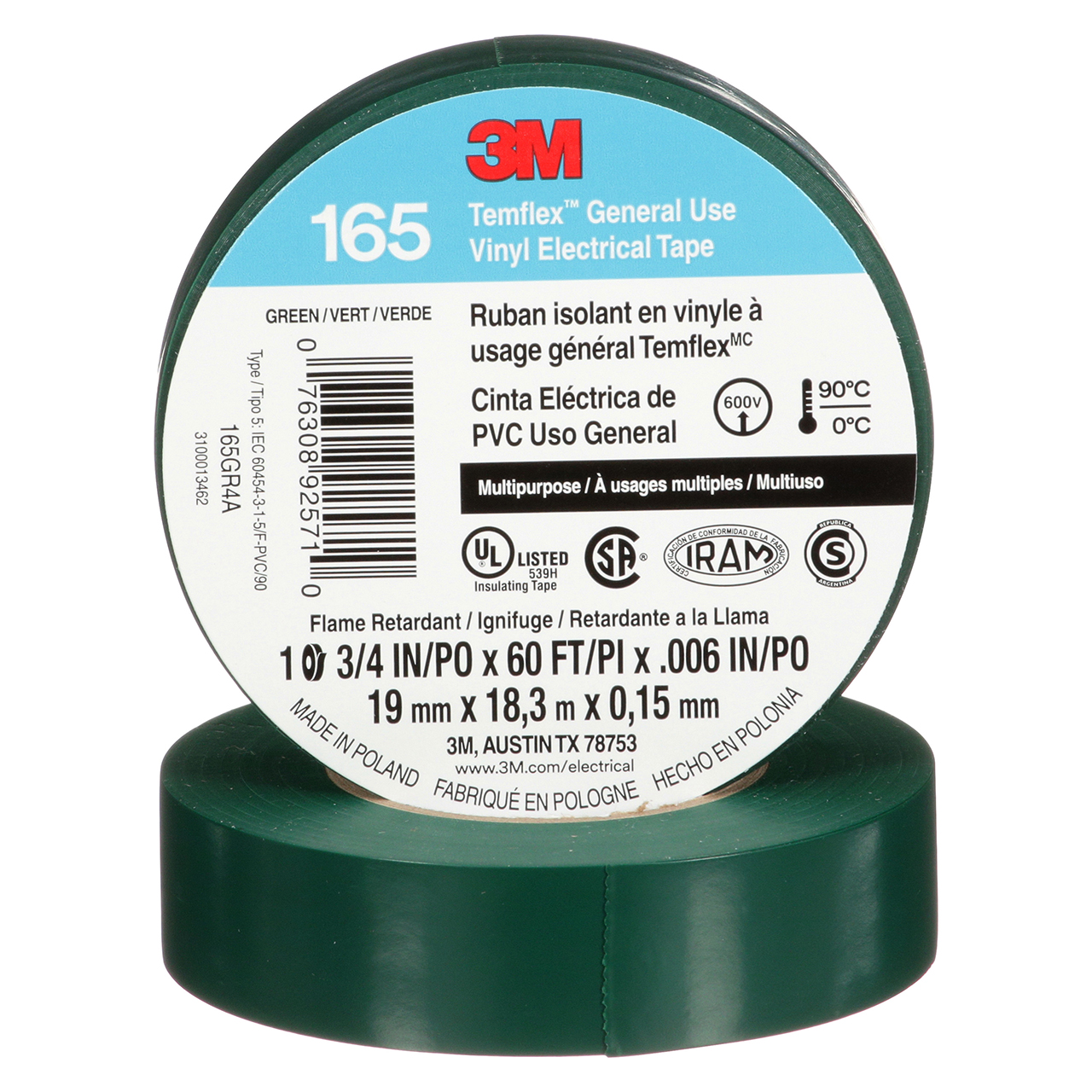

3M 7100169430 | 165GR4A Temflex 60' OAL x 0.750" Width x 0.006" Thickness Electrical Tape

$1.64
Ships:
From Manufacturer
Brand:
3M
Length (ft):
60'
Width (Inch):
3/4"
Width (Decimal Inch):
0.7500"
Width (mm):
19.05mm
Color:
Green
interval quantity:
10
Ships:
From Manufacturer
SKU:
96001950
UPC:
 00076308925710
Weight:
18.60 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

3M Temflex vinyl electrical tape 165 is a good quality, multi-purpose vinyl insulating tape. It has great resistance to moisture and varying weather conditions. It is a polyvinyl chloride (PVC) tape that is flame-retardant and conformable. 3M Temflex 165 tape provides great mechanical protection with minimum bulk. It is a UL listed and CSA certified"Insulating tape." No solvents are used in the manufacturing process.

3M Temflex Vinyl electrical tape 165 is a multi-purpose, flame-retardant vinyl insulating tape. It is designed to perform in ambient temperatures up to 90 °C (194 °F) while remaining conformable for cold weather applications down to 0 °C (32 °F). These properties make it an excellent choice for use in industrial, commercial and residential environments where a flame retardant, sunlight and cold resistance rating is required (UL510). Additionally, the combination of an elastic PVC backing and pressure-sensitive, rubber-based adhesive provides electrical and mechanical protection with minimum bulk. 3M Temflex vinyl electrical tape 165 is UL and CSA listed, VDE certified and RoHS compliant.

Features
  • 3M Temflex vinyl electrical tape 165, flame retardant, pressure-sensitive adhesive, electrical and mechanical protection, grey color, 6 mil, 3/4" x 60 ft (19mm x 18m), 100 Rolls/Case
  • For Indoor And Protected Outdoor Use: Use where it is required to have a more sustainable, vinyl electrical tape with no volatile organic compounds (VOCs)
  • Primary Insulation: Use as insulation on applications up to 600 V at maximum temperature of 80 °C (176 °F) and minimum temperature of -10 °C (14 °F) on joints and splices in wires and cable (UL510)
  • Overwrap Build-Up: For the harnessing and bundling of wires and cables where build-up is needed and minimum bulk is required
  • CSA C22.2 No.197: Primary insulation to 1000 V at maximum temperature of 90 °C (194 °F) and minimum temp of 0 °C (32 °F) on joints and splices in wires and cables in accordance with the canadian electrical code, Part 1
  • IEC 60454-3-1: Classification Type 5, designation IEC 60454-3-1-5/F-PVCP/90 for thermal index of 90°C (194°F) and a minimum temperature rating of 0°C (32°F)
  • Certification: UL and CSA listed, VDE certified and RoHS compliant
  • STABILITY: 5-year shelf life from the date of manufacture

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
