Description

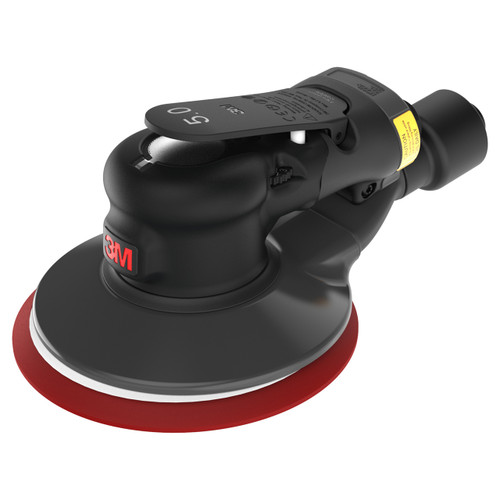

The 3M 7100264068 Xtract 3/16" orbital sander is a pneumatic, dust-aware 3M orbital sander solution intended for industrial finishing and heavy-duty shop use. This 3M Xtract sander, a component of the 3M Xtract sanding system, combines a precision-balanced 0.8 HP motor with a self-generated vacuum to significantly reduce airborne dust. The tool employs a 0.188-inch orbit and a 5-inch pad to achieve high cut rates while maintaining control during finish work. The rear threaded vacuum attachment connects quickly to a 1" external vacuum hose or the 3M Xtract Portable Dust Extractor, capturing up to 97% dust. This orbital sander with dust collection is built to last, thanks to its durable aluminum housing and balanced internals. Recommended Applications include metal fabrication, primer Sanding, gelcoat, and composite work, as well as woodworking, all require particulate control. Technicians and production managers prefer the 3M random orbital sander when cleaner sanding, longer abrasive life, and consistent throughput are important. This tool is for industrial/occupational use only and ships with the Hookit clean sanding disc pad for immediate integration into your Xtract system.
Product Features and Benefits
Self-generated vacuum for efficient dust extraction
The 3M orbital sander generate their own Venturi vacuum to extract dust at the source, lowering airborne particles and increasing operator visibility. When combined with 3M Xtract Net Discs and a portable extractor, the system can collect up to 97% of sanding dust.
Powerful, precision-balanced 209 W (0.28 HP) motor
The 3M Xtract Sander has a balanced motor that provides smooth, whisper-quiet operation with the torque required for consistent material removal. Precision balance reduces vibration, resulting in better control and longer tool life.
0.188-inch orbit and 5" pad for aggressive cutting
The 4.763 mm orbit delivers high cut rates suitable for aggressive stock removal, while the 5" pad provides broad coverage. This combination is effective for coarse-to-medium grit operations and fast finishing when paired with proper abrasives.
Rugged, serviceable construction for shop-floor use
The 3M random orbital sander's lightweight aluminum housing and tough internals can withstand extended use in industrial settings. The rear threaded port and Hookit pad make it easier to attach, maintain, and integrate with dust extraction systems.
Part of the Xtract system for best performance
Optimized to work with 3M Xtract Net Discs and 3M Xtract Portable Dust Extractor for improved cut rate and abrasive life. Using the complete system yields more consistent results than a tool-only approach.
Product Specifications
Manufacturer Part Number | 7100264068 |
Legacy SKU | 60440244022 |
Orbit Diameter (Inch) | 0.188" |
Orbit Diameter (mm) | 4.763mm |
Maximum Speed | 12000.0 rpm |
Tool Diameter (Inch) | 5.0" |
Tool Diameter (mm) | 127.0mm |
Voltage | Non Pertinent |
Application | Orbital Sanding |
Pad Included | Hookit Clean Sanding Disc Pad |
Power Source | Pneumatic |
Product Type | Random Orbital Sander |
Vacuum Type | Self-generated Vacuum |
Frequently Asked Questions
What is a 3M random orbital sander, and how does the Xtract differ?
A random orbital sander uses an orbital motion to reduce swirl; the 3M 7100264068 adds a self-generated vacuum for integrated dust extraction.
Can this orbital sander with dust collection connect to existing vacuum systems?
Yes, the rear threaded port accepts a 1" external vacuum hose or connects to the 3M Xtract Portable Dust Extractor.
Is this one of the 5-inch orbital sanders suitable for metal fabrication and composite work?
Yes, the 5" pad and 4.763 mm orbit make it suitable for metal fabrication, primer sanding, gelcoat, and composite applications.
What is a random orbital sander's advantage when paired with net discs and extraction?
Paired with net discs and extraction, it reduces clogging, improves the cut rate, and captures the majority of dust for a cleaner process.
