Unlock the full potential of your CNC machining operations with our cutting-edge 5th Axis CNC Dovetail Fixtures. Designed to revolutionize your precision machining processes, this fixture is engineered to meet the highest standards of accuracy and efficiency.
Our CNC Dovetail Fixture is meticulously crafted to ensure exceptional precision, allowing you to achieve tight tolerances and exacting specifications in your workpieces.
This fixture is compatible with a wide range of CNC machines, making it a versatile addition to your machining setup.
Achieve complex, multi-sided machining tasks with ease, reducing setup time and increasing production efficiency.Dovetail Design:
The unique dovetail design offers superior workholding strength, stability, and rigidity. Say goodbye to vibration and chatter, and enjoy a smooth machining process.
Designed with the operator in mind, our CNC Dovetail Fixture ensures a rapid and hassle-free setup. Spend less time on preparation and more time on machining.
Crafted from high-quality materials, this fixture is built to withstand the rigors of the manufacturing environment. Its a long-term investment that will continue to deliver exceptional performance.

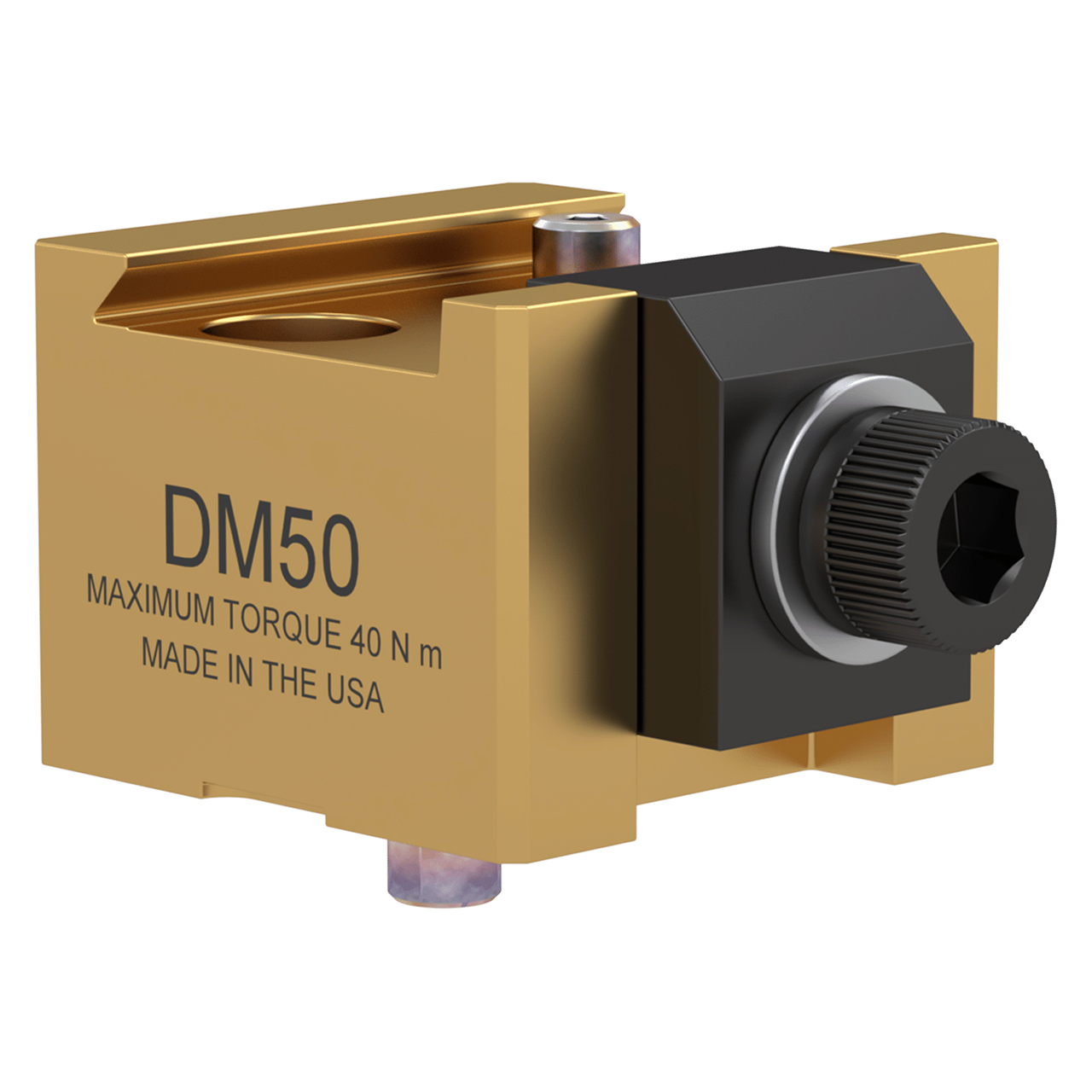

| Manufacturer Part Number | DM50 |
| Size (mm) | 50.00 x 50.00 x 38.00mm |
| Crate Dimensions (Inch) | 4" x 4" x 3" |
| Dovetail Depth (mm) | 5.08mm |
| Material | Steel |
| Series | 4100 |
| Product Type | Large Dovetail Fixture |
A precision locating pin ensures the stock is centered in the fixture while ensuring the stock cannot be forced out of the fixture during machining.
The locating pin also provides high repeatability for in process inspection / movement from machine to machine.
All 5th Axis products utilize a 45 degree dovetail angle.
Dovetails provide equal in and down force, meaning your parts are held more stable than any other workholding method.
Minimal torque is required. If you need compact workholding with high repeatability and ultimate precision, then you need to use dovetail workholding.
Dovetailing reduces the amount of material you need to purchase via traditional clamping methods.
Not only do you waste less of your stock, but dovetailing also reduces part deformation due to excessive torque; dovetails spread clamping force more evenly through the part and use down-force instead of lateral pressure.
