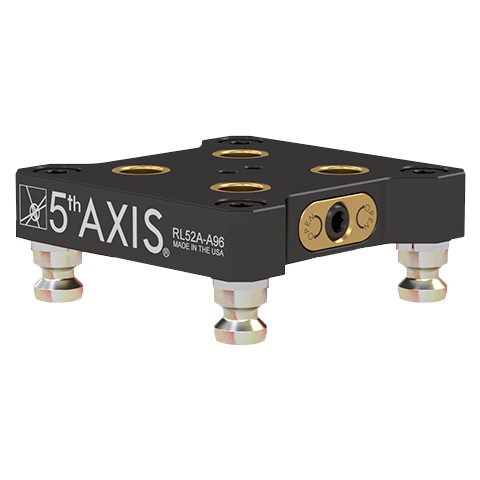

5th Axis RL52A-A96 | RockLock 96.00mm to 52.00mm Adapter with PS20F Pull Studs - Aluminum - 5" x 5"

Description

The 5th Axis RL52A-A96 96 mm to 52 mm RockLock adapter is a precision-made solution designed to seamlessly convert 96 mm RockLock mounting systems to a 52 mm RockLock interface. Built from high quality aluminum, this 5 x 5 aluminum RockLock adapter plate ensures a lightweight yet rigid structure for stable workholding performance. The 5th Axis RL52A-A96 adapter supports efficient integration within RockLock quick-change adapter 96 mm systems, enabling faster setup transitions and reduced machine downtime. With a compact size of 124.0 mm x 124.0 mm x 25.0 mm, it delivers a balanced combination of strength and space optimization for modern machining environments. This 52 mm RockLock adapter plate is ideal for machinists seeking precision alignment and repeatability across multiple setups. Made for compatibility, the 96 mm RockLock mounting adapter maintains secure clamping and consistent positioning under demanding operations. Its robust construction enhances durability while supporting high-accuracy machining workflows. The adapter is particularly useful in applications requiring quick pallet changes without compromising stability. Engineered for performance, it integrates seamlessly into advanced 5-axis machining setups. The precision-ground surfaces ensure optimal contact and reduced vibration during operation. This adapter plate is a reliable choice for improving productivity and workflow efficiency. Whether used in prototyping or production, it delivers consistent and repeatable results. The 5th Axis RL52A-A96 ensures dependable performance in high-precision machining environments.

Product Features and Benefits

96 mm to 52 mm Conversion Capability

The 5th Axis RL52A-A96 96 mm to 52 mm RockLock adapter enables seamless system compatibility between different RockLock sizes.

Lightweight Aluminum Construction

This 5 x 5 aluminum RockLock adapter plate offers strength and reduced weight for efficient machining performance.

Precision RockLock Mounting

The 96 mm RockLock mounting adapter ensures accurate alignment and repeatability in high-precision applications.

Quick Change Integration

Designed as a RockLock quick-change adapter 96 mm, it supports rapid setup changes and minimizes downtime.

Compact And Durable Design

The 52 mm RockLock adapter plate features a compact footprint while maintaining rigidity for consistent machining results.

Frequently Asked Questions

What is the purpose of the 5th Axis RL52A-A96?

The 5th Axis RL52A-A96 96 mm to 52 mm RockLock adapter is used to convert 96 mm RockLock systems to a 52 mm interface.

What material is the 5th Axis RL52A-A96 adapter made from?

This 5th Axis RL52A-A96 adapter is made from high-quality aluminum for durability and lightweight performance.

Is this adapter compatible with quick change systems?

Yes, the RockLock quick-change adapter's 96 mm design allows fast and efficient setup changes.

What are the dimensions of this adapter plate?

The 52 mm RockLock adapter plate measures 124.0 mm x 124.0 mm x 25.0 mm.

Where is the 96 mm RockLock mounting adapter typically used?

The 96 mm RockLock mounting adapter is commonly used in precision machining setups requiring repeatability and stability.

Technical Files

2D Drawing
