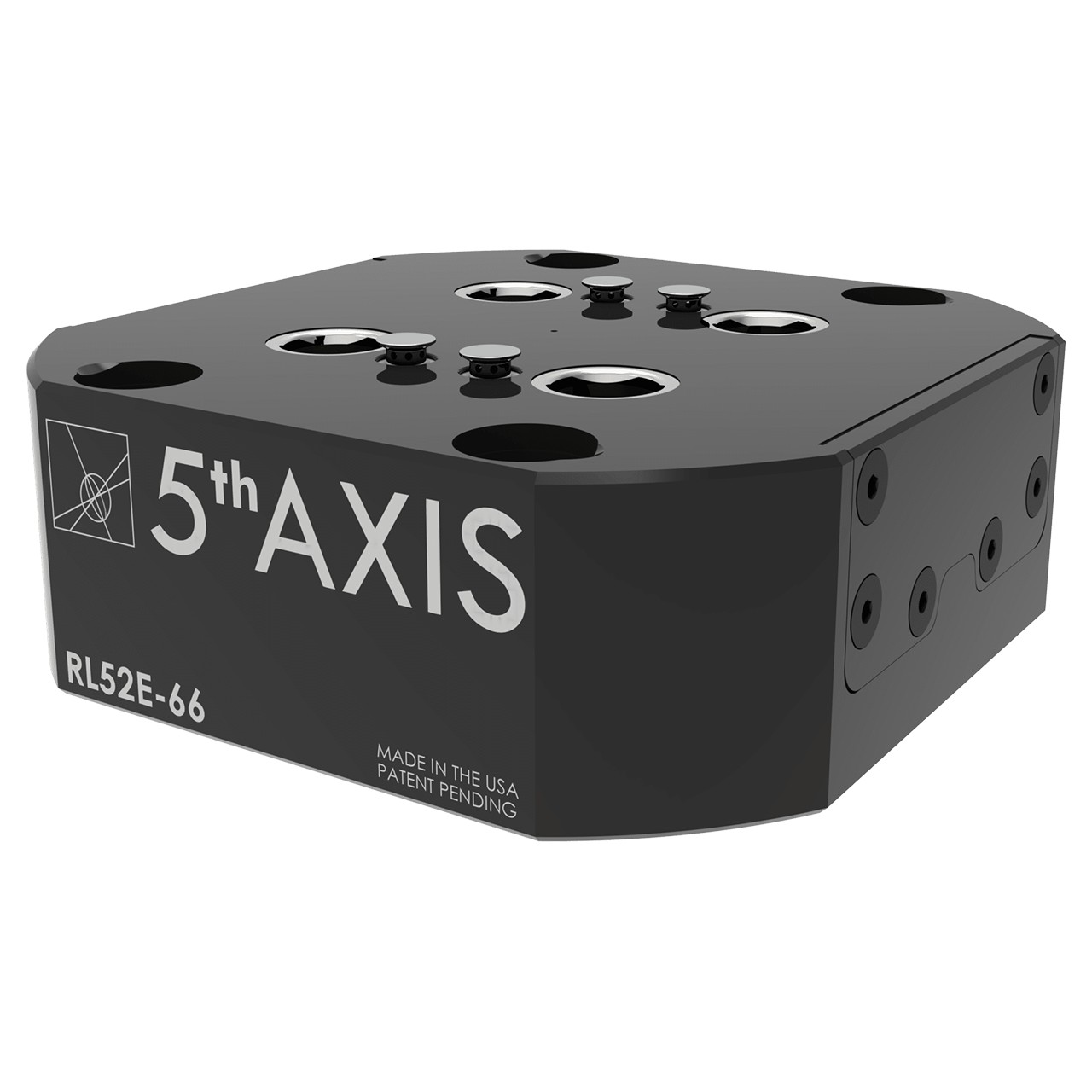

StreamlineWorkflow with Our Game-Changing Automation chuck. Patent pending ejectors help lift the tooling seamlessly out of the chuck, eliminating any resistance the robot will face. Those same ejectors provide a strong continuous air blast for chip and coolant management. This is one of the most often overlooked complications to true lights out manufacturing and automation. With that constant air blast, the chuck can also provide this system with clamp/unclamp confirmation. If the tooling errors out or misloads you can be notified immediately.
Features:
- Streamline Your Workflow with Our Game-Changing Automation chuck.
- Patent-pending ejectors lift tooling seamlessly out of the chuck, eliminating robot resistance.
- Continuous air blast for effective chip and coolant management.
- Addresses a commonly overlooked complication in lights-out manufacturing and automation.
- Provides clamp/unclamp confirmation with the constant air blast.
- Enables immediate notification in case of tooling errors or misloads.
| Manufacturer Part Number | RL52E-66 |
| Size (Decimal Inch) | 4.950" x 4.950" x 3.000" |
| Product Type | Pneumatic Chuck |
Overview
Robust Automation Hardware
RockLock automation hardware features industry standard 52mm and 96mm spacing. Pallet loading without the need for a pallet!
The benefit of fixture exchange is the robot programming. Because the robot is always picking up from the same point, there is no need for different grippers or changing the robot program based on individual parts.

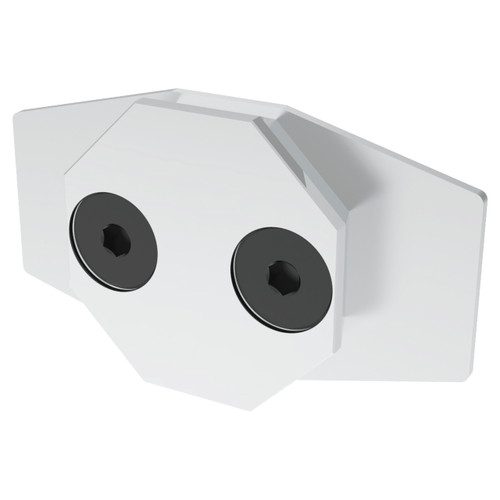

Transport Cleats
Low profile cleats are offered in two weight capacities 12kg and 25kg. Create new fixtures or easily retrofit and add to new top tooling setups to your project with ease.
Pneumatic Chucks
Pneumatic RockLock receiver chucks come with industry standard 52mm or 96mm mounting, along with bottom or side air-port options. Lifters on the unit assist robot in picking and placing the tooling, and can also provide a burst of clean air to remove chips.
Tailored Grippers
5th Axis grippers are offered in 12kg and 25kg options compatible with the low profile cleats and RockLock Products. The grippers have a high quality Schunk body and 5-axis machined hardened gripper fingers for durability.
