5th Axis RL96A-6760 | RockLock 96 mm Low Profile Base - Aluminum - 6" x 7"

Description

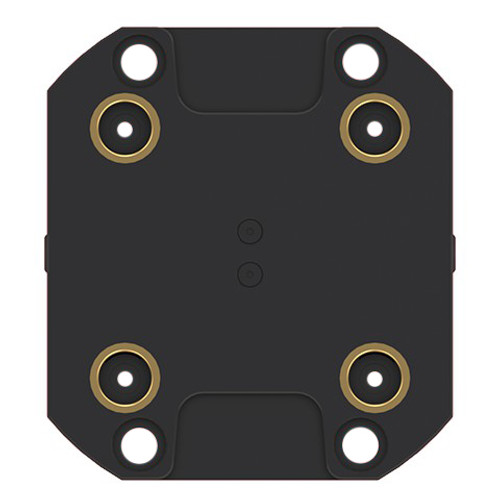

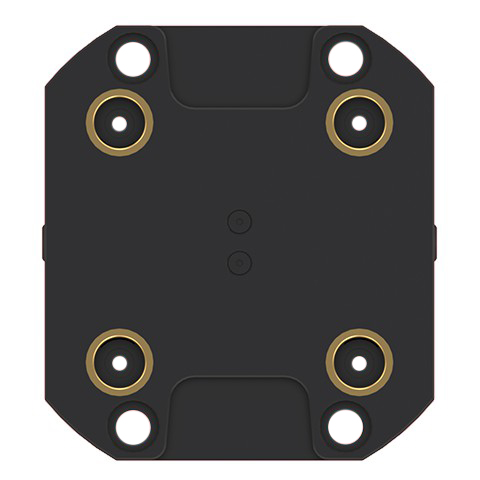

The 5th Axis RL96A-6760 RockLock 96 mm aluminum base is a precision-engineered 6 x 7 inch low-profile base plate made for advanced machining and fixture setups. Built from high-quality aluminum, this aluminum fixture mounting base offers an optimal balance of strength and lightweight performance. It is specifically made to integrate seamlessly into the RockLock quick-change system base, allowing for fast and repeatable fixture changes. The compact design supports space-efficient setups while maintaining structural rigidity. Featuring a 60-degree mounting pattern base, it ensures even load distribution and secure attachment during machining operations. The 96 mm pull stud base plate configuration enhances compatibility with RockLock systems, improving operational efficiency. With dimensions of 174 mm x 158 mm x 30 mm, it provides a stable foundation for various workholding applications. The 4x M12 mounting hole base allows secure fastening and reliable positioning on machine tables. Designed with a 170.11 mm PCD mounting base, it ensures precise alignment and repeatability. This base plate is ideal for CNC machining environments where accuracy and quick setup changes are critical. The low-profile design reduces stack height, improving tool access and machining performance. It is suitable for a wide range of fixture configurations and machining operations. The durable aluminum construction ensures long service life and resistance to wear. This system enhances productivity by minimizing downtime during fixture changes. The 5th Axis RL96A-6760 is a reliable solution for modern workholding systems.

Product Features and Benefits

Low Profile Design

This 6 x 7 inch low-profile base plate improves tool access and machining efficiency.

RockLock System Compatibility

The RockLock quick-change system base enables fast and repeatable fixture changes.

Durable Aluminum Construction

This RockLock 96 mm aluminum base offers strength with lightweight performance.

Precision Mounting Pattern

The 60-degree mounting pattern base ensures balanced load distribution and stability.

Secure Mounting Configuration

The 4x M12 mounting hole base provides reliable and firm attachment.

Accurate Alignment Support

The 170.11 mm PCD mounting base ensures consistent positioning and repeatability.

Frequently Asked Questions

What are the dimensions of the 5th Axis RL96A-6760?

This 6 x 7 inch low-profile base plate measures 174 mm x 158 mm x 30 mm.

What material is this base plate made from?

This RockLock 96 mm aluminum base is made from durable aluminum.

Is this compatible with RockLock systems?

Yes, it is designed as a RockLock quick-change system base for easy integration.

What mounting configuration does it use?

The 60-degree mounting pattern base includes a 4x M12 mounting hole base.

What applications is this base suitable for?

It is ideal as an aluminum fixture mounting base for CNC machining setups.
