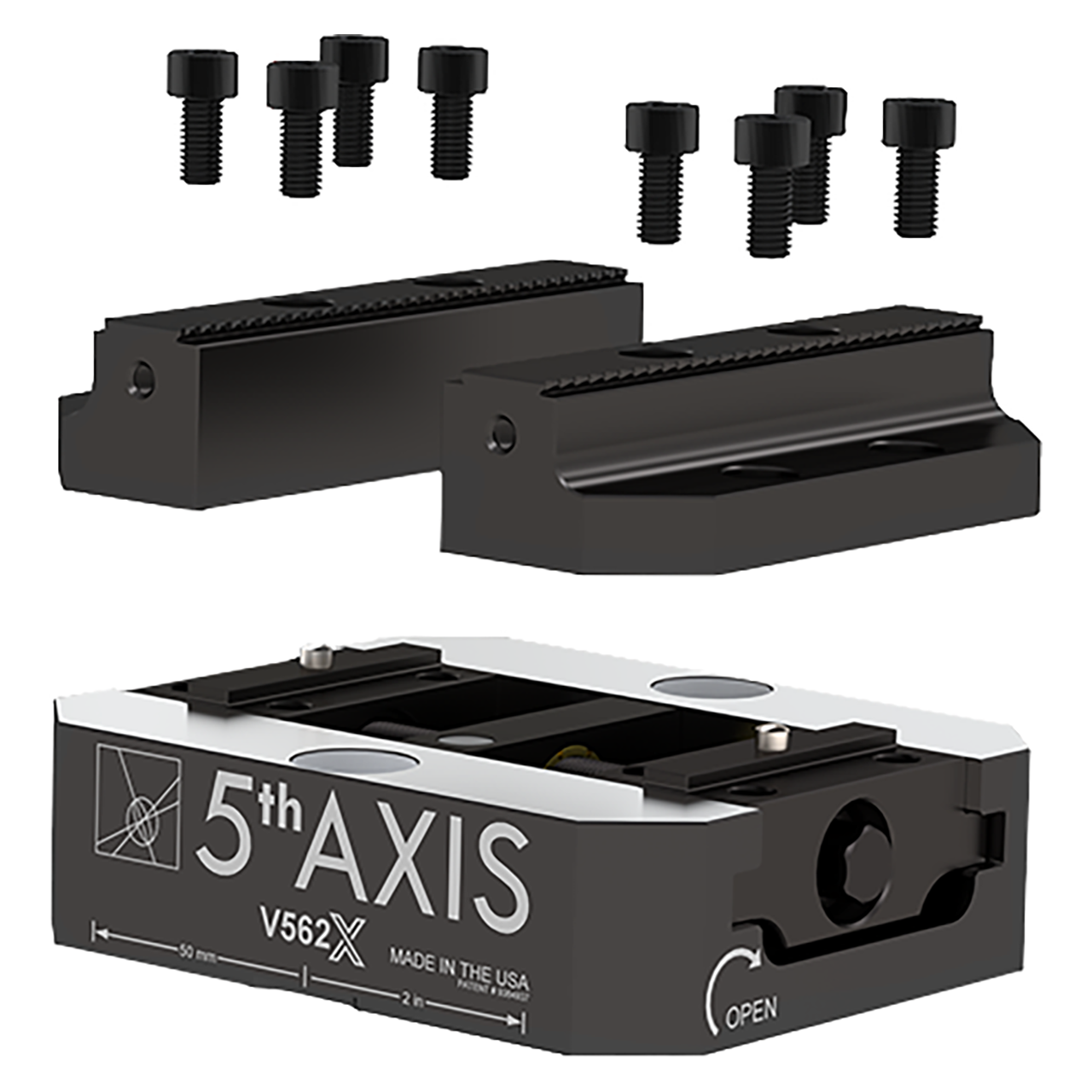

Features:
- New 4 bolt jaw mounting system to reduce jaw deflection
- Serrated gripper teeth for superior hold
- Reversible/quick-change jaws
- 45 Degree dovetail built into hard jaw
Product Specifications
| Size (mm) | 125.7mmx254mmx73.6mm |
| Jaw Width (mm) | 125.7mm |
| Clamping Force | 20.0 kN@100 Nm |
| Max Torque (Leadscrew) | 75 Nm |
| Max Torque (Jaw Bolt) | 47 Nm |
| Max Torque (Mounting Bolt) | 47 Nm |
| Clamping Range (Jaws Forward) | 8.3mm-78mm |
| Clamping Range (Jaws Reversed) | 60.3mm-128mm |
Technical Files
2D Drawing
Vise Dovetail Preparation
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
5th Axis
Width (Inch):
4-61/64"
Width (Decimal Inch):
4.9488"
Width (mm):
125.70mm
