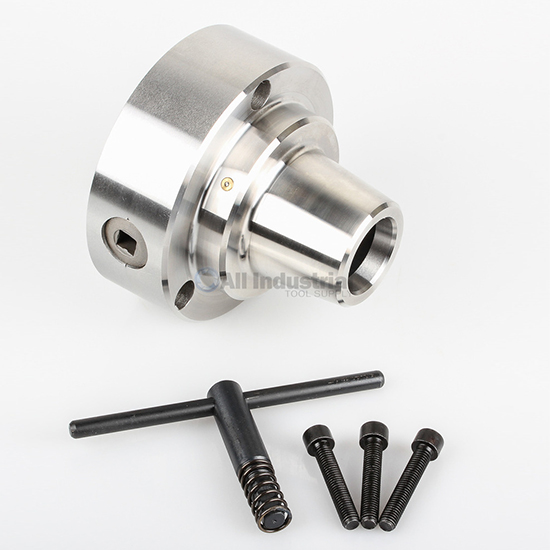

All Industrial 41210 | 5C Collet Chuck 5" Diameter Plain Back 5C Collets Lathe With Chuck Wrench

Description

The All Industrial 41210 5C collet chuck 5" plain back is a versatile, on-center workholding solution for production and toolroom lathes. This 5″ 5C collet chuck accepts 5C collets from 1/16" to 1-1/8", letting you clamp a wide range of part diameters with a single chuck. Its scroll-and-pinion mechanism operates like a 3-jaw lathe chuck for fast, concentric gripping while maintaining collet-style accuracy. Hardened, precision-machined scroll and pinion components ensure repeatable concentricity and long service life under cyclic loads. Rated to a maximum 6,000 RPM, the chuck is suitable for turning, facing, boring, grinding and light milling on center, matching diverse shop tasks. The plain-back format adapts to lathe spindles via a back plate (adapter), enabling simple integration with existing machines. At approximately 11 lbs, the chuck balances mass for stability without making handling or changeover cumbersome for operators. The design includes a chuck wrench for fast, reliable tightening and release of the 5C collets during setups and changeovers. Because it uses standard 5C collets, the chuck provides fine clamping resolution for small parts and repeatable setups in production runs. Its compatibility as a lathe chuck to 5C collet adapter option simplifies conversion of three-jaw setups to collet-style holding when needed. The All Industrial 41210 5C collet chuck for lathe reduces part runout versus improvised workholding, improving finish quality and tool life. Ideal for shops that run mixed batches, the chuck helps minimize changeover time and inventory of multiple proprietary chucks. Precision-machined interfaces and hardened components help maintain concentricity when performing grinding operations on centers. This 5C collet chuck is an economical choice for machinists seeking reliable on-center holding across many diameters and applications. Overall, the All Industrial 41210 provides a practical balance of accuracy, durability, and compatibility for everyday lathe work.

Product Features and Benefits

Wide Collet Capacity

Accepts 5C collets from 1/16" to 1-1/8", giving broad part-size flexibility with the All Industrial 41210 5C collet chuck 5″ plain back.

Scroll & Pinion Operation

Scroll-and-pinion action delivers rapid, 3-jaw-style actuation while preserving collet-level concentric accuracy for lathe operations.

Plain Back Adaptability

Plain back interface accepts a back plate (adapter) so the 5″ 5C collet chuck can mount to a variety of lathe spindles easily.

Hardened Precision Components

Precision-machined, hardened scroll and pinion reduce wear and maintain consistent runout over many cycles for production work.

Included Chuck Wrench

Supplied chuck wrench speeds collet changes and ensures secure clamping when using the 5C collet wrench with this chuck.

Frequently Asked Questions

What collet sizes does the All Industrial 41210 accept?

The All Industrial 41210 5C collet chuck accepts standard 5C collets ranging from 1/16" up to 1-1/8".

Can I use this chuck for grinding on centers?

Yes, the 5c collet chuck for lathe is suitable for grinding and finishing on center when mounted and balanced correctly.

How is the chuck mounted to a lathe spindle?

The 5" plain back design requires a back plate (adapter) to connect the chuck to your specific lathe spindle.

What is the maximum safe speed for this collet chuck?

The chuck is rated to a maximum of 6,000 RPM when used with appropriate collets and properly balanced setups.

Does the package include a wrench for collet tightening?

Yes, the All Industrial 41210 ships with a chuck wrench and is compatible with standard 5C collet wrench accessories for quick changes.
