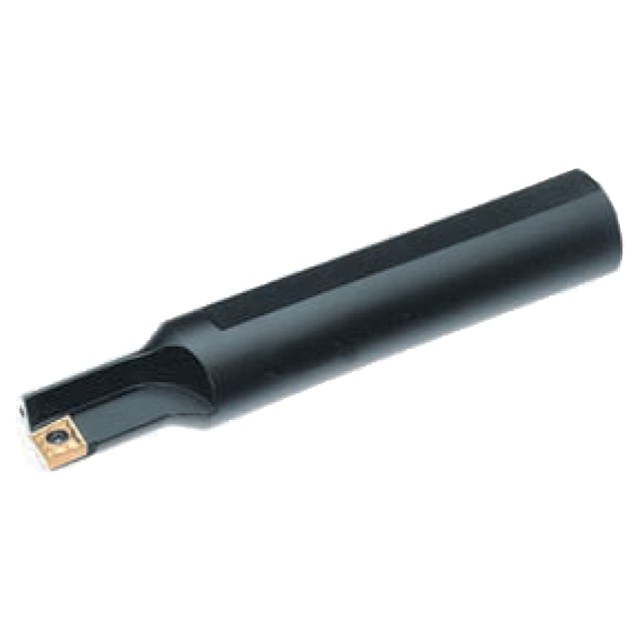

EcoCut can perform up to four operations with one tool. The EcoCut tool can be used for drilling, boring applications, facing operations and standard turning operations.
Features:
- Realize less programming, lower stock inventory, shorter set-up & cycle times and outstanding performance
Product Specifications
| # MFG | 11837891 |
| Cutting Width (mm) | 8mm |
| Length of Cut (mm) | 24mm |
| Length Type | 1.5XD |
| Minimum Diameter (mm) | 16.00mm |
| Overall Length (mm) | 125.00mm |
| Shank Diameter (mm) | 20.00mm |
| Series | EC 16 |
| Shank Type | Lathe |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Drill Style:
EC 16
Drill Diameter (Inch):
5/8"
Drill Diameter (Decimal Inch):
0.6299"
Drill Diameter (mm):
16.00mm
Maximum Drill Depth (Inch):
15/16"
Maximum Drill Depth (Decimal Inch):
0.9449"
Maximum Drill Depth (mm):
24.00mm
Shank Type:
Lathe
Cutting Direction:
Left
Drill Depth by Diameter Ratio:
1.5 x D
interval quantity:
1
