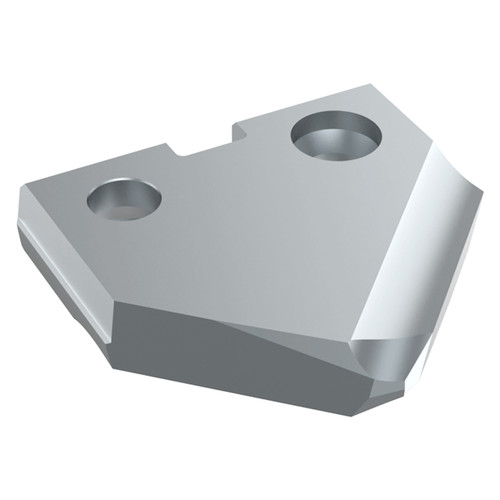

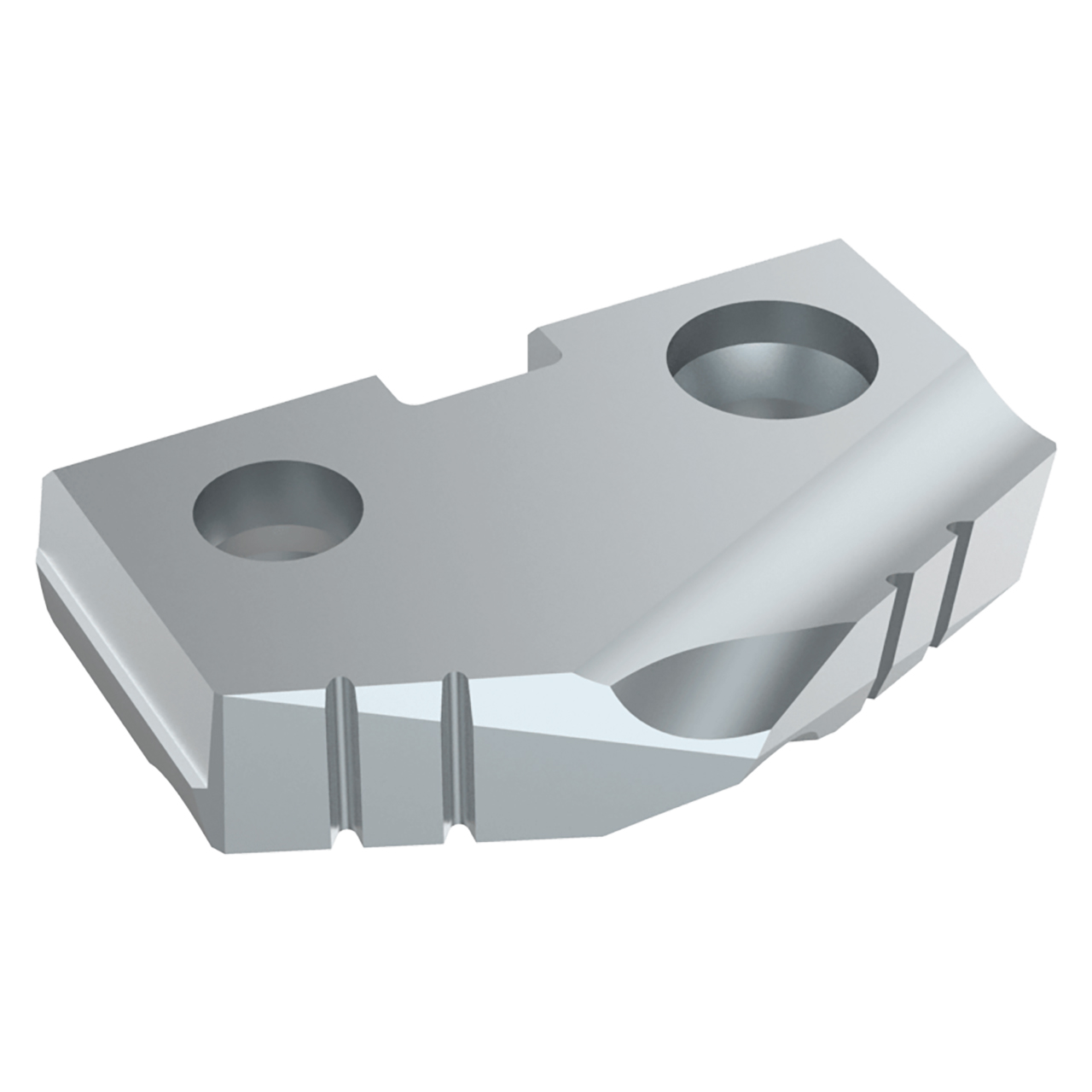

Allied Machine and Engineering 152N-28 | 28.00mm Diameter x 4.76mm Thickness 132 Degree Included Angle TiCN Coated Super Cobalt 2 Series Spade Drill Insert

SKU: 23040331 Weight: 0.03 LBS Minimum Purchase: 2 unit
UPC:
$58.75 $55.81
(You save $2.94)
Total Price: $55.81
Shipping: Calculated at Checkout

About This Item

Original T-A is an excellent choice for general purpose use. The design provides fast penetration rates that produce good hole size and finish. Standard geometry combines highly efficient and stable cutting action to minimize power consumption.

Features:

  • Corner clip allows for effective heat dispersion and increased tool life
  • Ground back location ensures accurate positioning
  • Self-centering point eliminates center drilling
  • Web thin reduces thrust and increases point strength allowing greater reliability

Product Specifications
# MFG152N-28
Diameter (Decimal Inch)1.1024"
Diameter (mm)28mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
Series2
Included Angle (Degree)132 Degree
CoatingTiCN
MaterialSuper Cobalt
