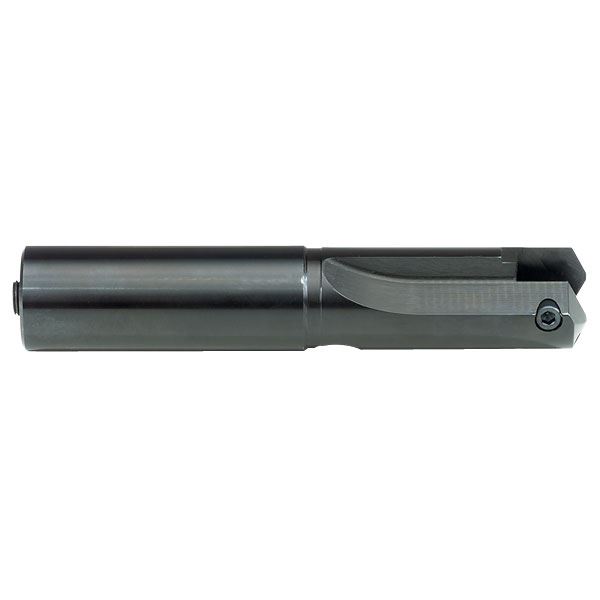

HP spade drills and Universal spade drills fit into the Universal holders.
Features:
- Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines
Product Specifications
| # MFG | 20811-1000 |
| Flute Length (Inch) | 7-3/4" |
| HP Reference Length (Inch) | 8" |
| Overall Length (Inch) | 11-1/4" |
| Shank length (Inch) | 3-1/2" |
| Maximum Diameter (Inch) | 1-3/8" |
| Minimum Diameter (Inch) | 31/32" |
| Shank Diameter (Inch) | 1" |
| Pipe Tap Side (Inch) | 1/8" |
| Series | A |
| Shank Type | Lathe |
| Flute Type | Straight |
| Length Type | Standard |
| Deep Hole | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
A
Minimum Drill Diameter (Inch):
31/32"
Minimum Drill Diameter (Decimal Inch):
0.9700"
Minimum Drill Diameter (mm):
24.61mm
Maximum Drill Diameter (Inch):
1-3/8"
Maximum Drill Diameter (Decimal Inch):
1.3800"
Maximum Drill Diameter (mm):
34.93mm
Shank Type:
Lathe
Overall Length (Inch):
11-1/4"
Overall Length (Decimal Inch):
11.2500"
Overall Length (mm):
285.75mm
Flute Type:
Straight
interval quantity:
1
