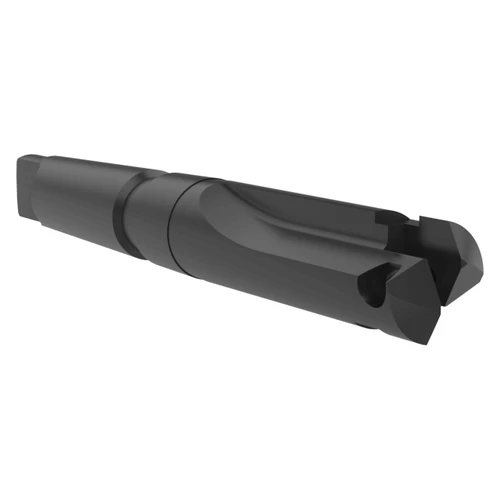

HP spade drills and Universal spade drills fit into the Universal holders.
Features:
- Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines
Product Specifications
| # MFG | 21631-0004 |
| Flute Length (Inch) | 4" |
| HP Reference Length (Inch) | 6-15/64" |
| Overall Length (Inch) | 10-9/16" |
| Shank length (Inch) | 4-7/8" |
| Maximum Diameter (Inch) | 2-3/8" |
| Minimum Diameter (Inch) | 1-1/2" |
| Shank Diameter (Inch) | #4 MT |
| Pipe Tap Side (Inch) | 1/4" |
| Series | C |
| Shank Type | Morse Taper |
| Flute Type | Straight |
| Length Type | Short |
| Deep Hole | No |
