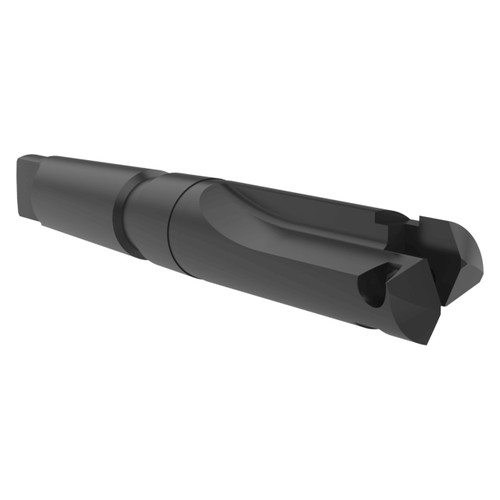

Allied Machine and Engineering 21821-0004 | 1-3/4" Diameter x 14-11/16" OAL B Series Indexable Spade Drill

$421.00 $378.90
(You save $42.10)
interval quantity:
1
SKU:
10004173
UPC:
Weight:
3.12 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

HP spade drills and Universal spade drills fit into the Universal holders.

Features:

  • Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines

Product Specifications
# MFG21821-0004
Flute Length (Inch)8-1/8"
HP Reference Length (Inch)10-11/32"
Overall Length (Inch)14-11/16"
Shank length (Inch)4-7/8"
Maximum Diameter (Inch)1-3/4"
Minimum Diameter (Inch)1-1/4"
Shank Diameter (Inch)#4 MT
Pipe Tap Side (Inch)1/4"
SeriesB
Shank TypeMorse Taper
Flute TypeStraight
Length TypeStandard
Deep HoleNo
