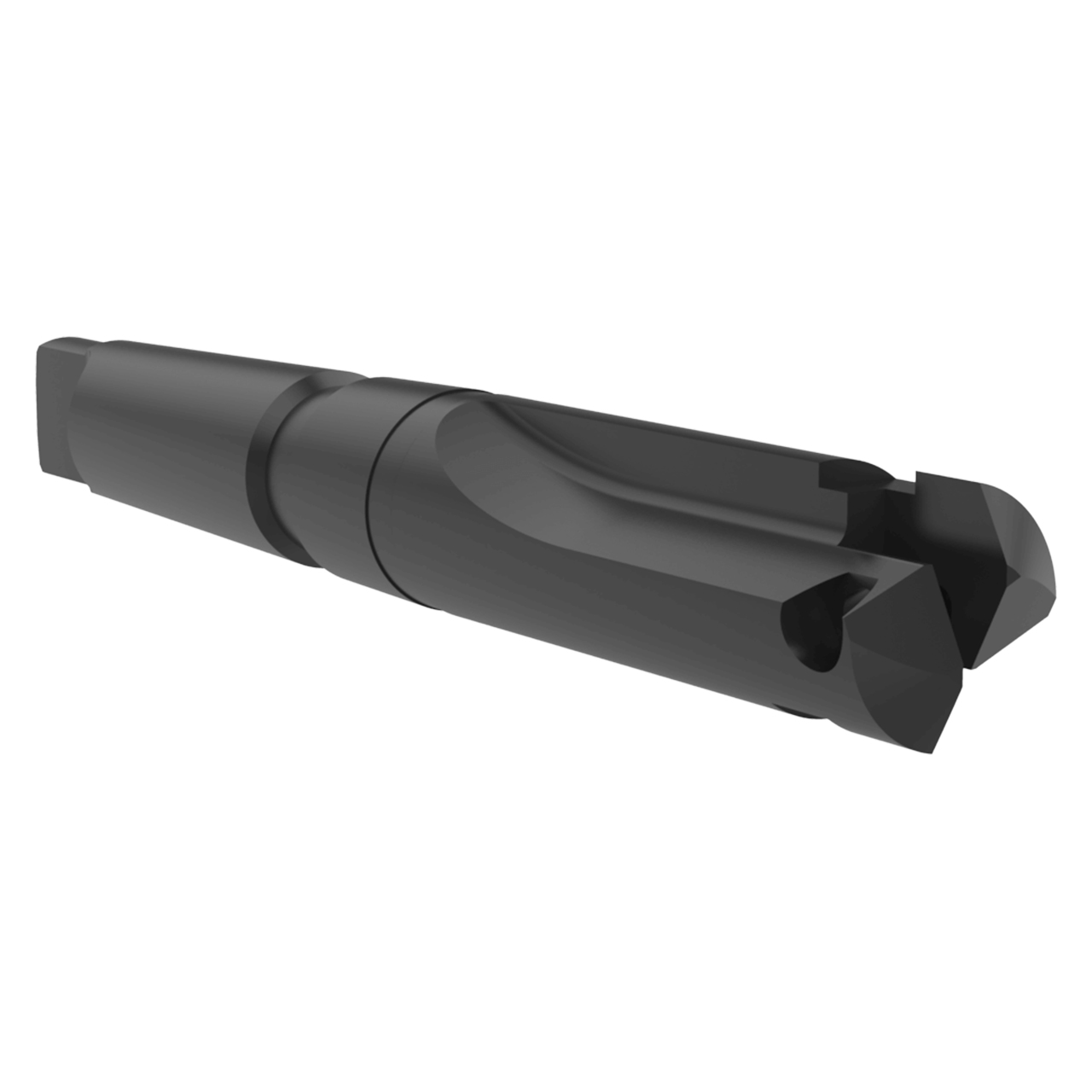

Allied Machine and Engineering 22271-0005 | 4-1/2" Diameter x 45-7/16" OAL G Series Indexable Spade Drill

$2,396.00 $2,156.40
(You save $239.60)
interval quantity:
1
SKU:
23036583
UPC:
Weight:
76.60 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

HP spade drills and Universal spade drills fit into the Universal holders.

Features:

  • Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines

Product Specifications
# MFG22271-0005
Flute Length (Inch)37"
HP Reference Length (Inch)40-11/32"
Overall Length (Inch)45-7/16"
Shank length (Inch)6-1/8"
Maximum Diameter (Inch)4-1/2"
Minimum Diameter (Inch)3-1/2"
Shank Diameter (Inch)#5 MT
Pipe Tap Side (Inch)1/2"
SeriesG
Shank TypeMorse Taper
Flute TypeStraight
Length TypeExtra Long
Deep HoleYes
