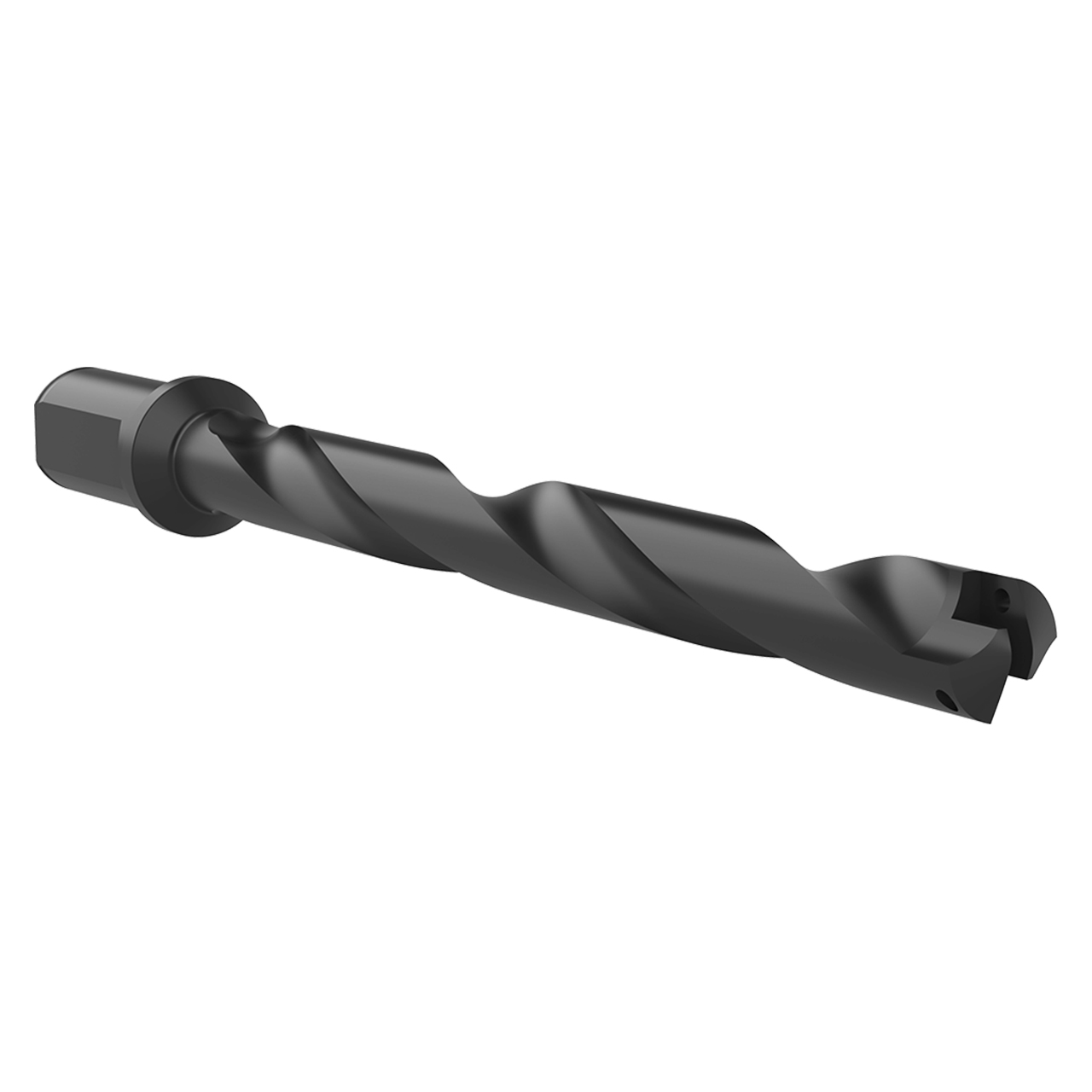

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 24520H-125F |
| Body Length (Inch) | 11-1/16" |
| Drill Depth (Inch) | 9-3/8" |
| Flute Type | Helical |
| Length Type | Standard + |
| Maximum Diameter (Inch) | 1-3/8" |
| Minimum Diameter (Inch) | 31/32" |
| Overall length (Inch) | 13-31/64" |
| Pipe Tap Rear (Inch) | 1/4" |
| Series | 2 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Length (Inch) | 2-9/32" |
| Shank Type | Flanged |
| Tool Reference Length (Inch) | 11-13/64" |
