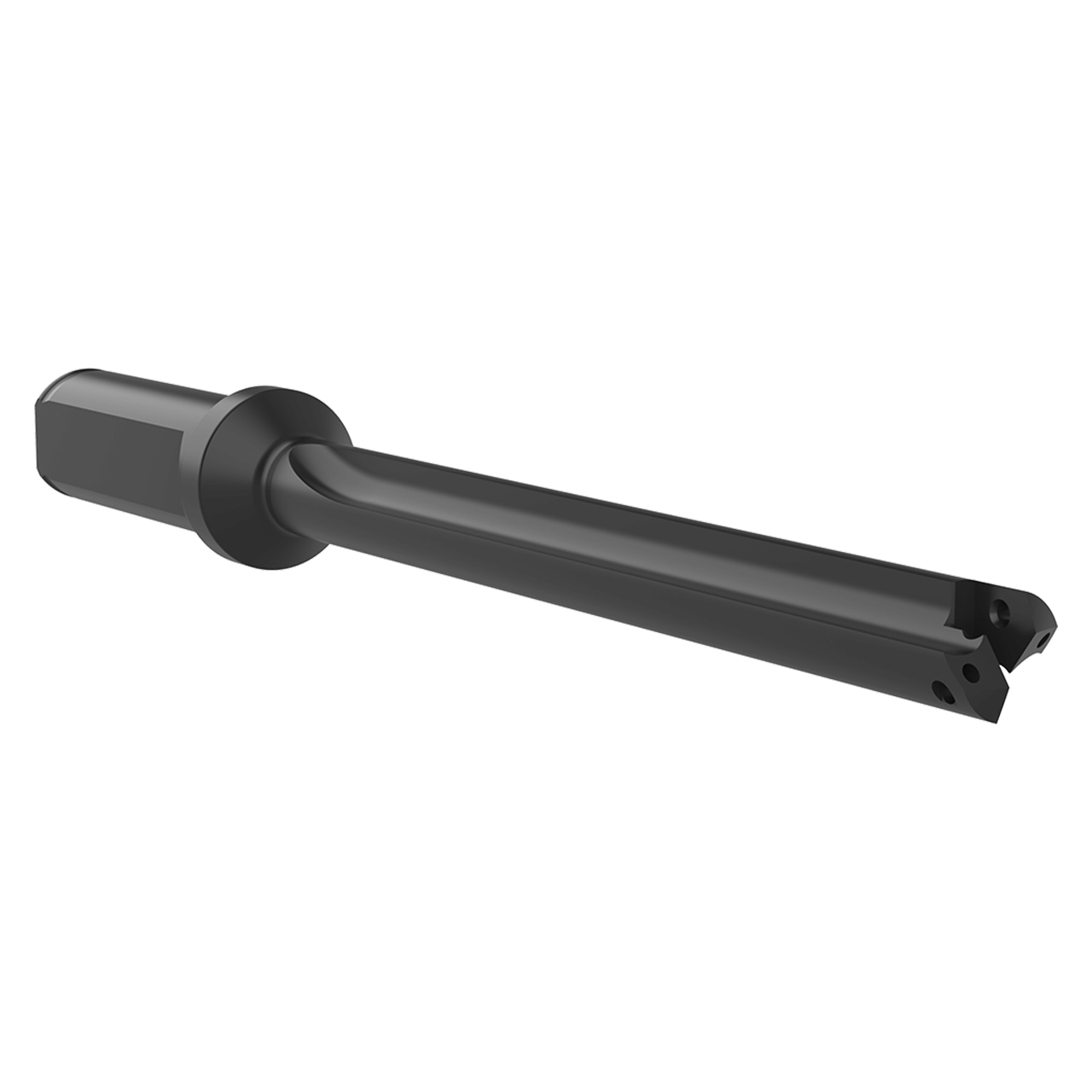

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 25000S-075F |
| Body Length (Inch) | 5-5/8" |
| Drill Depth (Inch) | 4-1/2" |
| Flute Type | Straight |
| Length Type | Extended |
| Maximum Diameter (Inch) | 11/16" |
| Minimum Diameter (Inch) | 33/64" |
| Overall length (Inch) | 7-21/32" |
| Pipe Tap Rear (Inch) | 1/8" |
| Series | 0 |
| Shank Diameter (Inch) | 3/4 |
| Shank Length (Inch) | 2-1/32" |
| Shank Type | Flanged |
| Tool Reference Length (Inch) | 5-47/64" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Minimum Drill Diameter (Inch):
33/64"
Minimum Drill Diameter (Decimal Inch):
0.5200"
Minimum Drill Diameter (mm):
13.10mm
Maximum Drill Diameter (Inch):
11/16"
Maximum Drill Diameter (Decimal Inch):
0.6900"
Maximum Drill Diameter (mm):
17.46mm
Shank Type:
Flanged
Flute Type:
Straight
